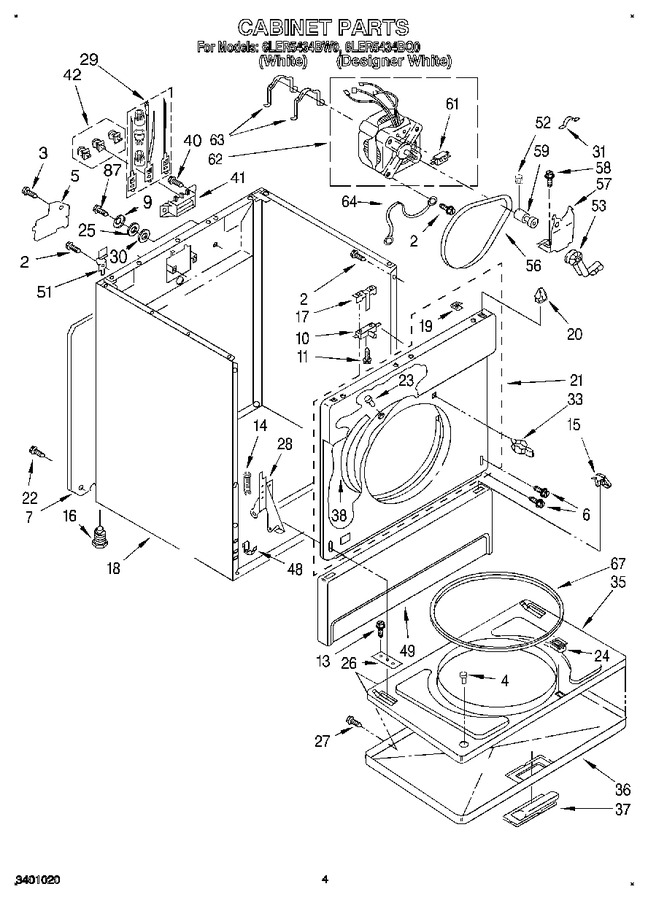

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
3	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
4	238614		Bumper				$ 84.79
5	W11736322		Cover, Terminal Block   (Replaces: 690893)		Appelez-nous	-
6	342043		Screw, 10-32 X 1/2		Appelez-nous	-
7	346368		Panel, Rear		Appelez-nous	-
9	3390443		Retainer, Terminal (brass)		Appelez-nous	-
10	W10820036		Switch, Door   (Replaces: 3391839)			Immediately	$ 30.50
11	3394052		Screw, 6-20 X 1-3/8 (2)		Appelez-nous	-
13	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
14	237979		Spring, Door (2)		Appelez-nous	-
15	WP3388229		Clip, Toe Panel (2)   (Replaces: 3388229)			Immediately	$ 8.45
16	49621		Foot (4)   (Replaces: 3392100)			Immediately	$ 8.55
17	WP691581		Lever, Door Switch   (Replaces: 691581)			Immediately	$ 8.49
18	3394109		Cabinet (white)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.96
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 13.31
21	338012		Panel Assembly, Upper Front (white)		Appelez-nous	-
22	WP489069		Screw, Hex Washer Head (7)   (Replaces: 693994)			Immediately	$ 8.40
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 23.55
24	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.89
25	3394074		Washer, Ground		Appelez-nous	-
26	W11252547		Clip, Hinge (2)   (Replaces: 337189)				$ 22.46
27	WP694091		Screw (6)   (Replaces: 694091)				$ 7.55
28	687905		Hinge, R.h.		Appelez-nous	-
28	687906		Hinge, L.h.		Appelez-nous	-
29	279318		Terminal, Tinned & Brass (3) (includes Illus. 42)			Immediately	$ 106.04
30	138479		Washer		Appelez-nous	-
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.64
33	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
35	695954		Door, Rear		Appelez-nous	-
36	348728		Door, Front (white)		Appelez-nous	-
37	WP348721		Handle, Door (white)   (Replaces: 3390781)				$ 81.78
38	279264		Seal & Bearing Assembly   (Replaces: 349464)			Immediately	$ 74.52
40	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
41	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
42	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 55.66
48	WP297092		Clip, Hinge (2)   (Replaces: 297092)			Immediately	$ 8.95
49	697095		Panel, Toe (white)		Appelez-nous	-
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 8.21
52	690046		Screw, Set		Appelez-nous	-
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
56	341241		Belt, Drive   (Replaces: 660996)			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 127.65
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 14.04
59	W11618508		Pulley, 50 Hz. (includes Item No. 52)   (Replaces: 685064)				$ 365.52
61	279827		Switch, Motor   (Replaces: 3388235)			Immediately	$ 191.95
62	W11618508		Motor Assembly, 50/60 Hz.   (Replaces: 685815)				$ 365.52
63	WP660658		(alt.)   (Replaces: 343481)				$ 8.22
63	WP660658		(alt.)   (Replaces: 685441)				$ 8.22
63	WP660658		Clip, Motor (2)   (Replaces: 660658)				$ 8.22
64	690236		Wire, Ground		Appelez-nous	-
67	WP3390733		Seal, Door   (Replaces: 3390733)			Immediately	$ 121.78
87	W10850756		Screw, 10-32 X 1/2 (grounding)   (Replaces: 697776)				$ 8.20
