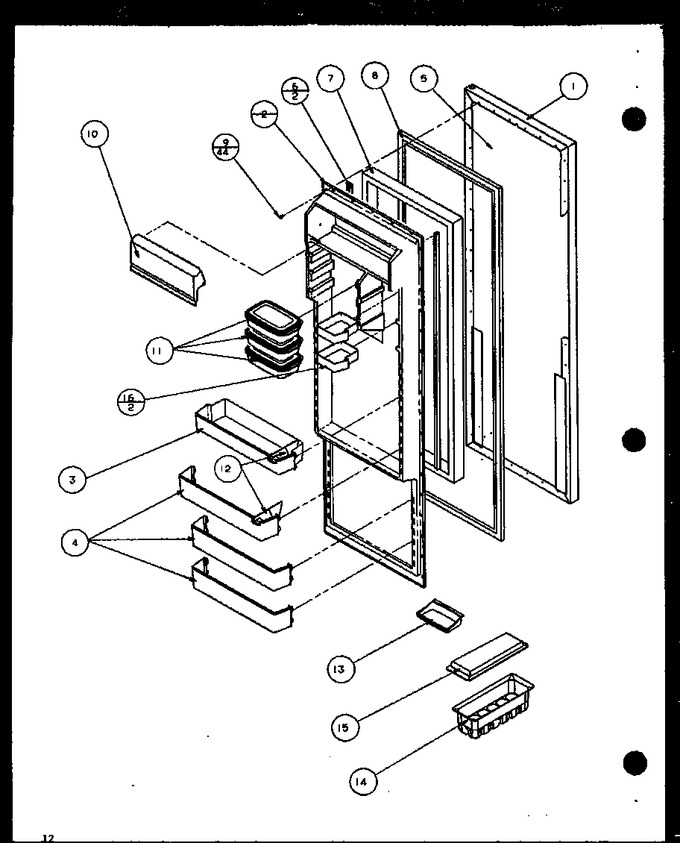

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7757920		Door Ref W		Appelez-nous	-
1	D7757921		Pan, Ref Dr, Gold		Appelez-nous	-
1	D7757922		Door Ref L		Appelez-nous	-
2	D7828302		Inner Door Liner Ref.		Appelez-nous	-
3	D7797102		Bucket, Ref Door		Appelez-nous	-
4	D7797002		Shelf Ref Door		Appelez-nous	-
5	B0566724		Insulation		Appelez-nous	-
6	C8987102		Seal, Door Dike		Appelez-nous	-
7	B0523562		Insul. By The Ft.		Appelez-nous	-
8	D7825206		Gasket, Door (w Ref)		Appelez-nous	-
9	M0219717		Screw		Appelez-nous	-
10	D7796902		Door Dairy		Appelez-nous	-
11	D7806402		Container Sec. Ser.		Appelez-nous	-
12	D7814601		Snugger, Door Shelf		Appelez-nous	-
13	D3799802		Butter Tray		Appelez-nous	-
14	D7695604		Egg Bucket		Appelez-nous	-
15	D7805901		Cover-bucket		Appelez-nous	-
16	D7803502		Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
