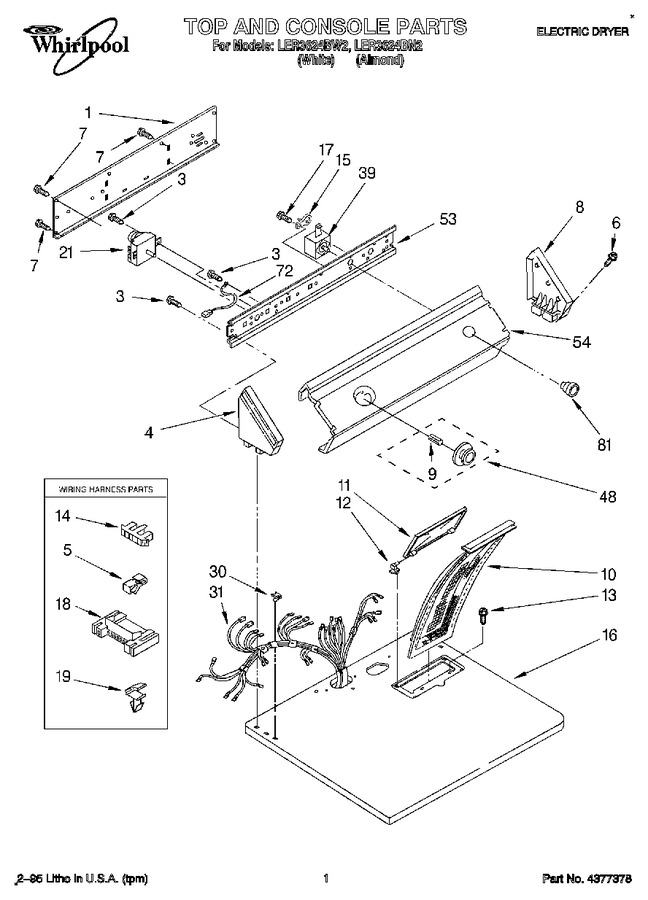

01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3397545 | Panel, Rear Console |
|
- | |||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 4 | 3358531 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 3358532 | Cap, End (l.h.) (almond) |
|
- | |||||
| 5 | 689180 | Clip, Retainer |
|
- | |||||
| 6 | WP388326 | Screw, Console (Replaces: 3353145) |
|
$ 9.29 | |||||
| 7 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 8 | 3358517 | Cap, End (r.h.) (almond) |
|
- | |||||
| 8 | 3358516 | Cap, End (r.h.) (white) |
|
- | |||||
| 9 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 8.11 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 15 | 279872 | Resistor (Replaces: 3388706) |
|
$ 78.69 | |||||
| 16 | 3396022 | Top (white) |
|
- | |||||
| 16 | 3396023 | Top (almond) |
|
- | |||||
| 17 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 18 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 19 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 21 | WP3976568 | Timer, 60 Hz. (Replaces: 3392250) |
|
Immediately | $ 382.06 | ||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 31 | 3399653 | Harness, Wiring |
|
- | |||||
| 39 | WP3395382 | Switch, Push-to-start (Replaces: 3395382) |
|
Immediately | $ 43.80 | ||||
| 48 | WP3957752 | Timer Knob Assembly (Replaces: 3396145) |
|
$ 56.66 | |||||
| 53 | 3396293 | Bracket, Control |
|
- | |||||
| 54 | 3397204 | Panel, Control (almond) |
|
- | |||||
| 54 | 3397203 | Panel, Control (white) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 81 | 3396160 | Knob, Push To Start |
|
- | |||||
| LIT3397597 | Instructions, Installation |
|
- | ||||||
| LIT677818 | Dryer |
|
- | ||||||
| LIT3401728 | Label, Wiring Diagram |
|
- | ||||||
