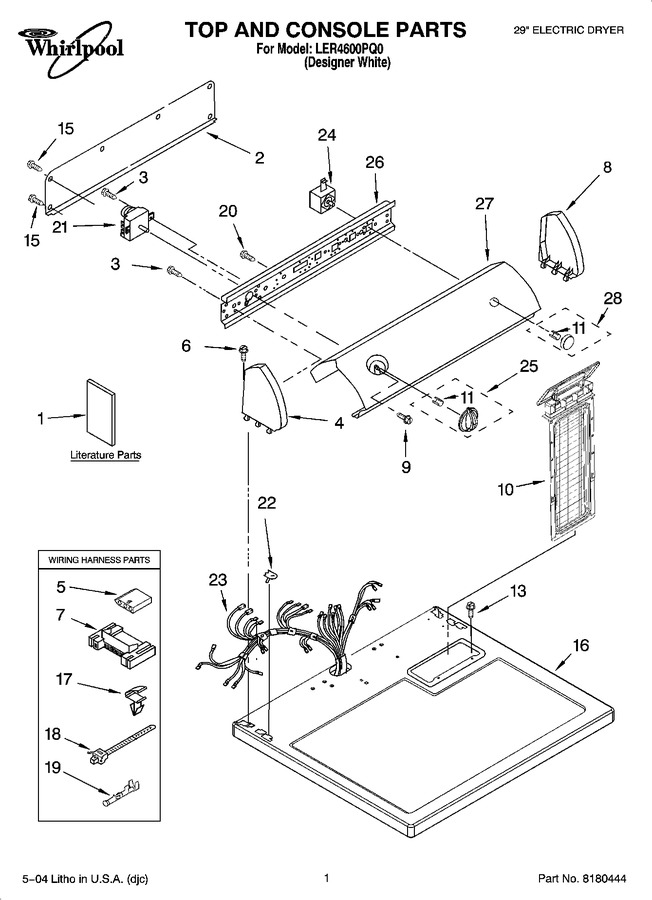

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8535829 | Installation Instructions |
|
- | |||||
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | N/A | Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | 8528187 | Wiring Diagram |
|
- | |||||
| 1 | 8522243 | Use & Care Guide |
|
- | |||||
| 1 | 8533770 | Sheet, Cycle Feature |
|
- | |||||
| 2 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 4 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 5 | 3936144 | Connector |
|
$ 21.22 | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 7 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 8 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 9 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.88 | |||||
| 10 | W10874409 | Screen, Lint (Replaces: 8557861) |
|
Immediately | $ 67.01 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 15 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | 8557930 | Top |
|
- | |||||
| 17 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 18 | 3391249 | Tie, Cable |
|
- | |||||
| 19 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 20 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 21 | WP8299778 | Timer, 60 Hz. (Replaces: 8299778) |
|
Immediately | $ 232.09 | ||||
| 22 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 23 | WPW10450292 | Harness, Wiring (Replaces: 8299867) |
|
$ 279.32 | |||||
| 24 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 25 | 8544955 | Timer Knob Assembly |
|
$ 41.86 | |||||
| 26 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 27 | 8545961 | Panel, Control |
|
- | |||||
| 28 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 28 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 28 | WP8544939 | Knob, Push-to-start (Replaces: 8544939) |
|
$ 52.44 | |||||
| 28 | N/A | Accessory Parts |
|
- | |||||
| 28 | 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 53.85 | ||||
| 28 | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 12.34 | |||||
| 28 | WP689790 | Dry Rack (Replaces: 689790) |
|
$ 60.22 | |||||
| 28 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 28 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- |
