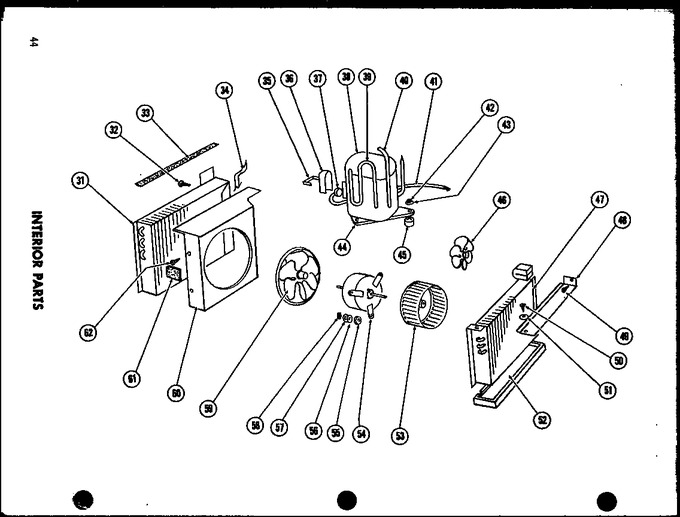

01 - Interior Parts


02 - Portable Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
39	B5197101		Tube Assembly, Suction, Evapor		Appelez-nous	-
40	B5196901		Tube, Disch, Preformed, Comp T		Appelez-nous	-
41	B5150301		Wiring Harness		Appelez-nous	-
42	A4538801		Sleeve, Compressor Mounting		Appelez-nous	-
43	M0283610		Nut		Appelez-nous	-
45	A4622801		Grommet		Appelez-nous	-
45	B5105101		Grommet		Appelez-nous	-
47	C5800201		Evaporator Assembly		Appelez-nous	-
48	C5806001		Cover, Evap.		Appelez-nous	-
49	W11233072		Use M0214931   (Replaces: M0211531)			Immediately	$ 14.72
50	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
52	D5438201		Filler Block		Appelez-nous	-
53	D5409401		Blower Wheel		Appelez-nous	-
54	C5847602		Motor Fan		Appelez-nous	-
54	M0102501		Clamp		Appelez-nous	-
54	B5157603		Motor		Appelez-nous	-
55	M0500501		Grommet		Appelez-nous	-
56	M0270519		Washer		Appelez-nous	-
57	M0270504		Washer		Appelez-nous	-
58	M0282009		Nut				$ 14.07
59	C5801401		Fan, Condenser		Appelez-nous	-
60	D5401301		Shroud Condenser		Appelez-nous	-
61	A4639501		Baffle, Condenser		Appelez-nous	-
62	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
	NOTE:		6p-5g/p54358-5r This Model Has An Alternate Fan Motor With Related Parts Changes.		Appelez-nous	-
NI	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
NI	M0255015		Sems Fastner		Appelez-nous	-
NI	M001105		Cable, Clip, Compressor Harnes		Appelez-nous	-
NI	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
NI	M0103901		Clamp		Appelez-nous	-
NI	B5177903		Gasket		Appelez-nous	-
NI	B5153601		Wire, Ground		Appelez-nous	-
NI	A3030325		Gasket, Closure Plate Flange,		Appelez-nous	-
NI	B4792206		Tie Brace		Appelez-nous	-
NI	M0310008		Plug Button		Appelez-nous	-
NI	B5107608		Gasket		Appelez-nous	-
NI	WP488130		Nut   (Replaces: M0282007)				$ 7.32
