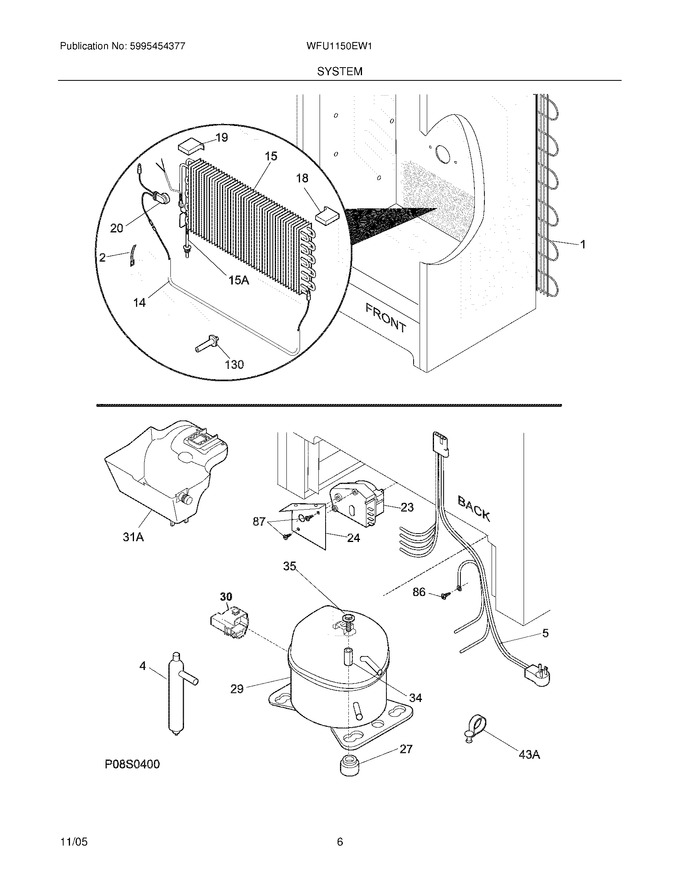

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 66.47 | ||||
| 14 | 5304496687 | Heater-defrost (Replaces: 216740000) |
|
$ 108.68 | |||||
| 15 | 297414800 | Evaporator (Replaces: 216737400) |
|
$ 161.44 | |||||
| 18 | 216727600 | Insulator-evap,styrofoam |
|
- | |||||
| 19 | 216727700 | Insulator-evap,styrofoam |
|
- | |||||
| 20 | 297216600 | Thermostat,defrost (Replaces: 216872200) |
|
Immediately | $ 30.58 | ||||
| 24 | 08016580 | Bracket |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 14.46 | |||||
| 34 | 5306594529 | Sleeve-compressor |
|
$ 10.34 | |||||
| 35 | 5303272328 | Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor |
|
$ 10.34 | |||||
| 86 | 216036600 | Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming |
|
- | |||||
| 87 | 08037849 | Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting |
|
$ 8.98 | |||||
| 130 | 216486800 | Support,evaporator Mtg |
|
- | |||||
| 15A | 297348500 | Heat Exchanger (Replaces: 216565700) |
|
$ 125.21 | |||||
| 23No. | 5304518034 | Timer-defrost (Replaces: 216744500) |
|
Immediately | $ 63.94 | ||||
| 31A | 216948700 | Pan-drain |
|
$ 49.93 | |||||
| 43A | 216629700 | Clip |
|
- | |||||
| F1 | 5300123788 | Condenser |
|
$ 706.44 | |||||
| F29 | 5304507765 | Compressor,assy ,w/electricals (Replaces: 297054400) |
|
Immediately | $ 752.48 | ||||
| F30 | 5304499966 | Relay Combo (Replaces: 297054500) |
|
$ 88.36 | |||||
| F4 | 5303305677 | Drier-filter (Replaces: 216938600) |
|
Immediately | $ 35.19 | ||||
| F5 | 297027000 | Harness-main |
|
- | |||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 12.05 | |||||
| NI | 297014500 | Plug-suction Line |
|
- |
