SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet System


07 - System

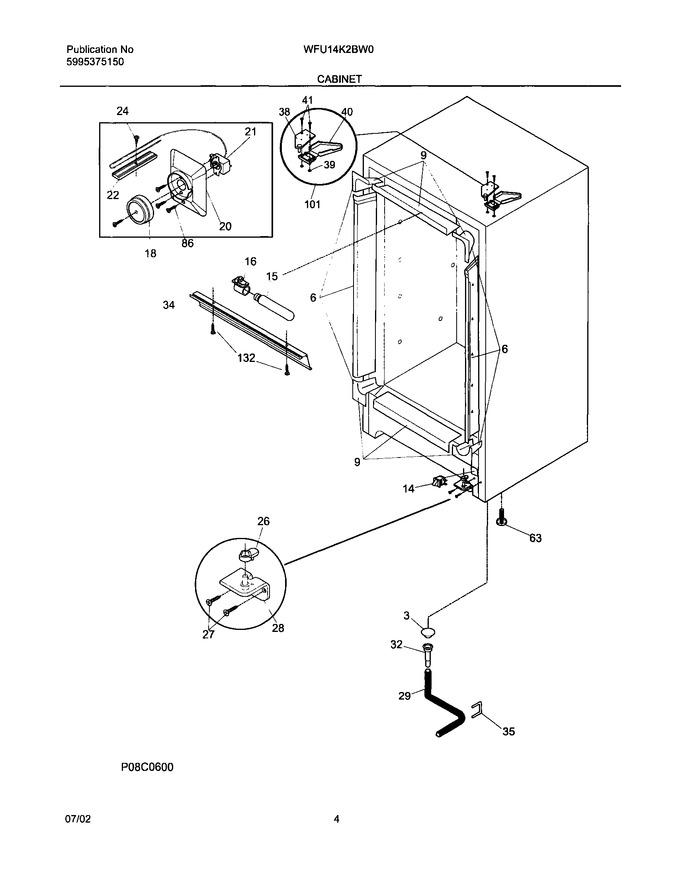

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior ,interior			Immediately	$ 19.28
6	216604300		Breaker Kit W/corners				$ 163.64
9	216603400		Breaker Kit W/corners,28`` ,top Or Bottom		Appelez-nous	-
14	216822900		Light/lamp, Ramp			Immediately	$ 77.96
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 81.18
16	297139501		Light/lamp,indicator   (Replaces: 216817600)				$ 21.69
18	216707200		Knob-control Cold				$ 49.00
20	216707300		Cover-control Housing		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp, Closer Door				$ 9.80
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 11.71
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 15.27
32	5304511843		Drain   (Replaces: 5308005500)				$ 15.27
34	216816201		Shield-light				$ 659.66
35	216273000		Clip, Drain Hose				$ 24.91
38	216808900		Hinge-upper				$ 92.87
39	5303294372		Nut Insert-hinge				$ 43.68
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 14.06
41	241710601		Screw   (Replaces: 5303001479)				$ 14.96
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
101	216835200		Kit-top Hinge				$ 50.99
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
F21	297216004		Control-temperature   (Replaces: 216788100)			Immediately	$ 59.47
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	216794908		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
