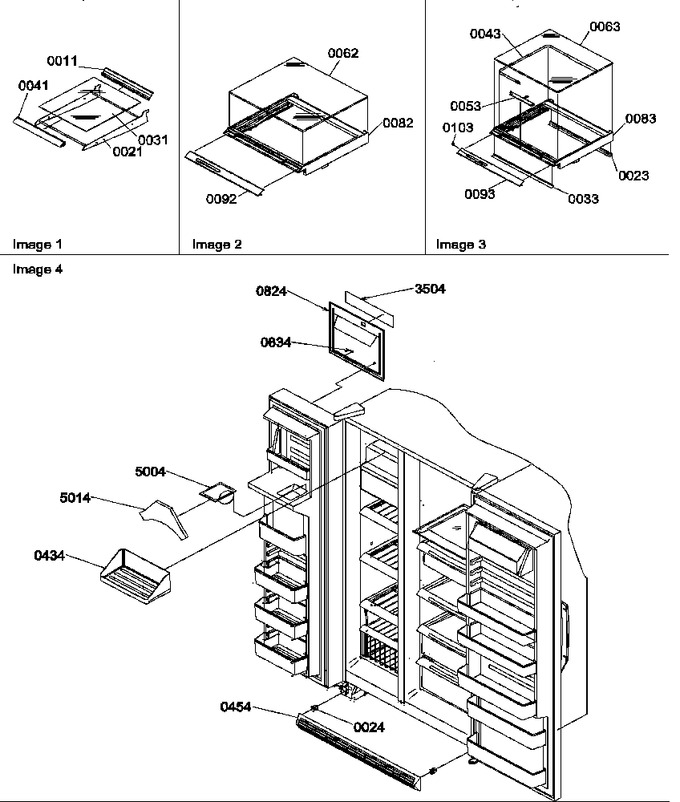

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10946006 | Extr-rear Shelf |
|
- | |||||
| 21 | 10875306 | Frame, Glass Shelf |
|
- | |||||
| 23 | D7718406 | Seal, Meat Pan |
|
- | |||||
| 24 | M0117302 | Clip, Grille |
|
- | |||||
| 31 | 10370064 | Glass-shelf |
|
- | |||||
| 33 | 10523401 | Seal, Crisper Front |
|
- | |||||
| 41 | 10459910 | Extr., Shelf Frt |
|
- | |||||
| 43 | 10882901 | Band, Crisper |
|
- | |||||
| 53 | D7860603 | Slide |
|
- | |||||
| 62 | 10370030 | Glass Shelf |
|
- | |||||
| 63 | 10370027 | Glass Shelf |
|
- | |||||
| 82 | 10469608 | Frame, Crisper |
|
- | |||||
| 83 | 10469609 | Frame, Crisper |
|
- | |||||
| 92 | 10873909 | Trim-crisp Front |
|
- | |||||
| 93 | 10873914 | Trim-crisp Fr |
|
- | |||||
| 103 | 10038402 | Knob - Crisper |
|
- | |||||
| 434 | 10870801 | Shelf, Ice Cream |
|
- | |||||
| 454 | 10470302 | Assy, Toe Grille (white) |
|
- | |||||
| 824 | 10810801 | Facade-w Disp. |
|
- | |||||
| 834 | 12043801 | Cap-silver Switch |
|
- | |||||
| 3504 | 12188104 | Insert, Facade |
|
- | |||||
| 5004 | 10504101 | Chute, Ice |
|
- | |||||
| 5014 | 12044501 | Gasket-ice Chute |
|
- |
