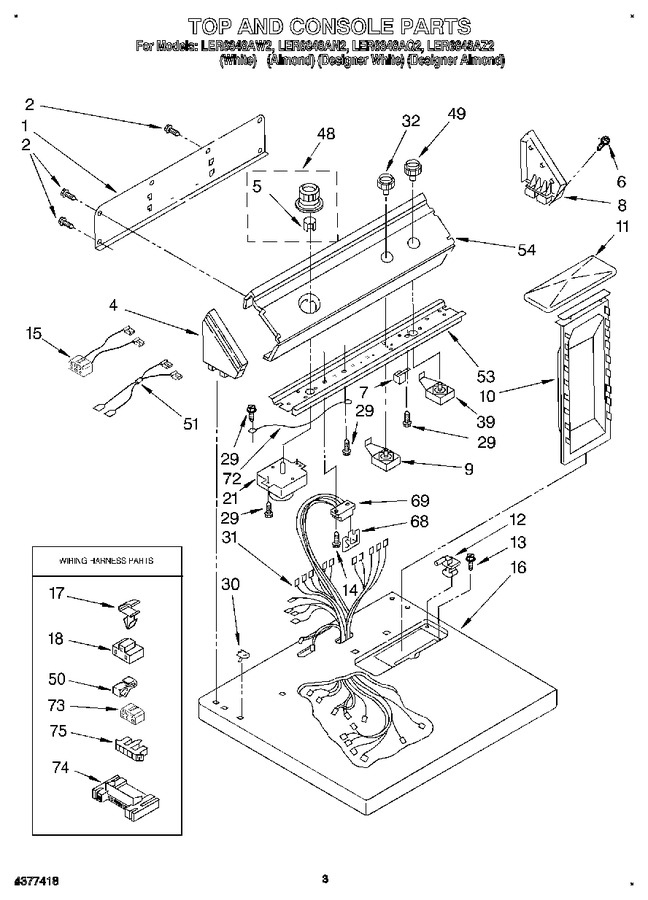

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	3358531		Cap, End (l.h.) (white)		Appelez-nous	-
4	3358532		Cap, End (l.h.) (almond)		Appelez-nous	-
5	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
6	WP388326		Screw, Console   (Replaces: 3353145)				$ 9.29
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	3358516		Cap, End (r.h.) (white)		Appelez-nous	-
8	3358517		Cap, End (r.h.) (almond)		Appelez-nous	-
9	WP3399639		Switch, Temperature   (Replaces: 3396013)				$ 131.16
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 8.11
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 8.11
13	W11693756		Screw, 8-15 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
15	8539893		Wire-jumper Assembly   (Replaces: 3396029)				$ 19.78
16	3396022		Top (white)		Appelez-nous	-
16	3396023		Top (almond)		Appelez-nous	-
17	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
18	3401144		Connector (relay/buzzer)				$ 12.81
21	WP3397273		Timer, 60 Hz.   (Replaces: 3397273)				$ 320.44
29	WPW10139210		Screw, Mounting (8-18 X 5/16)   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	3401635		Harness, Wiring		Appelez-nous	-
32	WP3957796		For Model Ler6848aq2   (Replaces: 3358435)			Immediately	$ 57.57
32	WP8538957		Knob, Temperature Control   (Replaces: 3358431)				$ 58.53
32	3950760		For Model Ler6848az2   (Replaces: 3358436)		Appelez-nous	-
39	WP3398094		Relay, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
48	3957753		For Model Ler6848az2   (Replaces: 3396149)		Appelez-nous	-
48	WP3957752		Timer Knob Assembly   (Replaces: 3396145)				$ 56.66
48	WP3957752		For Model Ler6848aq2   (Replaces: 3396146)				$ 56.66
49	WP3957800		For Model Ler6848az2   (Replaces: 3396164)				$ 52.92
49	3396160		Knob, Push To Start		Appelez-nous	-
49	WP3957800		For Model Ler6848aq2   (Replaces: 3396161)				$ 52.92
50	689180		Clip, Retainer		Appelez-nous	-
51	3396033		Wire, Jumper (signal Bypass)		Appelez-nous	-
53	3396293		Bracket, Control		Appelez-nous	-
54	3399025		Panel, Control For Model (lgr6848az2)		Appelez-nous	-
54	3399024		Panel, Control For Models (ler6848aq2)		Appelez-nous	-
54	3399018		Panel, Control For Models (ler6848an2)		Appelez-nous	-
54	3399017		Panel, Control For Models (ler6848aw2)		Appelez-nous	-
68	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 329.93
69	3391885		Connector, Edge				$ 90.72
72	690853		Wire, Ground		Appelez-nous	-
73	3347243		Connector 6-circuit		Appelez-nous	-
74	3395683		Connector (motor)			Immediately	$ 54.45
75	3397269		Timer Block				$ 25.55
	LIT3401083		Guide, Use & Care		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	LIT3401725		Label, Wiring Diagram		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	LIT3397597		Instructions, Installation		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
