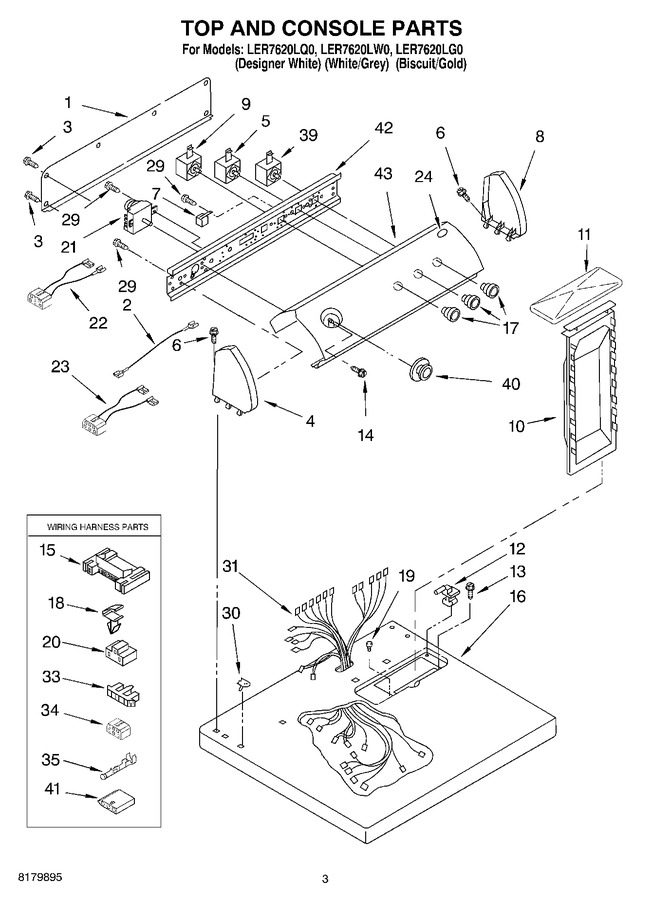

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 2 | 3401684 | Wire, Jumper (black) |
|
$ 34.57 | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | 8271365 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 8271368 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 5 | WP3405156 | Switch, Wrinkle Shield (Replaces: 3405156) |
|
$ 152.79 | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 8 | 8271359 | Cap, End (r.h.) (white) |
|
- | |||||
| 8 | 8271362 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 9 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
$ 131.16 | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 8283380 | Cover, Lint Screen (biscuit) |
|
- | |||||
| 11 | 8283378 | Cover, Lint Screen (white) |
|
$ 44.80 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 3400859 | Screw, Grounding |
|
$ 13.88 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | 8271392 | Top (biscuit) |
|
- | |||||
| 16 | 8271390 | Top (white) |
|
- | |||||
| 17 | WP8538957 | Knob, Control (3) (ler7620lw0) (Replaces: 8316540) |
|
$ 58.53 | |||||
| 17 | WP3957799 | Knob, Control (3) (ler7620lq0) (Replaces: 8271339) |
|
$ 55.06 | |||||
| 17 | 8316545 | Knob, Control (3) (ler7620lg0) |
|
- | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 19 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 20 | 3401144 | Connector, (pts Relay) |
|
$ 12.81 | |||||
| 21 | WP3979618 | Timer, 60 Hz. (Replaces: 3979618) |
|
$ 385.28 | |||||
| 22 | 3397695 | Wire, Jumper (guard On/off) |
|
$ 90.72 | |||||
| 23 | 8539893 | Wire, Jumper (temperature) (Replaces: 3396029) |
|
$ 19.78 | |||||
| 24 | 3955775 | Medallion |
|
- | |||||
| 29 | WPW10139210 | Screw, Mounting (8-18 X 5/16) (Replaces: 3390646) |
|
$ 8.03 | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 31 | 8299873 | Harness, Wiring |
|
- | |||||
| 33 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 34 | 3347243 | Connector 6-circuit |
|
- | |||||
| 35 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 39 | WP3398095 | Switch, Push-to-start (Replaces: 3398095) |
|
Immediately | $ 92.88 | ||||
| 40 | WP3957754 | Timer Knob Assembly (ler7620lq0) (Replaces: 8312687) |
|
$ 62.86 | |||||
| 40 | 8316549 | Timer Knob Assembly (ler7620lg0) |
|
- | |||||
| 40 | WP8557455 | Timer Knob Assembly (ler7620lw0) (Replaces: 8316538) |
|
$ 59.61 | |||||
| 41 | 3936144 | Connector |
|
$ 21.22 | |||||
| 42 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 43 | 8532616 | Panel, Control (includes Illus. 24) (gold) |
|
- | |||||
| 43 | 8532614 | Panel, Control (includes Illus. 24) (white) |
|
- | |||||
| 43 | 8532615 | Panel, Control (includes Illus. 24) (grey) |
|
- |
