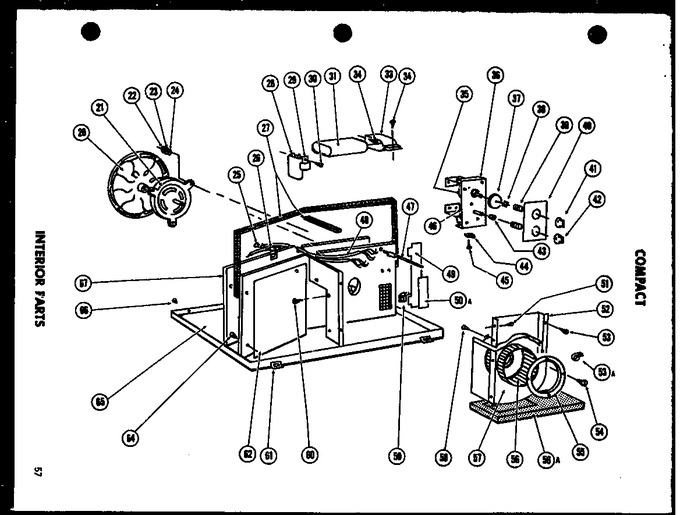

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	D5466101		Fan Blade		Appelez-nous	-
21	C5298802		Motor Fan		Appelez-nous	-
22	M0282009		Nut				$ 14.07
23	M0270504		Washer		Appelez-nous	-
23	M0270529		Washer		Appelez-nous	-
23	M0270519		Washer		Appelez-nous	-
24	M0500501		Grommet		Appelez-nous	-
27	A3030302		Gasket		Appelez-nous	-
28	C5825010		Capacitor, Fan Motor Run, 5 M.		Appelez-nous	-
29	B4150102		Clamp		Appelez-nous	-
30	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
31	C5825016		Capacitor, Comp. Run, 15 Mfd.,		Appelez-nous	-
33	B4762302		Capacitor Strap		Appelez-nous	-
34	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
35	B4170306		Switch		Appelez-nous	-
36	C5298302		Control Bracket		Appelez-nous	-
37	C5211801		Cam		Appelez-nous	-
38	M0287706		Nut		Appelez-nous	-
39	A4663603		Spring		Appelez-nous	-
40	C5885001		Escutcheon-control		Appelez-nous	-
41	D7009805		Knob K		Appelez-nous	-
42	D7009806		Knob		Appelez-nous	-
43	A3073601		Bushing		Appelez-nous	-
44	M0103901		Clamp		Appelez-nous	-
45	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
46	B4795202		Thermostat		Appelez-nous	-
47	A4608604		Rod-damper Door		Appelez-nous	-
48	B5164201		Wiring Harness		Appelez-nous	-
49	B5131401		Wldmt,damper Door		Appelez-nous	-
50	B4778001		Spring		Appelez-nous	-
50	B5107609		Gasket		Appelez-nous	-
51	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
52	C5298201		Shield		Appelez-nous	-
53	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
53	M0102702		Clamp		Appelez-nous	-
54	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
55	C5259201		Inlet Ring		Appelez-nous	-
56	C5877501		Blower Wheel		Appelez-nous	-
56	C5258002		Filler Block		Appelez-nous	-
57	D5351201		Weld Evap Scroll		Appelez-nous	-
58	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
60	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
61	A4573601		Support		Appelez-nous	-
62	A4600901		Insulation		Appelez-nous	-
64	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
65	D5413010		Base Pan Weldment Assembly		Appelez-nous	-
66	B5100401		Grommet		Appelez-nous	-
67	D5376601		Insulation		Appelez-nous	-
NI	M0102303		Clamp		Appelez-nous	-
NI	A3032601		Rivet Plastic		Appelez-nous	-
NI	M0232012		Screw		Appelez-nous	-
NI	YM0115901		Clip, Knob Mounting		Appelez-nous	-
NI	A3030307		Gasket		Appelez-nous	-
NI	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
NI	B5107608		Gasket		Appelez-nous	-
NI	M0289601		Palnut		Appelez-nous	-
NI	A4624301		Retainer		Appelez-nous	-
NI	M0114001		Speed Clip		Appelez-nous	-
NI	B5126201		Baffle		Appelez-nous	-
NI	A4597701		Oil Tube		Appelez-nous	-
NI	A3023301		Grommet		Appelez-nous	-
