01 - Compressor Parts


02 - Cool Parts

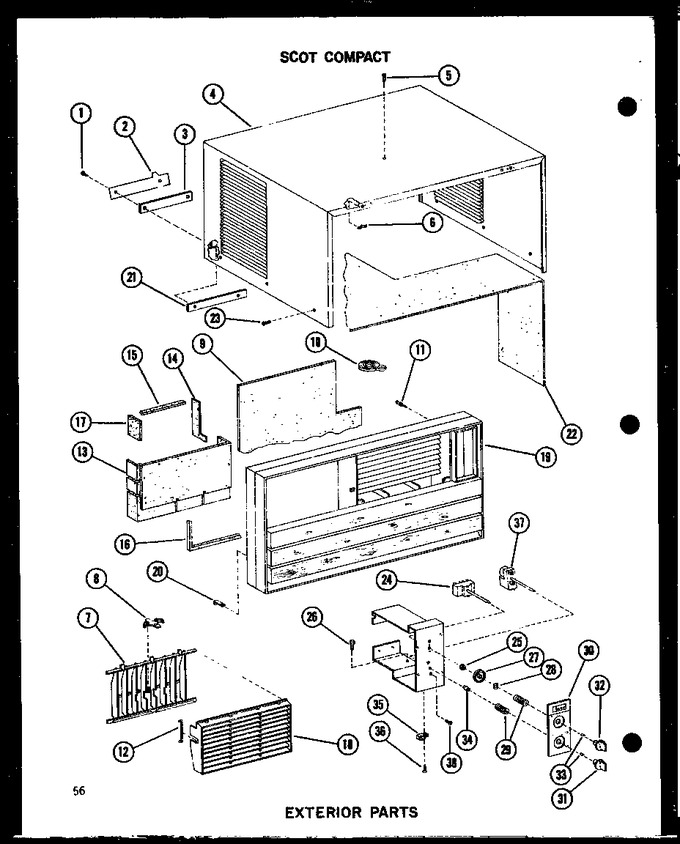

03 - Exterior Parts


04 - Instant Mount-factory Installed


05 - Interior Parts


06 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0211517		Screw		Appelez-nous	-
2	B4115501		Nameplate		Appelez-nous	-
3	A4085001		Backer Plate		Appelez-nous	-
4	C5814803		Outer Case Wld		Appelez-nous	-
5	M0219233		Screw		Appelez-nous	-
6	M0100306		Clip		Appelez-nous	-
7	D5432801		Air Deflector Vert		Appelez-nous	-
8	B5183001		Slide		Appelez-nous	-
9	B5183301		Filter, Air Inlet		Appelez-nous	-
10	A4542805		Retainer		Appelez-nous	-
11	A4680401		Strike		Appelez-nous	-
12	M0117501		Spring Tension		Appelez-nous	-
13	D5444901		Insulation		Appelez-nous	-
14	A4672601		Gasket		Appelez-nous	-
15	A4672501		Gasket		Appelez-nous	-
16	A4672503		Gasket		Appelez-nous	-
17	A4672701		Gasket		Appelez-nous	-
18	D5432706		Horizontal Louver Box Assembly		Appelez-nous	-
19	D5432906		Cabinet Front Assembly, Comple		Appelez-nous	-
19	D5432609		Frame Only, Cabinet Front		Appelez-nous	-
20	A4564801		Hook		Appelez-nous	-
21	A4588701		Tap Strip		Appelez-nous	-
22	C5889301		Insulation		Appelez-nous	-
23	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
24	B4170306		Switch		Appelez-nous	-
25	M0289601		Palnut		Appelez-nous	-
26	C5298302		Control Bracket		Appelez-nous	-
27	C5211801		Cam		Appelez-nous	-
28	M0287706		Nut		Appelez-nous	-
29	A4663603		Spring		Appelez-nous	-
30	C5885001		Escutcheon-control		Appelez-nous	-
31	D7009805		Knob K		Appelez-nous	-
32	D7009806		Knob		Appelez-nous	-
33	YM0115901		Clip, Knob Mounting		Appelez-nous	-
34	A3073601		Bushing		Appelez-nous	-
35	M0103901		Clamp		Appelez-nous	-
36	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
37	B4795202		Thermostat		Appelez-nous	-
38	M0232012		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
