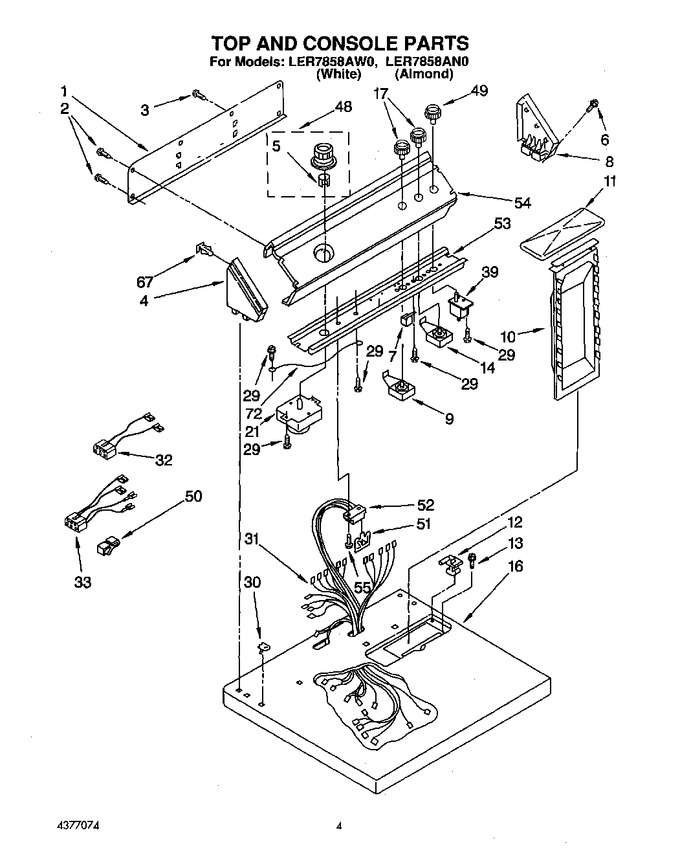

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3397545 | Panel, Rear Console |
|
- | |||||
| 2 | WP489069 | Screw, Hex Head (Replaces: 693994) |
|
Immediately | $ 7.86 | ||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 3358532 | Cap, End (l.h.) (almond) |
|
- | |||||
| 4 | 3358531 | Cap, End (l.h.) (white) |
|
- | |||||
| 5 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 6 | WP388326 | Screw, Console (Replaces: 3353145) |
|
$ 8.11 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 8 | 3358516 | Cap, End (r.h.) (white) |
|
- | |||||
| 8 | 3358517 | Cap, End (r.h.) (almond) |
|
- | |||||
| 9 | WP3399640 | Switch, Temperature (Replaces: 3396014) |
|
$ 129.76 | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 7.72 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-15 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 3396011 | Switch, Finish Guard |
|
- | |||||
| 16 | 3396022 | Top (white) |
|
- | |||||
| 16 | 3396023 | Top (almond) |
|
- | |||||
| 17 | WP8538957 | Knob, Control (Replaces: 3358431) |
|
$ 55.74 | |||||
| 21 | WP3397273 | Timer, 60 Hz. (Replaces: 3397273) |
|
$ 305.18 | |||||
| 29 | WPW10139210 | Screw, Mounting (8-18 X 5/16) (Replaces: 3390646) |
|
$ 7.50 | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 31 | 3396233 | Harness, Wiring |
|
- | |||||
| 32 | 3396030 | Wire, Jumper (temperature) |
|
- | |||||
| 33 | 3396031 | Wire, Jumper (guard/signal) |
|
- | |||||
| 39 | 3395395 | Switch, Push-to-start |
|
$ 120.62 | |||||
| 48 | WP3957752 | Timer Knob Assembly (Replaces: 3396145) |
|
$ 53.96 | |||||
| 49 | 3396160 | Knob, Push To Start |
|
- | |||||
| 50 | 689180 | Clip, Retainer |
|
- | |||||
| 51 | WPW10476828 | Control, Electronic (Replaces: 3390537) |
|
Immediately | $ 314.22 | ||||
| 52 | 3391885 | Connector, Edge |
|
$ 86.40 | |||||
| 53 | 3396293 | Bracket, Control |
|
- | |||||
| 54 | 3397183 | Panel, Control (almond) |
|
- | |||||
| 54 | 3397182 | Panel, Control (white) |
|
- | |||||
| 55 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 67 | 689559 | Nut, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| LIT3396297 | Guide, Use & Care |
|
- | ||||||
| LIT677818 | Dryer |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| LIT4377074 | List, Service Parts |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| LIT3397597 | Instructions, Installation |
|
- | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- |
