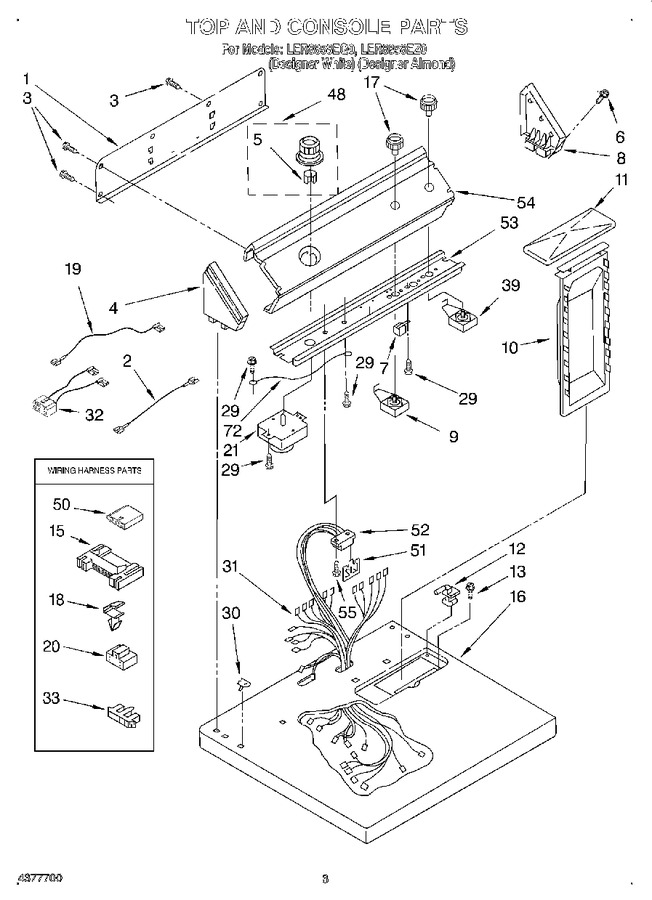

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
2	3401684		Wire, Jumper (black)				$ 34.57
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	3358528		Cap, End (l.h.) (white)		Appelez-nous	-
4	3358529		Cap, End (l.h.) (almond)		Appelez-nous	-
5	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
8	3358514		Cap, End (r.h.) (almond)		Appelez-nous	-
8	3358513		Cap, End (r.h.) (white)		Appelez-nous	-
9	WP3399640		Switch, Temperature   (Replaces: 3399640)				$ 129.76
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 7.72
13	W11693756		Screw, 8-15 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
15	3395683		Connector (motor)			Immediately	$ 51.86
16	3396022		Top (white)		Appelez-nous	-
16	3396023		Top (almond)		Appelez-nous	-
17	3950760		Knob, Control (2) (almond)   (Replaces: 3358436)		Appelez-nous	-
17	WP3957796		Knob, Control (2) (white)   (Replaces: 3358435)			Immediately	$ 54.83
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
19	3401671		Wire, Jumper (white)		Appelez-nous	-
20	3401144		Connector, (pts Relay)				$ 12.20
21	WP3397273		Timer, 60 Hz.   (Replaces: 3397273)				$ 305.18
29	WPW10139210		Screw, Mounting (8-18 X 5/16)   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	3405136		Harness, Wiring		Appelez-nous	-
32	3396030		Wire, Jumper (temperature)		Appelez-nous	-
33	3397269		Connector, Timer				$ 25.55
39	WP3398095		Relay, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
48	3957753		Timer Knob Assembly (almond)   (Replaces: 3396149)		Appelez-nous	-
48	WP3957752		Timer Knob Assembly (white)   (Replaces: 3396146)				$ 53.96
50	353425		Connector (door Switch)		Appelez-nous	-
51	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
52	3391885		Connector, Edge				$ 86.40
53	3396293		Bracket, Control		Appelez-nous	-
54	3399058		Panel, Control (white)		Appelez-nous	-
54	3399059		Panel, Control (almond)		Appelez-nous	-
55	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
72	690853		Wire, Ground		Appelez-nous	-
	LIT3397618		Instructions, Installation		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-
	LIT3401725		Label, Wiring Diagram		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
	978883		Almond (uncut)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	LIT3405515		Guide, Use & Care		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21

    View Diagram in Separate Window       Print Part List
