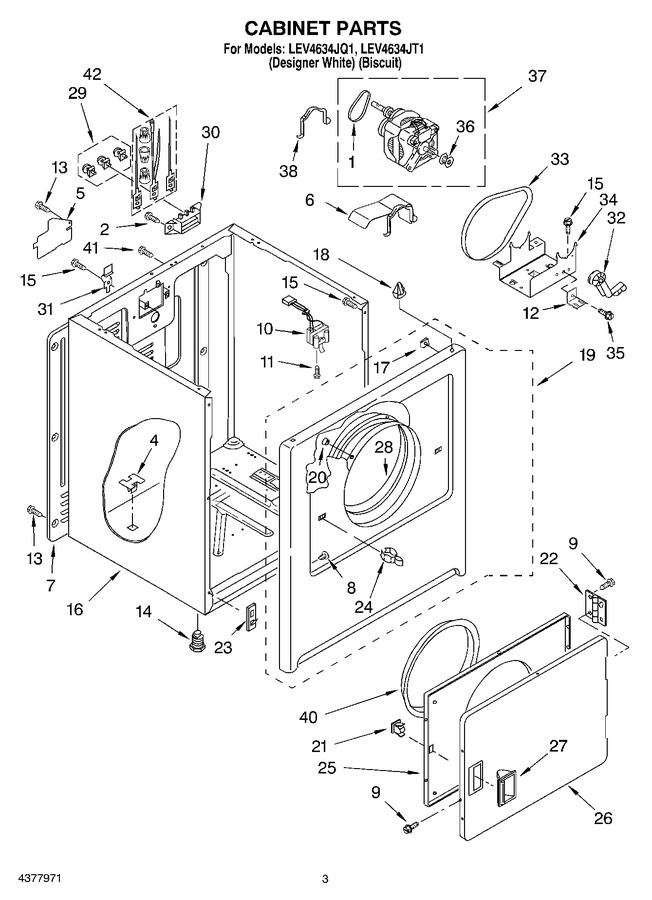

01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 35.23 | ||||
| 2 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 4 | 3404283 | Plug, Cabinet |
|
- | |||||
| 5 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 599.76 | ||||
| 6 | 3401800 | Belt, Shield Assembly |
|
- | |||||
| 7 | 3396807 | Panel, Rear |
|
- | |||||
| 8 | WP3404413 | Plug, Hinge Hole (4) (white) (Replaces: 3404413) |
|
Immediately | $ 7.95 | ||||
| 8 | 3404415 | Plug, Hinge Hole (4) (biscuit) |
|
- | |||||
| 9 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.57 | |||||
| 10 | WP3406105 | Door Switch Assembly (Replaces: 3406104) |
|
Immediately | $ 36.90 | ||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.70 | |||||
| 12 | 3401805 | Bracket, Idler |
|
- | |||||
| 13 | WP693995 | Screw, Rear Panel Mounting (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 14 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 14 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 15 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 16 | 8530606 | Cabinet (biscuit) |
|
- | |||||
| 16 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 399.26 | |||||
| 17 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 18 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 12.68 | ||||
| 19 | 3403571 | Front Panel Assembly (white) |
|
- | |||||
| 19 | 3403576 | Front Panel Assembly (biscuit) |
|
- | |||||
| 20 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 20.65 | |||||
| 21 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 22 | WPW10362431 | Hinge & Pin Assembly (Replaces: 3405514) |
|
Immediately | $ 7.91 | ||||
| 23 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 15.56 | ||||
| 24 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 25 | 3403371 | Door, Rear |
|
$ 77.01 | |||||
| 26 | WP3403361 | Door Front (white) (Replaces: 3403361) |
|
$ 181.46 | |||||
| 26 | WP3403363 | Door, Front (biscuit) (Replaces: 3403363) |
|
$ 242.19 | |||||
| 27 | WP3405184 | Handle, Door (white) (Replaces: 3405184) |
|
$ 76.01 | |||||
| 27 | WP3405189 | Handle, Door (biscuit) (Replaces: 3405189) |
|
$ 86.72 | |||||
| 28 | 279264 | Seal & Bearing Assembly (Replaces: 8066124) |
|
Immediately | $ 74.52 | ||||
| 29 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 47.37 | ||||
| 30 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 23.02 | |||||
| 31 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.82 | |||||
| 32 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 33 | 341241 | Belt, Drive (Replaces: 8066065) |
|
Immediately | $ 18.15 | ||||
| 34 | 3401801 | Base, Motor (Replaces: 3401802) |
|
$ 113.62 | |||||
| 35 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 13.37 | ||||
| 36 | WP8066184 | Pulley, 60 Hz. (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 37 | WPW10396039 | Motor Assembly 60 Hz. (Replaces: 3978856) |
|
$ 241.68 | |||||
| 38 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.83 | |||||
| 40 | W10861521 | Seal, Door (Replaces: 3405245) |
|
Immediately | $ 58.69 | ||||
| 41 | W10850756 | Screw, 10-32 X 5/8 (external Ground) (Replaces: 697776) |
|
$ 7.76 | |||||
| 42 | 279318 | Terminal, Tinned & Brass (3) (includes No. 29) |
|
Immediately | $ 100.99 |
