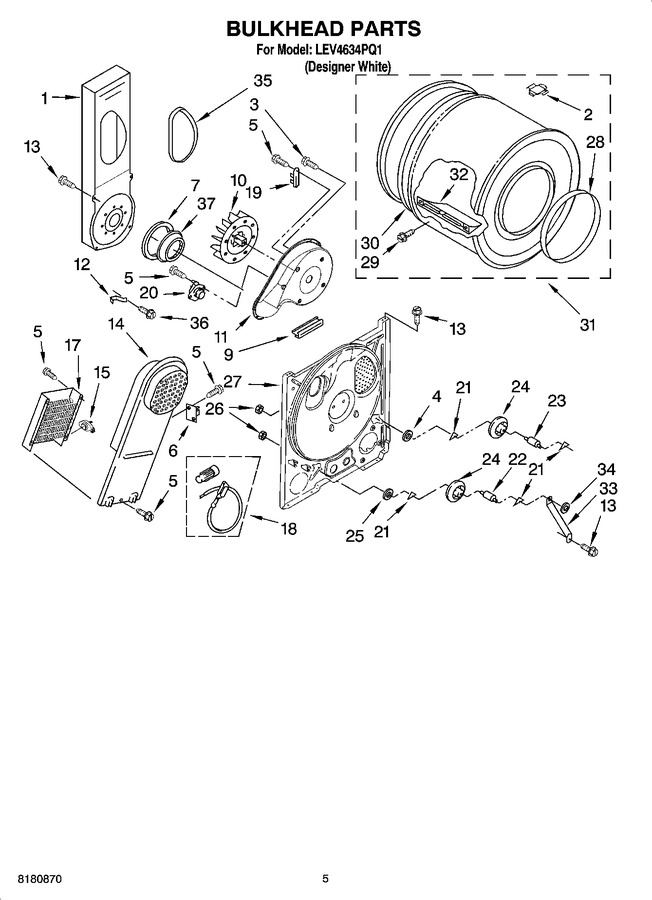

03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8519777 | Lint Chute Assembly |
|
- | |||||
| 2 | 8066086 | Drum, Hole Plug |
|
$ 10.75 | |||||
| 3 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 4 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.47 | |||||
| 5 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | 279816 | Thermal Cut-off (includes Illus. 15) (Replaces: 3977393) |
|
Immediately | $ 60.71 | ||||
| 7 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 9 | 686889 | Pad, Blower Housing (Replaces: 3392247) |
|
- | |||||
| 10 | W10801999 | Wheel, Blower (Replaces: 3406963) |
|
$ 140.36 | |||||
| 11 | 8577233 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | WP8541818 | Box, Heater (Replaces: 8541818) |
|
$ 234.81 | |||||
| 15 | WP3977767 | Thermostat, High Limit 221° F (105° C) (Replaces: 3977767) |
|
Immediately | $ 26.09 | ||||
| 17 | 279838 | Element, Heater (for 240 Volt Installation) (Replaces: 8565582) |
|
Immediately | $ 94.41 | ||||
| 18 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 19 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 20 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387134) |
|
Immediately | $ 35.90 | ||||
| 21 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 22 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 23 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 24 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 29.53 | ||||
| 25 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 26 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 27 | 8529955 | Bulkhead |
|
- | |||||
| 28 | WP3394509 | Ring, Bearing (Replaces: 3394509) |
|
$ 125.38 | |||||
| 29 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 30 | 239087 | Seal, Rear Drum (Replaces: 8066085) |
|
Immediately | $ 62.78 | ||||
| 31 | 697760 | Drum Assembly (Replaces: 3396777) |
|
$ 414.42 | |||||
| 32 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 146.98 | |||||
| 33 | 3976435 | Bracket, Support |
|
$ 43.74 | |||||
| 34 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 35 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 36 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.82 | |||||
| 37 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 22.29 | |||||
| WP689790 | Dry Rack (Replaces: 689790) |
|
$ 57.35 | ||||||
| 4392065 | Kit, Dryer Repair |
|
Immediately | $ 53.85 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| N/A | Accessory Parts |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 11.75 |
