Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP681414 Screw, 10-16 X 1/2   (Replaces: 687128) In-Stock Immediately $ 8.47

2 WP693995 Screw, Hex Washer Head   (Replaces: 693995) In-Stock Immediately $ 7.55

3 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 8.47

4 279771 Clip, Heater Box To Bulkhead   (Replaces: 337272) Special Order $ 15.05

5 346952 Box, Heater Appelez-nous -
6 348378 Screen, Back-up Special Order $ 38.60

8 279900 Funnel, Burner   (Replaces: 347389) Special Order $ 361.58

9 WP338906 Sensor, Radiant   (Replaces: 338906) In-Stock Immediately $ 51.91

12 347455 Support, Heater Box Appelez-nous -
13 279304 Support, Terminal   (Replaces: 690259) Appelez-nous -
14 692697 Support, Terminal Block Extension Appelez-nous -
15 W11736322 Cover, Terminal Block   (Replaces: 690893) Appelez-nous -
16 120377 Nut, 3/8-16 (2) Appelez-nous -
17 695928 Bulkhead Appelez-nous -
18 WP348197 Washer, Support (4)   (Replaces: 348197) Special Order $ 7.55

19 WPW10359270 Shaft, L.h.   (Replaces: 347364) In-Stock Immediately $ 72.71

20 WPW10512946 Ring, Tri   (Replaces: 690997) In-Stock Immediately $ 8.80

21 349241T Roller, Support   (Replaces: 349241) In-Stock Immediately $ 29.53

23 345335 Cover, Manifold Special Order $ 110.25

24 WP308685 Screw, 10-16 X 1/2   (Replaces: 9416643) In-Stock Immediately $ 7.87

25 3391834 Complete Drum Assembly   (Replaces: 695943) Special Order $ 372.51

26 690372 Screw, 11-16 X 7/8 Appelez-nous -
27 279735 Seal, Rear Drum   (Replaces: 345648) In-Stock Immediately $ 66.71

28 347641 Spacer, Heater Box Appelez-nous -
29 WP33001882 Screw   (Replaces: 337686) Special Order $ 83.71

31 00685207 Baffle, Drum (3)   (Replaces: 685207) Special Order $ 326.00

33 WP90767 Screw, 8a X 3/8   (Replaces: 90767) In-Stock Immediately $ 8.25

34 660036 Thermostat, 205~f (96~c) (696707) (alt.) (341196) (alt.) Appelez-nous -
35 WP3390631 Screw, Sensor To Funnel   (Replaces: 339554) Special Order $ 8.25

36 WP339956 Seal, Bulkhead To Air Duct   (Replaces: 339956) In-Stock Immediately $ 9.06

40 WP694674 Thermostat, 140~f (60.0~c) (342812) (alt.)   (Replaces: 660040) In-Stock Immediately $ 50.51

45 345325 Gusset, Cabinet To Bulkhead (2) Appelez-nous -
49 696419 Scroll, Fan Special Order $ 143.66

50 W10491983 Cap, Screw   (Replaces: 359702) Appelez-nous -
51 WP696426 Wheel, Blower   (Replaces: 696426) In-Stock Immediately $ 136.69

52 696539 Duct, Air Appelez-nous -
53 696658 Seal, Duct To Scroll Appelez-nous -
54 WP3394508 Bearing, Ring   (Replaces: 297936) Special Order $ 131.86

55 345396 Clip, Air Duct Appelez-nous -
56 W10828351 Cover, Lint Screen   (Replaces: 685273) In-Stock Immediately $ 56.24

57 W10828351 Screen, Lint   (Replaces: 348399) In-Stock Immediately $ 56.24

58 WPW10359269 Shaft, R.h.   (Replaces: 339489) In-Stock Immediately $ 47.30

59 61894 Heater, Thermostat Special Order $ 37.38

60 WP488729 Screw, 8-18 X 1/2   (Replaces: 695240) In-Stock Immediately $ 8.28

61 WP3392519 Thermal Fuse   (Replaces: 694511) In-Stock Immediately $ 24.95

62 WP965173 Screw, 8-18 X 3/8 (2)   (Replaces: 695239) In-Stock Immediately $ 11.87

LIT693849 Guide, Dryer Appelez-nous -
LIT787207 Dryer Appelez-nous -
72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

LIT697149 List, Repair Parts Appelez-nous -
LIT3388161 Instructions, Installation Appelez-nous -
LIT3387072 Use & Care Guide Appelez-nous -
350956 Paint, Spray 13 Oz. (almond) Special Order $ 54.01

LIT787206 Automatic Washer (belt Drive) Appelez-nous -
350941 Leveler (thinner) Appelez-nous -
350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) Appelez-nous -
285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
285368 Platinum Appelez-nous -
285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
261891 Golden Wheat (uncut) Appelez-nous -
978883 Almond (uncut) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

285365 Toast Appelez-nous -
261890 Golden Wheat Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

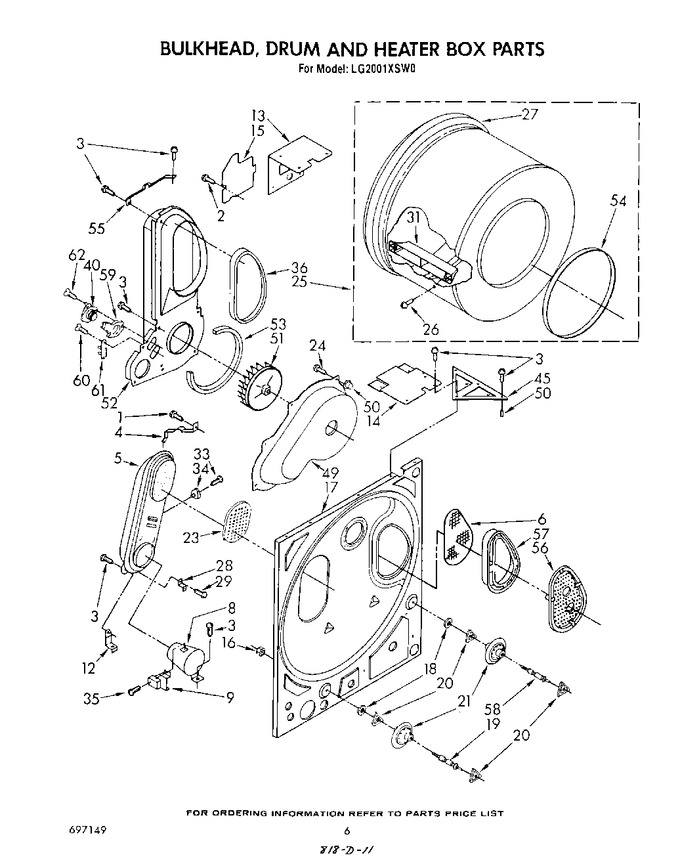

Diagram for LG2001XSW0
