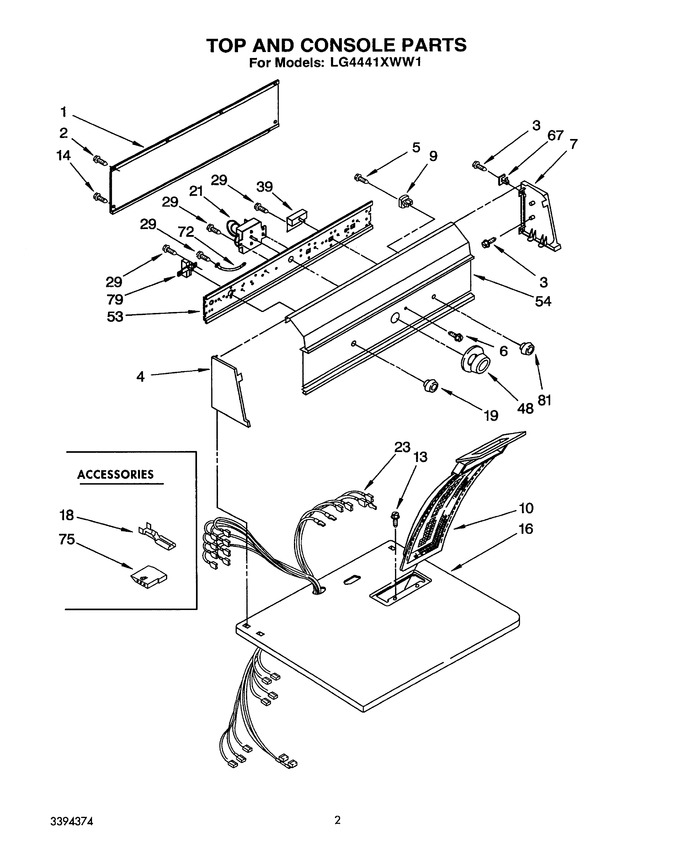

02 - Top And Console, Lit/optional
03 - Cabinet
04 - Burner Assembly
05 - Bulkhead
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 356713 | Panel, Rear Console |
|
- | |||||
| 2 | WP489069 | Screw, Hex Washer Head (4) (Replaces: 693994) |
|
Immediately | $ 8.40 | ||||
| 3 | 355326 | Screw, 13-16 X 5/8 |
|
- | |||||
| 4 | 3393198 | Cap, End (l.h.) |
|
- | |||||
| 5 | WP355515 | Screw, 8 X 7/8 (Replaces: 355515) |
|
$ 8.48 | |||||
| 6 | WP694091 | Screw, 8-18 X 5/16 (Replaces: 694091) |
|
$ 7.55 | |||||
| 7 | 3393197 | Cap, End (r.h.) |
|
- | |||||
| 9 | 98460 | Nut, Push-in |
|
$ 12.07 | |||||
| 10 | W10874409 | Screen, Lint (Replaces: 348855) |
|
Immediately | $ 67.01 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP693995 | Screw, Hex (2) (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | 685958 | Top (white) |
|
- | |||||
| 18 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 19 | 3393200 | Knob, Temperature Selector |
|
- | |||||
| 21 | 3393916 | Timer Assembly, 60 Hz. |
|
- | |||||
| 23 | 3393990 | Harness, Wiring |
|
- | |||||
| 29 | WP3390631 | Screw (Replaces: 339554) |
|
$ 8.25 | |||||
| 39 | 660936 | Switch, Push-to-start |
|
- | |||||
| 48 | 3392732 | Timer Knob & Dial |
|
- | |||||
| 53 | 690864 | Bracket, Control |
|
- | |||||
| 54 | 3393196 | Panel, Control |
|
- | |||||
| 67 | 689559 | Nut, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 75 | 691707 | Receptacle, Latching (3-way) (uses Terminal 94614) |
|
- | |||||
| 79 | 694720 | Switch, Temperature Selector |
|
- | |||||
| 81 | 3393199 | Knob, Push-to-start |
|
- | |||||
| LIT3391427 | Guide, Dryer |
|
- | ||||||
