02 - Bulkhead , Literature And Optional
03 - Cabinet
04 - Top And Console

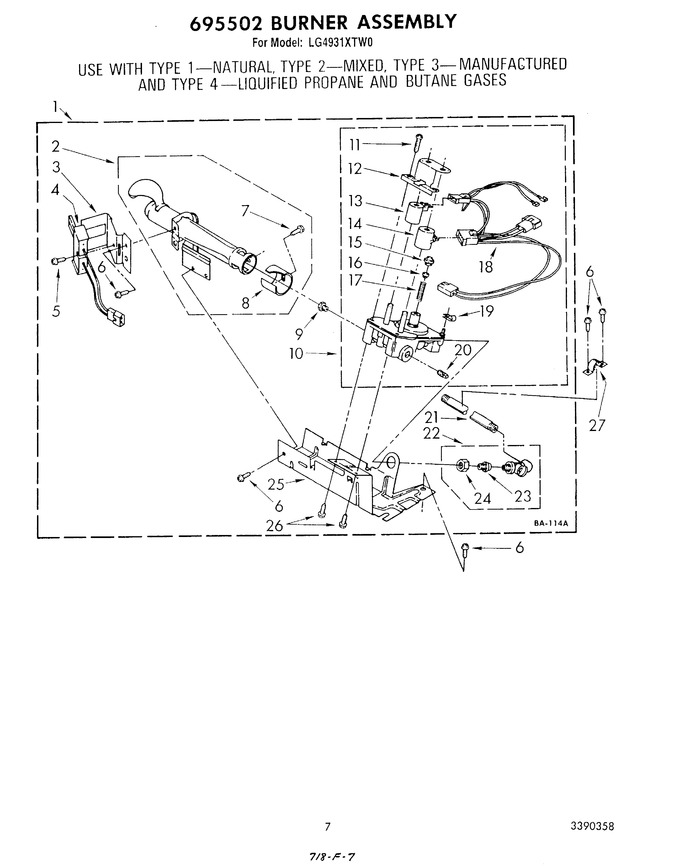

05 - 695502 Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 695502 | Burner Assembly 60 Hz. (type 1, 2 & 3) (white Rodgers) |
|
- | |||||
| 2 | WP693140 | Tube & Shutter, Burner (Replaces: 693140) |
|
$ 188.87 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 27.22 | |||||
| 4 | 279311 | Ignitor (686590) (alt.) (Replaces: 660991) |
|
Immediately | $ 78.90 | ||||
| 5 | WPW10366705 | Lock Screw & Washer (8-32 X 5/8) (Replaces: 686953) |
|
$ 7.88 | |||||
| 6 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 7 | 98611 | Screw, Tapping |
|
- | |||||
| 8 | 688630 | Shutter, Air |
|
- | |||||
| 9 | WP347744 | Orifice, Burner (type 4 (butane)) (Replaces: 347744) |
|
$ 84.63 | |||||
| 9 | WP234822 | Orifice, Burner (type 1) (Replaces: 234822) |
|
$ 30.28 | |||||
| 9 | 296301 | Orifice, Burner (type 2) |
|
- | |||||
| 9 | WP347743 | Orifice, Burner (type 4 (propane)) (Replaces: 347743) |
|
$ 55.62 | |||||
| 9 | 234660 | Orifice, Burner (type 3) |
|
$ 4.91 | |||||
| 10 | 279923 | Valve, Gas 60 Hz. (complete) (Replaces: 694054) |
|
Immediately | $ 286.03 | ||||
| 11 | 694421 | Screw, Bracket Mounting (8-32 X 1/2) (2) |
|
- | |||||
| 12 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 13 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 32.85 | ||||
| 14 | 279834 | Coil, 60 Hz. (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 32.85 | ||||
| 15 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 36.30 | |||||
| 16 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 7.30 | |||||
| 17 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 25.48 | |||||
| 18 | WP3401850 | Harness, Wiring (complete) (Replaces: 694426) |
|
$ 255.13 | |||||
| 19 | 694510 | Clip, Harness |
|
- | |||||
| 20 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- | |||||
| 21 | 695501 | Pipe, Gas Supply |
|
- | |||||
| 22 | 345062 | Valve & Union, Shut-off |
|
- | |||||
| 23 | 3393767 | Pipe, Tail (Replaces: 233077) |
|
$ 144.63 | |||||
| 24 | 233076 | Nut, Compression |
|
$ 43.19 | |||||
| 25 | 694669 | Base, Burner |
|
- | |||||
| 26 | WP90767 | Screw, 8-32 X 3/8 (2) (Replaces: 339527) |
|
Immediately | $ 8.25 | ||||
| 27 | 341029 | Clamp, Pipe (rear) |
|
- | |||||
| 27 | W10402145 | Conversion Kit (type 1,2, & 3 To Type 4 (lpg) (Replaces: 694580) |
|
$ 114.21 |
