SELECT A DIAGRAM

01 - Bulkhead

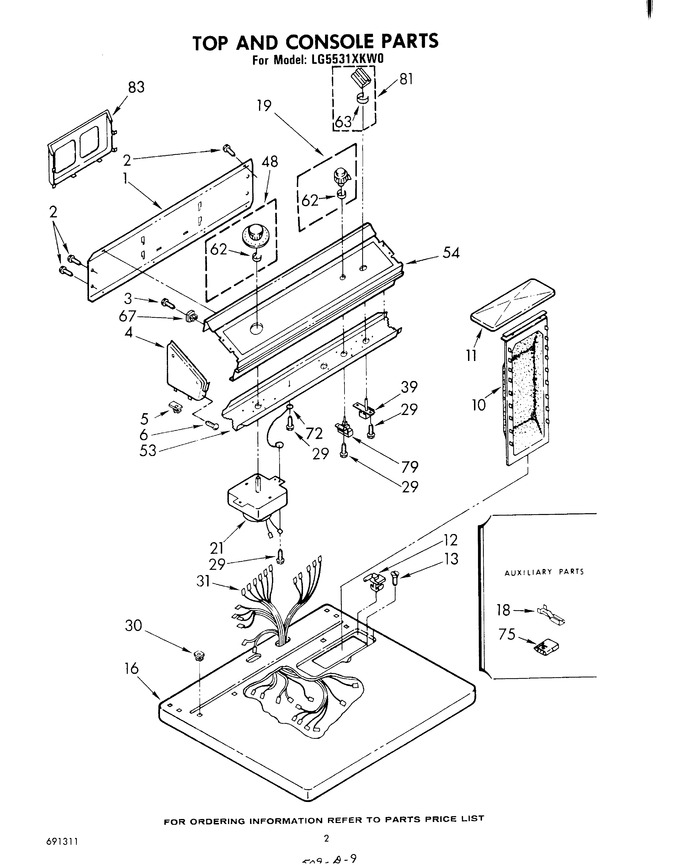

02 - Top And Console , Literature And Optional


03 - Cabinet


04 - 688639 Burner Assembly


05 - 688637 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	359372		Panel, Rear Console		Appelez-nous	-
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	375309		Cap, End L.h. (white)		Appelez-nous	-
4	377283		Cap, End L.h. (golden Harvest)		Appelez-nous	-
4	375315		Cap, End (l.h.) (almond)		Appelez-nous	-
4	375305		Cap, End (l.h.) (white)		Appelez-nous	-
4	375318		Cap, End (l.h.) (golden Harvest Cap, End (r.h.))		Appelez-nous	-
4	375313		Cap, End (l.h.) (almond)		Appelez-nous	-
5	358472		Stop, Push-in (2)		Appelez-nous	-
6	358225		Screw, 8-18		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
11	689313		Cover, Lint Screen (golden Harvest)		Appelez-nous	-
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
16	689452		Top (golden Harvest)		Appelez-nous	-
16	689449		Top (almond)		Appelez-nous	-
16	688479		Top (white)		Appelez-nous	-
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
18	94613		Terminal, (male)		Appelez-nous	-
19	690292		Control Knob Assembly		Appelez-nous	-
21	687950		Timer Assembly, 60 Hz.		Appelez-nous	-
29	WP3390631		Screw   (Replaces: 339554)				$ 7.82
30	358473		Nut, Push-in (2)				$ 5.84
31	688787		Harness, Wiring		Appelez-nous	-
39	692021		Switch, Push-to-start (alternate)		Appelez-nous	-
39	346364		Switch, Push-to-start (alternate)		Appelez-nous	-
48	690201		Timer Knob Assembly		Appelez-nous	-
53	359708		Bracket, Control		Appelez-nous	-
54	691678		Panel, Control		Appelez-nous	-
62	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
63	599530307		Clip   (Replaces: 90015)		Appelez-nous	-
67	689559		Nut, Push-in (4)		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
75	353425		Receptacle, 3-way Terminal (use W/94614)		Appelez-nous	-
75	353424		Plug, 3-way Terminal (use W/94613)				$ 18.95
79	348687		Switch, Rotary (temperature Selector)		Appelez-nous	-
81	689857		Button Assembly		Appelez-nous	-
83	230082		Instructions, Wiring		Appelez-nous	-
83	349849		Harness, Wiring		Appelez-nous	-
83	W10851673		Transformer Assembly   (Replaces: 299032)				$ 397.59
83	279320		Block, Terminal   (Replaces: 348911)			Immediately	$ 68.25
83	279320		Bracket   (Replaces: 341055)			Immediately	$ 68.25
83	340704		Supplement, Installation Instructions		Appelez-nous	-
83	687011		Instructions, Installation		Appelez-nous	-
83	299663		Wire, Adapter (4`` Long)		Appelez-nous	-
83	299669		Wire, Adapter (4-1/2 `` Long)		Appelez-nous	-
83	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
83	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
83	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
83	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
83	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
83	261886		(13 Oz.) (coffee)		Appelez-nous	-
83	261888		(13 Oz.) (new Avocado)		Appelez-nous	-
83	261890		(13 Oz.) (golden Harvest)		Appelez-nous	-
83	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
83	350941		(13 Oz.) (leveler (thinner))		Appelez-nous	-
83	350956		(13 Oz.) (almond)				$ 51.44
83	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
83	978883		(1 Qt.) (almond (uncut))		Appelez-nous	-
83	261887		(1 Qt.) (coffee (uncut))		Appelez-nous	-
83	261889		(1 Qt.) (new Avocado (uncut))		Appelez-nous	-
83	261891		(1 Qt.) (golden Harvest (uncut))		Appelez-nous	-
83	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
83	799351		(1 Qt.) (thinner (1 Gal.))		Appelez-nous	-
83	357645		Rack, Literature		Appelez-nous	-
83	688898		Guide, Dryer		Appelez-nous	-
83	690726		Use & Care Guide		Appelez-nous	-
83	688644		Instructions, Installation		Appelez-nous	-
83	691311		List, Service Parts		Appelez-nous	-
	299885		Wire, Splicing 240 Volt		Appelez-nous	-
