02 - Top And Console, Lit/optional
03 - Cabinet
04 - 694670 Burner
05 - Bulkhead
New Model Search:

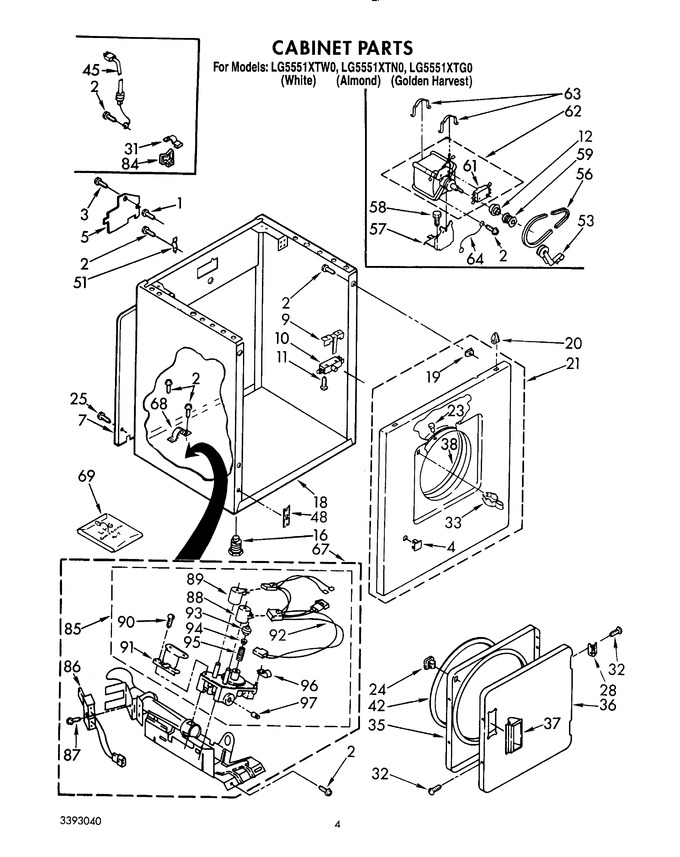

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10850756 | Screw, 10-16 X 1/2 (Replaces: 697776) |
|
$ 7.76 | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 3394977 | Plug, Front Panel (golden Harvest) |
|
- | |||||
| 4 | 3394976 | Plug, Front Panel (almond) |
|
- | |||||
| 4 | 3394975 | Plug, Front Panel (white) |
|
$ 5.70 | |||||
| 5 | W11736322 | Cover, Block (Replaces: 690893) |
|
- | |||||
| 7 | 347736 | Panel, Rear |
|
- | |||||
| 9 | WP691581 | Clip, Door Switch (Replaces: 691581) |
|
Immediately | $ 8.09 | ||||
| 10 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 30.50 | ||||
| 11 | WP98129 | Screw, 6-20 X 7/8 (2) (Replaces: 98129) |
|
$ 7.56 | |||||
| 12 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| 16 | 49621 | Foot, Dryer (4) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 18 | 3394110 | Cabinet (almond) |
|
- | |||||
| 18 | 3394109 | Cabinet (white) |
|
- | |||||
| 18 | 3394114 | Cabinet (golden Harvest) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 12.68 | ||||
| 21 | 3394895 | Front Panel Assembly (white) |
|
- | |||||
| 21 | 3394897 | Front Panel Assembly (golden Harvest) |
|
- | |||||
| 21 | 3394896 | Front Panel Assembly (almond) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 20.65 | |||||
| 24 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
$ 6.20 | |||||
| 25 | WP489069 | Screw, Hex Head (Replaces: 693994) |
|
Immediately | $ 7.86 | ||||
| 28 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 8.42 | |||||
| 31 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 11.09 | |||||
| 32 | WP694091 | Screw (Replaces: 694091) |
|
$ 7.19 | |||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 35 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 197.58 | |||||
| 36 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 147.39 | ||||
| 36 | 689319 | Door Front (golden Harvest) |
|
- | |||||
| 36 | 689314 | Door, Front (almond) |
|
- | |||||
| 37 | 689586 | Handle, Door (golden Harvest) |
|
- | |||||
| 37 | WP686711 | Handle, Door (white) (Replaces: 686711) |
|
Immediately | $ 7.95 | ||||
| 37 | 689308 | Handle, Door (almond) |
|
$ 5.70 | |||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 74.52 | ||||
| 42 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 53.63 | |||||
| 45 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 120.59 | |||||
| 48 | W10854425 | Clip, Hinge (2) (Replaces: 3394083) |
|
Immediately | $ 15.56 | ||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.82 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 3394651) |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 121.57 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 13.37 | ||||
| 59 | WP8066184 | Pulley 60 Hz (Replaces: 3389627) |
|
Immediately | $ 51.02 | ||||
| 61 | 279827 | Switch (use W/3391888 Motor) (Replaces: 3388235) |
|
Immediately | $ 191.95 | ||||
| 62 | 279827 | Motor 60 Hz. (Replaces: 3391888) |
|
Immediately | $ 191.95 | ||||
| 63 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.83 | |||||
| 63 | WP660658 | (alt.) (Replaces: 343481) |
|
$ 7.83 | |||||
| 63 | WP660658 | (alt.) (Replaces: 685441) |
|
$ 7.83 | |||||
| 64 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 67 | 694670 | Burner Assembly, 60 Hz. (refer To Pages 6 & 7 For Further Breakdown) |
|
- | |||||
| 68 | 341029 | Clamp, Pipe |
|
- | |||||
| 69 | 49572A | Kit, Conversion (type 1, 2 & 3 To Type 4) (Replaces: 694572) |
|
Immediately | $ 36.19 | ||||
| 69 | 279243 | Kit, Conversion (type 1 To Type 3) |
|
- | |||||
| 84 | 688412 | Clip, Retainer |
|
- | |||||
| 85 | 279923 | Valve, Gas 60 Hz. (complete) (Replaces: 694054) |
|
Immediately | $ 286.03 | ||||
| 86 | 279311 | Ignitor (Replaces: 660991) |
|
Immediately | $ 78.90 | ||||
| 86 | 279311 | (alt.) (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 87 | WPW10366705 | Screw & Washer (Replaces: 686953) |
|
$ 7.50 | |||||
| 88 | 279834 | Coil, 60 Hz. (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 32.85 | ||||
| 89 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 32.85 | ||||
| 90 | 694421 | Screw, Bracket Mounting (8-32 X 1/2) |
|
- | |||||
| 91 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 92 | WP3401850 | Harness, Wiring (Replaces: 694426) |
|
$ 242.98 | |||||
| 93 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 34.57 | |||||
| 94 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 6.95 | |||||
| 95 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 24.27 | |||||
| 96 | 694510 | Clip, Harness |
|
- | |||||
| 97 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- |
