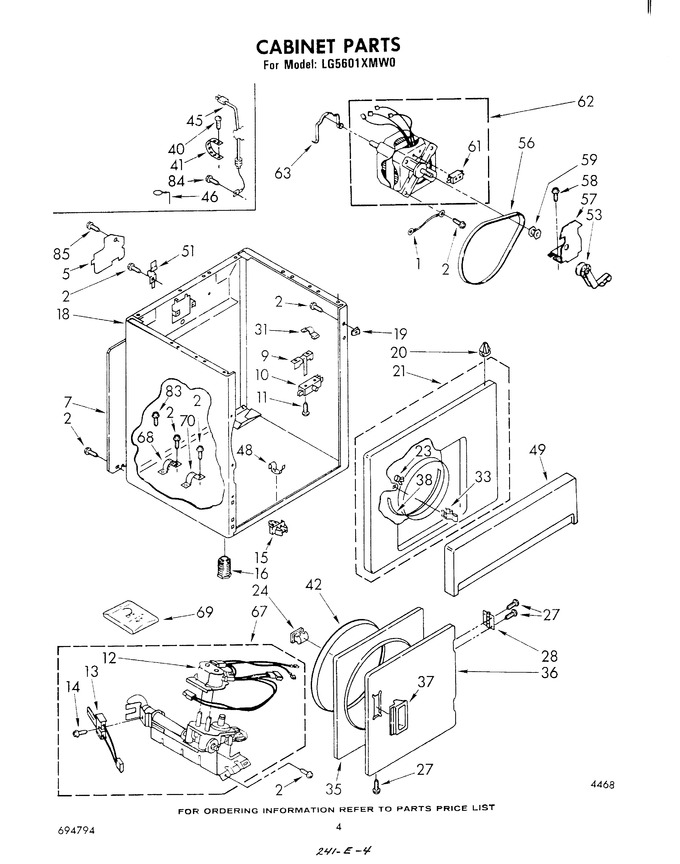

03 - Cabinet


04 - 694670 Burner Assembly


05 - Bulkhead


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	690236		Wire, Ground (motor)		Appelez-nous	-
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
5	W11736322		Cover, Block   (Replaces: 690893)		Appelez-nous	-
7	347736		Panel, Rear		Appelez-nous	-
9	WP691581		Clip, Door Switch   (Replaces: 295998)			Immediately	$ 8.09
10	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
11	WP98129		Screw, 6-10 X 1-3/8   (Replaces: 98129)				$ 7.56
12	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 694054)			Immediately	$ 286.03
13	279311		Ignitor (alt.)   (Replaces: 686590)			Immediately	$ 78.90
13	279311		Ignitor   (Replaces: 660991)			Immediately	$ 78.90
14	WPW10366705		Screw And Washer   (Replaces: 686953)				$ 7.50
15	690625		Clip, Toe Panel (2)		Appelez-nous	-
16	49621		Foot, Dryer (4) (plastic)   (Replaces: 688222)			Immediately	$ 8.55
18	690848		Cabinet (almond)		Appelez-nous	-
18	690851		Cabinet (golden Harvest)		Appelez-nous	-
18	690847		Cabinet (white)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 12.68
21	693202		Upper Front Panel (white)		Appelez-nous	-
21	693206		Upper Front Panel (golden Harvest)		Appelez-nous	-
21	693203		Upper Front Panel (almond)		Appelez-nous	-
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 20.65
24	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.89
27	689791		Screw		Appelez-nous	-
28	WP348023		Hinge & Pin Assembly   (Replaces: 348023)				$ 8.42
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.09
33	279570		Strike, Panel   (Replaces: 693717)			Immediately	$ 8.89
35	280077		Door, Rear (golden Harvest)   (Replaces: 689277)				$ 197.58
35	280077		Door, Rear (almond)   (Replaces: 689274)				$ 197.58
35	280077		Door, Rear (white)   (Replaces: 348201)				$ 197.58
36	689314		Door, Front (almond)		Appelez-nous	-
36	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 147.39
36	689319		Door Front (golden Harvest)		Appelez-nous	-
37	WP686711		Handle, Door (white)   (Replaces: 686715)			Immediately	$ 7.95
37	689306		Handle, Door (almond)		Appelez-nous	-
37	689584		Handle, Door (golden Harvest)		Appelez-nous	-
38	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 74.52
40	132848		Screw, 10-24 X 1		Appelez-nous	-
41	22965		Strap, Ground		Appelez-nous	-
42	W11613302		Seal, Door   (Replaces: 685763)				$ 53.63
45	W11222083		Cord, Power   (Replaces: 344020)				$ 120.59
46	364089		Wire, Ground		Appelez-nous	-
48	WP297092		Clip, Hinge (2)   (Replaces: 297092)			Immediately	$ 8.24
49	689539		Panel, Toe (golden Harvest)		Appelez-nous	-
49	237035		Panel, Toe (white)		Appelez-nous	-
49	689537		Panel, Toe (almond)		Appelez-nous	-
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
56	341241		Belt, Drive			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 13.37
59	WP8066184		Pulley, 60 Hz.   (Replaces: 694871)			Immediately	$ 51.02
61	279827		Switch, Motor Start   (Replaces: 337351)			Immediately	$ 191.95
62	279827		Motor Assembly 60 Hz. (alternate)   (Replaces: 695075)			Immediately	$ 191.95
63	WP660658		Clamp, Motor (alternate)   (Replaces: 343481)				$ 7.83
63	WP660658		Clamp, Motor (alternate)   (Replaces: 685441)				$ 7.83
67	694670		Burner Assembly, 60 Hz. (refer To Pages 6 & 7 For Further Breakdown)		Appelez-nous	-
68	341029		Clamp, Pipe (rear)		Appelez-nous	-
69	49572A		Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg)   (Replaces: 694572)			Immediately	$ 36.19
69	279243		Kit, Conversion Type 1 To Type 3 (manufactured)		Appelez-nous	-
70	695885		Clamp, Pipe (front)		Appelez-nous	-
83	343826		Screw, Burner Mounting		Appelez-nous	-
84	WP681414		Screw, 10-32 (external Ground)   (Replaces: 690989)			Immediately	$ 7.85
85	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.85
