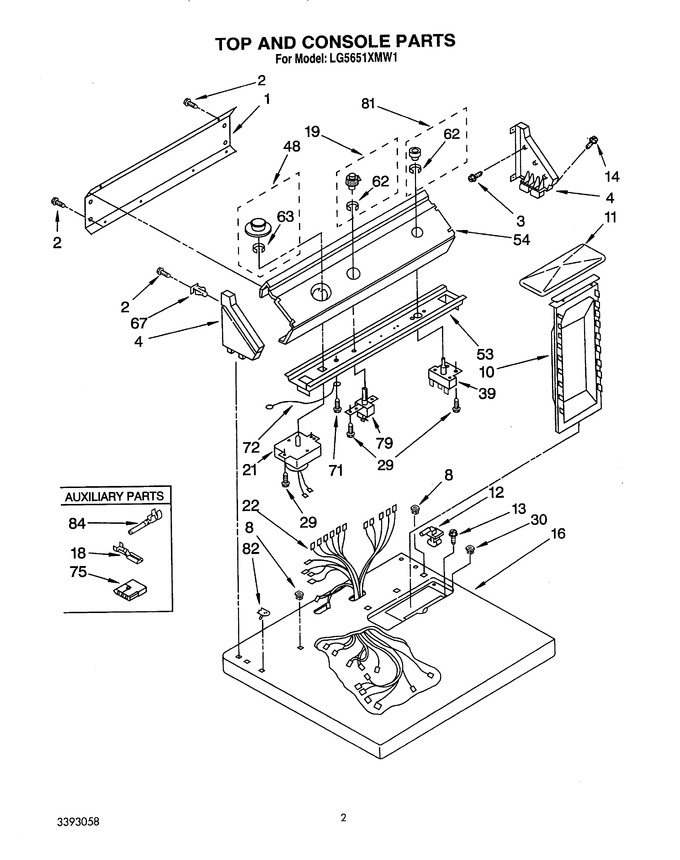

02 - Top And Console, Lit/optional
03 - Cabinet
04 - 694670 Burner
05 - Bulkhead
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 358470 | Panel, Rear Console |
|
- | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | 355326 | Screw, 13/16 X 5/8 (4) |
|
- | |||||
| 4 | 375337 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 375333 | Cap, End (l.h.) (white Cap, End (r.h.)) |
|
- | |||||
| 8 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 7.72 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 358225 | Screw, 8-18 X 1 (2) |
|
- | |||||
| 16 | 688479 | Top (white) |
|
- | |||||
| 18 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 19 | 690292 | Control Knob Assembly |
|
- | |||||
| 21 | 3393916 | Timer Assembly, 60 Hz. |
|
- | |||||
| 22 | 3393990 | Harness, Wiring |
|
- | |||||
| 29 | WP3390631 | Screw, Tapping (Replaces: 339554) |
|
$ 7.82 | |||||
| 30 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 39 | 660936 | Switch, Push-to-start |
|
- | |||||
| 39 | 346364 | (alt.) |
|
- | |||||
| 39 | 692021 | (alt.) |
|
- | |||||
| 48 | 690200 | Timer Knob Assembly |
|
- | |||||
| 53 | 359708 | Bracket, Control |
|
- | |||||
| 54 | 688350 | Panel, Control |
|
- | |||||
| 62 | 599530307 | Clip (Replaces: 90015) |
|
- | |||||
| 63 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 67 | 689559 | Nut, Push-in (4) |
|
- | |||||
| 71 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 75 | 691707 | Receptacle, 3-way Latching |
|
- | |||||
| 79 | 694720 | Switch, Air Heat |
|
- | |||||
| 81 | 346219 | Button, Push-to-start |
|
- | |||||
| 82 | 358472 | Stop, Push-in (2) |
|
- | |||||
| 84 | 299885 | Wire, Splicing 240 Volt |
|
- | |||||
| 84 | 94613 | Terminal, (male) |
|
- | |||||
| 84 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
