SELECT A DIAGRAM

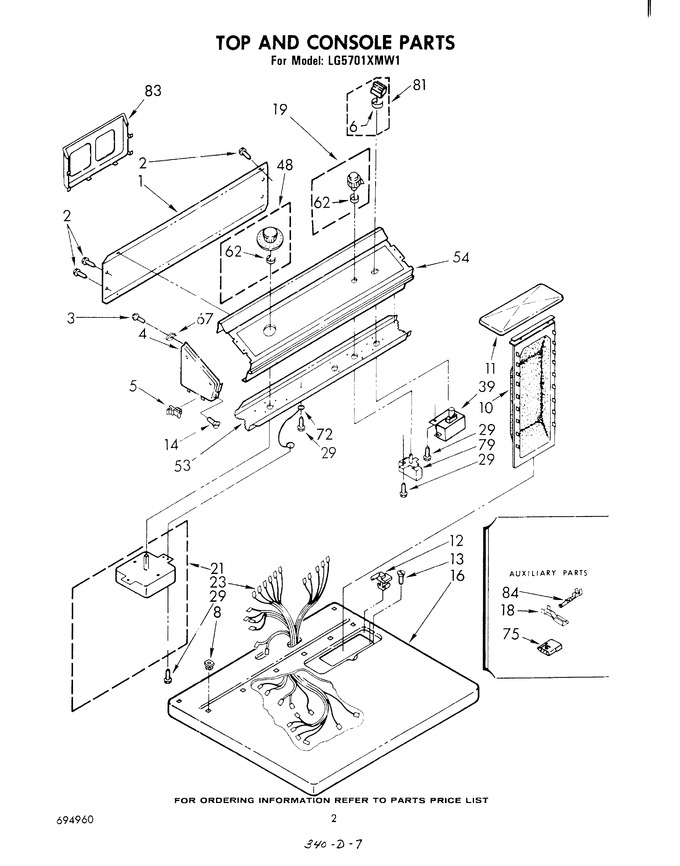

02 - Top And Console, Literature And Optional


03 - Cabinet


04 - Bulkhead


05 - 688637 Burner


06 - 688639 Burner


07 - 694505 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	359372		Panel, Rear Console		Appelez-nous	-
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	355326		Screw, 13-16 X 5/8 (2)		Appelez-nous	-
4	375313		Cap, End (l.h.) (almond)		Appelez-nous	-
4	375305		Cap, End (l.h.) (white)		Appelez-nous	-
4	375318		Cap, End (l.h.) (golden Harvest)		Appelez-nous	-
4	377284		Cap, End (l.h.) (toast)		Appelez-nous	-
4	377285		Cap, End (l.h.) (platinum Cap, End (r.h.))		Appelez-nous	-
4	375309		Cap, End L.h. (white)		Appelez-nous	-
4	375315		Cap, End (l.h.) (almond)		Appelez-nous	-
4	377283		Cap, End L.h. (golden Harvest)		Appelez-nous	-
4	377286		Cap, End L.h. (toast)		Appelez-nous	-
4	377287		Cap, End L.h. (platinum)		Appelez-nous	-
5	358472		Stop, Push-in (2)		Appelez-nous	-
6	599530307		Clip   (Replaces: 90015)		Appelez-nous	-
8	358473		Nut, Push-in (2)				$ 5.84
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
11	695022		Cover, Lint Screen (toast)		Appelez-nous	-
11	689313		Cover, Lint Screen (golden Harvest)		Appelez-nous	-
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
11	695023		Cover, Lint Screen (platinum)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	358225		Screw, 8-18 X 1 (2)		Appelez-nous	-
16	688479		Top (white)		Appelez-nous	-
16	689449		Top (almond)		Appelez-nous	-
16	689452		Top (golden Harvest)		Appelez-nous	-
16	694983		Top (toast)		Appelez-nous	-
16	694984		Top (platinum)		Appelez-nous	-
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
19	690292		Control Knob, Temperature		Appelez-nous	-
21	687950		Timer Assembly, 60 Hz.		Appelez-nous	-
23	694069		Harness, Wiring		Appelez-nous	-
29	WP3390631		Screw   (Replaces: 339554)				$ 7.82
39	346364		Switch, Push-to-start (alt.)		Appelez-nous	-
39	692021		Switch, Push-to-start (alt.)		Appelez-nous	-
39	660936		Switch, Push-to-start		Appelez-nous	-
48	690201		Timer Knob Assembly		Appelez-nous	-
53	359708		Bracket, Control		Appelez-nous	-
54	690419		Panel, Control		Appelez-nous	-
62	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
67	98084		Clip, Push-on (4)		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
75	353425		Receptacle, 3-way Terminal (use W/94614)		Appelez-nous	-
75	353424		Plug, 3-way Terminal (use W/94613)				$ 18.95
79	348686		Switch, Temperature		Appelez-nous	-
81	689857		Button Assembly		Appelez-nous	-
83	357645		Rack, Literature		Appelez-nous	-
84	350941		Leveler (thinner)		Appelez-nous	-
84	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
84	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
84	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
84	799351		Thinner (1 Gal.)		Appelez-nous	-
84	94613		Terminal, (male)		Appelez-nous	-
84	693849		Guide, Dryer		Appelez-nous	-
84	691272		Use & Care Guide		Appelez-nous	-
84	694344		Instructions, Installation		Appelez-nous	-
84	694960		List, Service Parts		Appelez-nous	-
84	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
84	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
84	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
84	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
84	261890		Golden Harvest		Appelez-nous	-
84	285365		Toast		Appelez-nous	-
84	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
84	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	285368		Xplatinum (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	261891		Xgolden Harvest (uncut)		Appelez-nous	-
