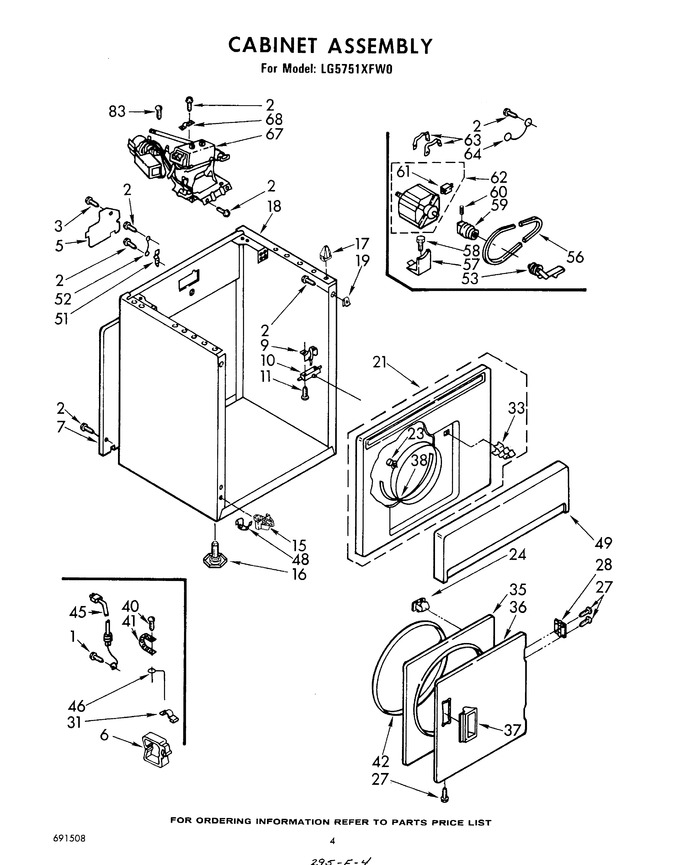

SELECT A DIAGRAM

01 - Bulkhead


02 - Top And Console, Literature And Optional


03 - Cabinet


04 - 688639 Burner


05 - 688637 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-32 X 1/2   (Replaces: 343631)			Immediately	$ 8.47
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
3	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 8.47
5	W11736322		Cover, Block   (Replaces: 690893)		Appelez-nous	-
6	688412		Clip, Harness Retainer		Appelez-nous	-
7	347736		Panel, Rear		Appelez-nous	-
9	WP691581		Door Lever   (Replaces: 295998)			Immediately	$ 8.49
10	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
11	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 98129)				$ 8.18
15	690625		Clip, Toe Panel (2)		Appelez-nous	-
16	49621		Foot, Dryer (plastic) (4)   (Replaces: 688222)			Immediately	$ 8.55
17	WP18776		Locator, Top (2)   (Replaces: 690363)			Immediately	$ 13.31
18	690847		Cabinet (white)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.96
21	348394		Upper Front Panel Assembly (white)		Appelez-nous	-
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 23.55
24	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.89
27	689791		Screw		Appelez-nous	-
28	WP348023		Hinge & Pin Assembly (2)   (Replaces: 348023)				$ 9.32
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.64
33	279570		Strike, Door   (Replaces: 690082)			Immediately	$ 8.89
35	280077		Door, Rear (white)   (Replaces: 348201)				$ 207.46
36	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 154.76
37	WP686711		Handle, Door (white)   (Replaces: 686715)			Immediately	$ 8.35
38	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 74.52
40	132848		Screw, 10-24 X 1		Appelez-nous	-
41	22965		Strap, Ground		Appelez-nous	-
42	W11613302		Seal, Door   (Replaces: 685763)				$ 56.31
45	W11222083		Cord, Power   (Replaces: 344020)				$ 126.62
46	364089		Wire, Ground		Appelez-nous	-
48	WP297092		Clip, Hinge (2)   (Replaces: 297092)			Immediately	$ 8.95
49	337833		Panel, Toe (white)		Appelez-nous	-
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 8.21
52	340025		Wire, Ground		Appelez-nous	-
53	WP691366		Idler & Pulley   (Replaces: 688166)			Immediately	$ 22.47
56	341241		Belt, Drive			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 127.65
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 14.04
59	W11233559		Pulley, 60 Hz. (includes Illus. 60)   (Replaces: 685011)				$ 119.58
60	690046		Set Screw		Appelez-nous	-
61	279827		Switch (use W/690870 Motor)   (Replaces: 337351)			Immediately	$ 191.95
61	279827		Switch ((use W/689788 Motor))   (Replaces: 349588)			Immediately	$ 191.95
62	279827		Motor Assembly (60 Hz. (alternate))   (Replaces: 689788)			Immediately	$ 191.95
62	279827		Motor Assembly (60 Hz. (alternate))   (Replaces: 690870)			Immediately	$ 191.95
63	WP660658		Clamp, Motor (alternate)   (Replaces: 343481)				$ 8.22
63	WP660658		Clamp, Motor (alternate)   (Replaces: 685441)				$ 8.22
64	690236		Wire, Ground (motor)		Appelez-nous	-
67	279243		Kit, Conversion (type 1 To Type 3) (mfd Gas)		Appelez-nous	-
67	688637		Burner Assemblie, 60 Hz. (alternate) (refer To Page 7)		Appelez-nous	-
67	688639		Burner Assembly, 60 Hz. (alternate) (refer To Page 6)		Appelez-nous	-
67	W10402145		Kit, Conversion To Type 4 (lpg)   (Replaces: 239072)				$ 114.21
68	341029		Clamp, Pipe		Appelez-nous	-
83	343826		Screw, Burner Mounting		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
