SELECT A DIAGRAM

Diagram for 02 - Top And Console , Literature And Optional
02 - Top And Console , Literature And Optional

Diagram for 03 - Cabinet
03 - Cabinet

Diagram for 04 - 694670 Burner
04 - 694670 Burner

Diagram for 05 - Bulkhead
05 - Bulkhead


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 359372 Panel, Rear Console Appelez-nous -
2 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 8.47

3 355326 Screw, 13/16 X 5/8 (4) Appelez-nous -
4 377286 Cap, End L.h. (toast) Appelez-nous -
4 375305 Cap, End (l.h.) (white) Appelez-nous -
4 375313 Cap, End (l.h.) (almond) Appelez-nous -
4 375318 Cap, End (l.h.) (golden Harvest) Appelez-nous -
4 377284 Cap, End (l.h.) (toast) Appelez-nous -
4 377285 Cap, End (l.h.) (platinum Cap, End (r.h.)) Appelez-nous -
4 375309 Cap, End L.h. (white) Appelez-nous -
4 375315 Cap, End (l.h.) (almond) Appelez-nous -
4 377283 Cap, End L.h. (golden Harvest) Appelez-nous -
4 377287 Cap, End L.h. (platinum) Appelez-nous -
6 688412 Clip, Harness Retainer Appelez-nous -
8 358473 Nut, Push-in (2) Special Order $ 5.84

10 339392V Screen, Lint   (Replaces: 339392) In-Stock Immediately $ 41.91

11 688150 Cover, Lint Screen (white) Appelez-nous -
11 689313 Cover, Lint Screen (golden Harvest) Appelez-nous -
11 689310 Cover, Lint Screen (almond) Appelez-nous -
11 695022 Cover, Lint Screen (toast) Appelez-nous -
11 695023 Cover, Lint Screen (platinum) Appelez-nous -
12 WPW10044470 Hinge, R.h.   (Replaces: 339229) Special Order $ 8.11

12 WPW10044480 Hinge, L.h.   (Replaces: 339230) Special Order $ 8.11

13 W11693756 Screw, 8-18 X 5/8   (Replaces: 688983) In-Stock Immediately $ 14.76

14 358225 Screw, 8-18 X 1 (2) Appelez-nous -
16 694984 Top (platinum) Appelez-nous -
16 689452 Top (golden Harvest) Appelez-nous -
16 694983 Top (toast) Appelez-nous -
16 689449 Top (almond) Appelez-nous -
16 688479 Top (white) Appelez-nous -
18 WP94614 Terminal (female)   (Replaces: 94614) Special Order $ 8.05

19 690292 Control Knob, Temperature Appelez-nous -
21 690208 Timer Assembly 60 Hz. Appelez-nous -
22 694690 Harness, Wiring Appelez-nous -
29 WP3390631 Screw, Tapping   (Replaces: 339554) Special Order $ 8.25

30 98460 Nut, Push-in (2) Special Order $ 12.07

39 660936 Switch, Push-to-start Appelez-nous -
39 346364 Switch, Push-to-start (alt.) Appelez-nous -
39 692021 Switch, Push-to-start (alt.) Appelez-nous -
48 690200 Timer Knob Assembly Appelez-nous -
53 359708 Bracket, Control Appelez-nous -
54 692006 Panel, Control Appelez-nous -
62 599530307 Clip   (Replaces: 90015) Appelez-nous -
63 WP688805 Clip   (Replaces: 688805) In-Stock Immediately $ 8.20

67 694055 Nut, Push-in Appelez-nous -
71 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 8.47

72 690853 Wire, Ground Appelez-nous -
75 353425 Receptacle, 3-way Terminal (use W/94614) Appelez-nous -
75 353424 Plug, 3-way Terminal (use W/94613) Special Order $ 18.95

79 695091 Switch, Temperature Selector Appelez-nous -
81 689857 Button, Push-to-start Appelez-nous -
82 358472 Stop, Push-in (2) Appelez-nous -
83 357645 Rack, Literature Appelez-nous -
84 94613 Terminal, (male) Appelez-nous -
LIT693680 Use & Care Guide Appelez-nous -
LIT693849 Guide, Dryer Appelez-nous -
285368 Platinum Appelez-nous -
285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
261891 Golden Harvest Appelez-nous -
978883 Almond (uncut) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

350941 Leveler (thinner) Appelez-nous -
350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) Appelez-nous -
285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
LIT677813 Automatic Washer (belt Drive) Appelez-nous -
285365 Toast Appelez-nous -
299885 Wire, Splicing 240 Volt Appelez-nous -
261880 Golden Harvest Appelez-nous -
350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

LIT694970 List, Service Parts Appelez-nous -
LIT694344 Instructions, Installation Appelez-nous -
350956 Paint, Spray 13 Oz. (almond) Special Order $ 54.01

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

LIT677971 Ice Maker (in Refrigerator) Appelez-nous -
LIT677967 Dishwasher Appelez-nous -
677821 Compactor   (Replaces: LIT677821) Special Order $ 35.01

LIT677818 Dryer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

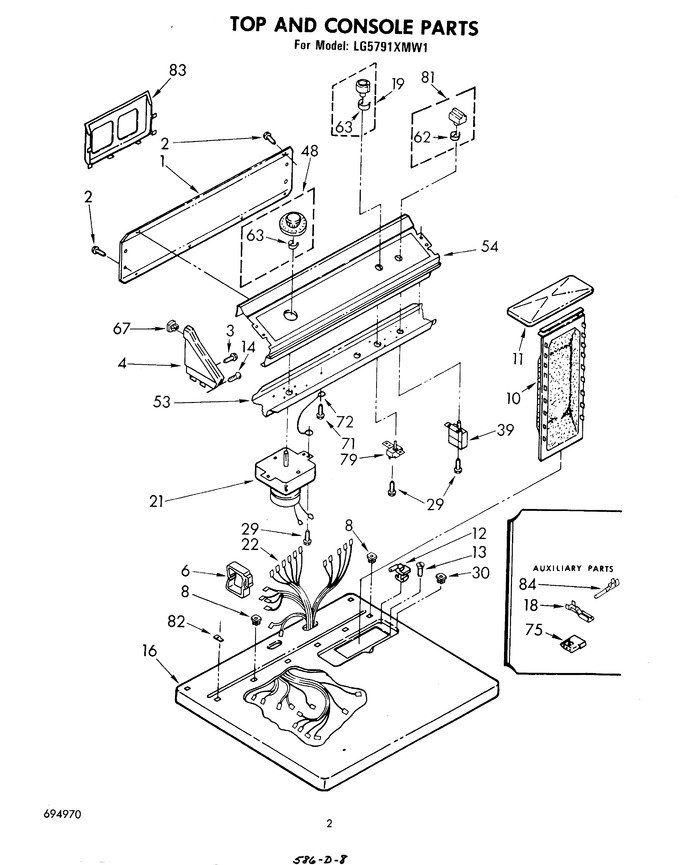

Diagram for LG5791XMW1
