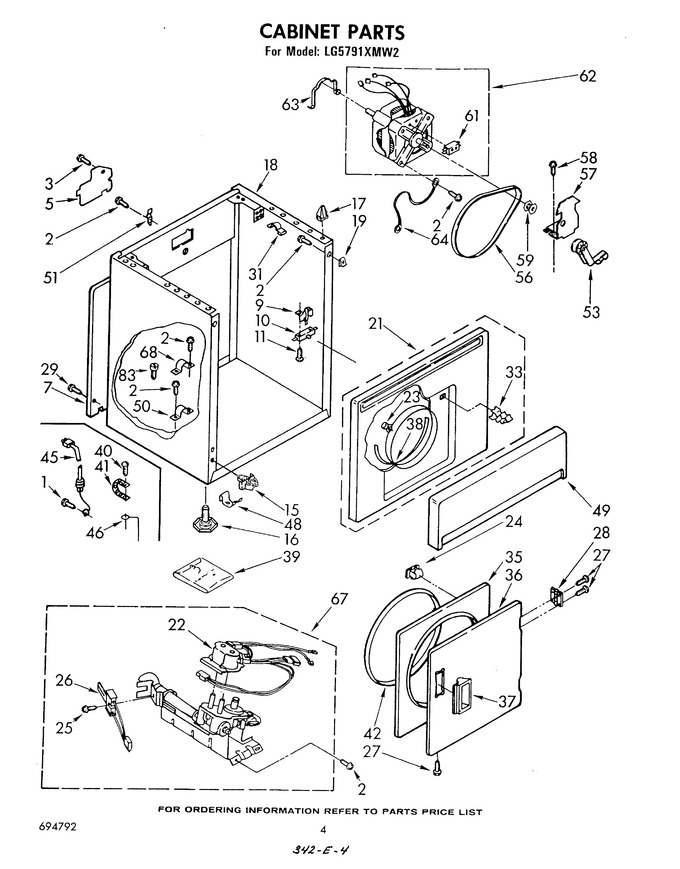

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
3	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 8.47
5	W11736322		Cover, Block   (Replaces: 690893)		Appelez-nous	-
7	347736		Panel, Rear		Appelez-nous	-
9	WP691581		Door Lever   (Replaces: 295998)			Immediately	$ 8.49
10	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
11	WP98129		Screw, 6-20 X 7/8   (Replaces: 98129)				$ 8.18
15	690625		Clip, Toe Panel (2)		Appelez-nous	-
16	49621		Foot, Dryer (plastic) (4)   (Replaces: 688222)			Immediately	$ 8.55
17	WP18776		Locator, Top (2)   (Replaces: 690363)			Immediately	$ 13.31
18	690851		Cabinet (golden Wheat)		Appelez-nous	-
18	690847		Cabinet (white)		Appelez-nous	-
18	690848		Cabinet (almond)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.96
21	693203		Front Panel Assembly (also Includes Illus. 19) (almond)		Appelez-nous	-
21	693202		Front Panel Assembly (also Includes Illus. 19) (white)		Appelez-nous	-
22	279923		Valve, Gas 60 Hz.   (Replaces: 694054)			Immediately	$ 286.03
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 23.55
24	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.89
25	WPW10366705		Lock Screw & Washer (8-32 X 5/8)   (Replaces: 686953)				$ 7.88
26	279311		Ignitor (686590) (alt.)   (Replaces: 660991)			Immediately	$ 78.90
27	WP694091		Screw   (Replaces: 694091)				$ 7.55
28	WP348023		Hinge & Pin Assembly (2)   (Replaces: 348023)				$ 9.32
29	WP489069		Screw, Hex Washer Head (7)   (Replaces: 693994)			Immediately	$ 8.40
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.64
33	279570		Strike, Door   (Replaces: 693717)			Immediately	$ 8.89
35	280077		Door, Rear   (Replaces: 695656)				$ 207.46
36	689314		Door, Front (almond)		Appelez-nous	-
36	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 154.76
37	WP686711		Handle, Door (white)   (Replaces: 686715)			Immediately	$ 8.35
37	689306		Handle, Door (almond)		Appelez-nous	-
38	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 74.52
39	49572A		Conversion Kit (type 1, 2 & 3 To Type 4) (l.p.g.)   (Replaces: 694572)			Immediately	$ 36.19
39	279243		Conversion Kit Type 1 Natural To Type 3 (m.f.d. Gas)		Appelez-nous	-
40	132848		Screw, 10-24 X 1		Appelez-nous	-
41	22965		Strap, Ground		Appelez-nous	-
42	W11613302		Seal, Door   (Replaces: 685763)				$ 56.31
45	W11222083		Cord, Power   (Replaces: 344020)				$ 126.62
46	364089		Wire, Ground		Appelez-nous	-
48	WP297092		Clip, Hinge (2)   (Replaces: 297092)			Immediately	$ 8.95
49	689537		Panel, Toe (almond)		Appelez-nous	-
49	237035		Panel, Toe (white)		Appelez-nous	-
50	695885		Clamp, Pipe (front)		Appelez-nous	-
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 8.21
53	WP691366		Idler & Pulley   (Replaces: 691366)			Immediately	$ 22.47
56	341241		Belt, Drive			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 127.65
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 14.04
59	WP8066184		Pulley, 60 Hz.   (Replaces: 694871)			Immediately	$ 51.02
61	279827		Motor Assembly 60 Hz.   (Replaces: 695075)			Immediately	$ 191.95
61	WP660658		Clamp, Motor 343481 (alt.) 685441 (alt.)   (Replaces: 660658)				$ 8.22
61	279827		Switch (use W/695075 Motor)   (Replaces: 337351)			Immediately	$ 191.95
64	690236		Wire, Ground (motor)		Appelez-nous	-
67	694670		Burner Assembly (60 Hz.) (refer To Pages 8 & 9 For Further Breakdown)		Appelez-nous	-
68	341029		Clamp, Pipe (rear)		Appelez-nous	-
83	343826		Screw, Burner Mounting		Appelez-nous	-
