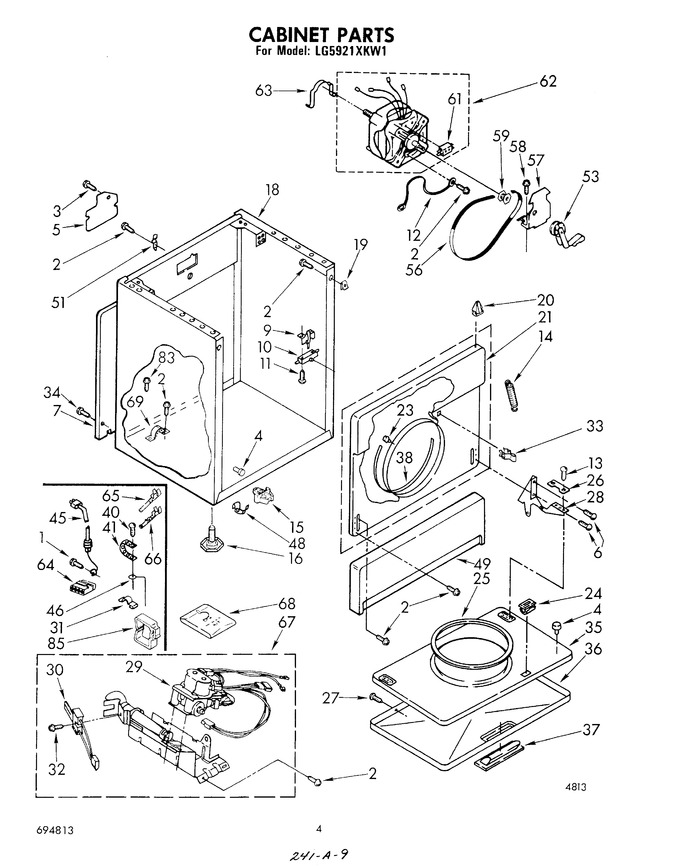

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-32 X 1/2 (ground) (Replaces: 690989) |
|
Immediately | $ 7.85 | ||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 238614 | Bumper |
|
$ 80.76 | |||||
| 5 | W11736322 | Cover, Block (Replaces: 690893) |
|
- | |||||
| 6 | 342043 | Screw, 10-32 X 1/2 |
|
- | |||||
| 7 | 347736 | Panel, Rear |
|
- | |||||
| 9 | WP691581 | Clip, Door Switch (Replaces: 295998) |
|
Immediately | $ 8.09 | ||||
| 10 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 30.50 | ||||
| 11 | WP98129 | Screw, 6-20 X 1-3/8 (Replaces: 98129) |
|
$ 7.56 | |||||
| 12 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 13 | WP308685 | Screw, 10-12 X 1/2 (Replaces: 98518) |
|
Immediately | $ 7.87 | ||||
| 14 | 237979 | Spring, Door (2) |
|
- | |||||
| 15 | 690625 | Clip, Toe Panel (2) |
|
- | |||||
| 16 | 49621 | Foot, Plastic (4) (Replaces: 688222) |
|
Immediately | $ 8.55 | ||||
| 18 | 690851 | Cabinet (golden Harvest) |
|
- | |||||
| 18 | 690847 | Cabinet (white) |
|
- | |||||
| 18 | 690848 | Cabinet (almond) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 20 | WP18776 | Lock, Front Top (Replaces: 688904) |
|
Immediately | $ 12.68 | ||||
| 21 | 689533 | Panel Assembly, Upper Front (almond) |
|
- | |||||
| 21 | 338012 | Panel Assembly, Upper Front (white) |
|
- | |||||
| 21 | 689535 | Panel Assembly, Upper Front (golden Harvest) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 20.65 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 25 | WP3390733 | Seal, Door (Replaces: 685762) |
|
Immediately | $ 115.98 | ||||
| 26 | W11252547 | Clip, Hinge (2) (Replaces: 337189) |
|
$ 21.39 | |||||
| 27 | WP694091 | Screw, 6-18 X 1/2 (Replaces: 694091) |
|
$ 7.19 | |||||
| 28 | 687905 | Hinge, R.h. |
|
- | |||||
| 28 | 687906 | Hinge, L.h. |
|
- | |||||
| 29 | 279923 | Valve, Complete (60 Hz.) (Replaces: 694054) |
|
Immediately | $ 286.03 | ||||
| 30 | 279311 | Ignitor (alt.) (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 30 | 279311 | Ignitor (Replaces: 660991) |
|
Immediately | $ 78.90 | ||||
| 31 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 11.09 | |||||
| 32 | WPW10366705 | Lock Screw & Washer (8-32 X 5/8) (Replaces: 686953) |
|
$ 7.50 | |||||
| 33 | 279570 | Strike, Panel (Replaces: 693717) |
|
Immediately | $ 8.89 | ||||
| 34 | WP489069 | Screw, Hex Washer Head (7) (Replaces: 693994) |
|
Immediately | $ 7.86 | ||||
| 35 | 689258 | Door, Rear (almond) |
|
- | |||||
| 35 | 689261 | Door, Rear (golden Harvest) |
|
- | |||||
| 35 | 346370 | Door, Rear (white) |
|
- | |||||
| 36 | 689330 | Door, Front (almond) |
|
- | |||||
| 36 | 348728 | Door, Front (white) |
|
- | |||||
| 36 | 689333 | Door, Front (golden Harvest) |
|
- | |||||
| 37 | WP348721 | Handle, Door (white) (Replaces: 690265) |
|
$ 77.89 | |||||
| 37 | 690269 | Handle, Door (golden Harvest) |
|
- | |||||
| 37 | 690266 | Handle, Door (almond) |
|
- | |||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349464) |
|
Immediately | $ 74.52 | ||||
| 40 | 132848 | Screw, 10-24 X 1 |
|
- | |||||
| 41 | 22965 | Clamp, Ground |
|
- | |||||
| 45 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 120.59 | |||||
| 46 | 364089 | Wire, Ground |
|
- | |||||
| 48 | WP297092 | Clip, Hinge (2) (Replaces: 297092) |
|
Immediately | $ 8.24 | ||||
| 49 | 689539 | Panel, Toe (golden Harvest) |
|
- | |||||
| 49 | 237035 | Panel, Toe (white) |
|
- | |||||
| 49 | 689537 | Panel, Toe (almond) |
|
- | |||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.82 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 56 | 341241 | Belt, Drive |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 121.57 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 13.37 | ||||
| 59 | WP8066184 | Pulley, 60 Hz. (Replaces: 694871) |
|
Immediately | $ 51.02 | ||||
| 61 | 279827 | Switch (use W/695075 Motor) (Replaces: 337351) |
|
Immediately | $ 191.95 | ||||
| 62 | 279827 | Motor Assembly 60 Hz. (Replaces: 695075) |
|
Immediately | $ 191.95 | ||||
| 63 | WP660658 | Clip, Motor (alternate) (Replaces: 343481) |
|
$ 7.83 | |||||
| 63 | WP660658 | Clip, Motor (alternate) (Replaces: 685441) |
|
$ 7.83 | |||||
| 64 | 353424 | Plug, 3-way (use W/94613) |
|
$ 18.95 | |||||
| 64 | 353425 | Receptacle, 3-way (use W/94614) |
|
- | |||||
| 65 | 94613 | Terminal, (male) |
|
- | |||||
| 66 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 67 | 694670 | Burner Assembly (60 Hz.) (refer To Pages 8 & 9 For Further Breakdown) |
|
- | |||||
| 68 | 279243 | Kit, Conversion Type 1 To Type 3 (mfd) |
|
- | |||||
| 68 | 49572A | Kit, Conversion Type 1, 2 And 3 To Type 4 (lpg) (Replaces: 694572) |
|
Immediately | $ 36.19 | ||||
| 69 | 341029 | Clamp, Pipe |
|
- | |||||
| 83 | 343826 | Screw, Burner Mounting |
|
- | |||||
| 85 | 688412 | Clip, Harness Retainer |
|
- |
