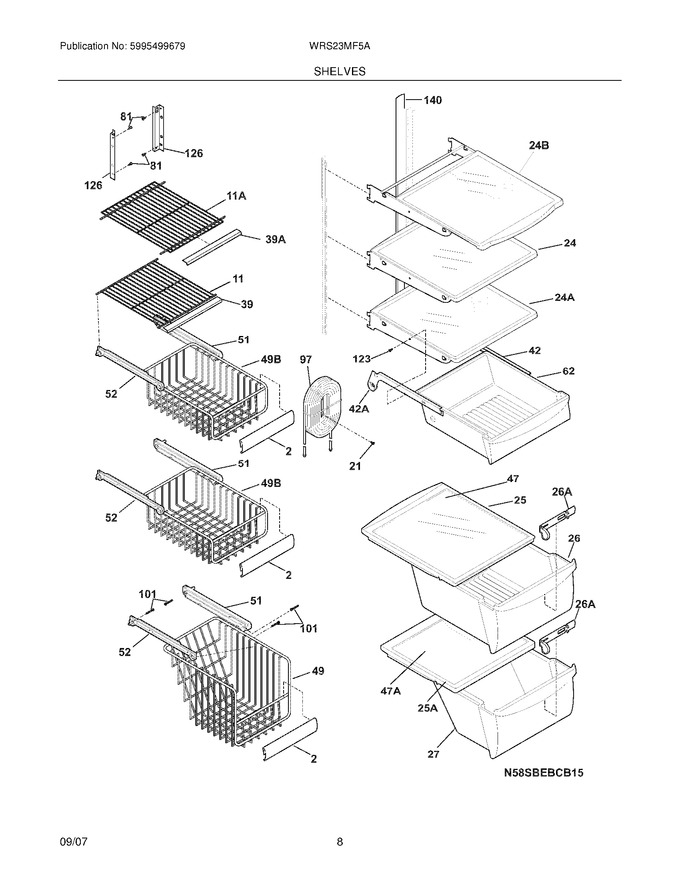

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510603		Trim-basket				$ 63.47
11	241657601		Shelf,flip Up ,wire				$ 88.31
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 16.01
24	240355234		Shelf-``spill-safe``,fixed ,(3)		Appelez-nous	-
25	240354502		Cover-crisper Pan,upper			Immediately	$ 111.13
26	240354712		Pan-crisper,upper		Appelez-nous	-
27	240354813		Pan-crisper,lower		Appelez-nous	-
39	240430705		Trim-shelf,front				$ 60.43
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 63.00
47	240443316		Insert-pan Cover,glass		Appelez-nous	-
49	240530401		Basket-sliding				$ 191.13
51	240343002		Hanger-basket,rh				$ 72.47
52	240343102		Hanger-basket,lh				$ 77.52
62	240355511		Pan-meat		Appelez-nous	-
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
97	240545302		Water Tank Assy,coiled Tubing ,front Filter   (Replaces: 240545303)				$ 311.85
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 14.96
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 16.54
126	241674401		Channel,auger Mtg ,lh				$ 52.76
126	241674402		Channel,auger Mtg ,rh				$ 48.04
140	240430501		Channel,wtr Tube Cover				$ 108.68
11A	5304532464		Shelf,fixed Upper ,freezer   (Replaces: 241657503)		Appelez-nous	-
24A	240355237		Shelf-``spill-safe``,fixed		Appelez-nous	-
24B	240350121		Shelf-``spill-safe``,cantilever ,sliding		Appelez-nous	-
25A	240354602		Cover-crisper Pan,lower				$ 98.29
26A	240351104		Control-humidity		Appelez-nous	-
39A	240430701		Trim-shelf,front				$ 69.30
42A	240356701		Seal-meat Pan				$ 55.57
42A	240349701		Hanger-meat Pan,lh			Immediately	$ 64.58
42A	240349901		Block-meat Pan Rail,lh				$ 67.01
42A	240350001		· Spring-meat Pan Rail				$ 76.55
47A	240350614		Insert-pan Cover,glass				$ 161.78
49B	240530501		Basket-sliding,upper ,half				$ 132.68
NI	240349801		Clip-slide,pan-crisper				$ 22.75
NI	240362101		Clip-slide,cover-crisper				$ 52.25
