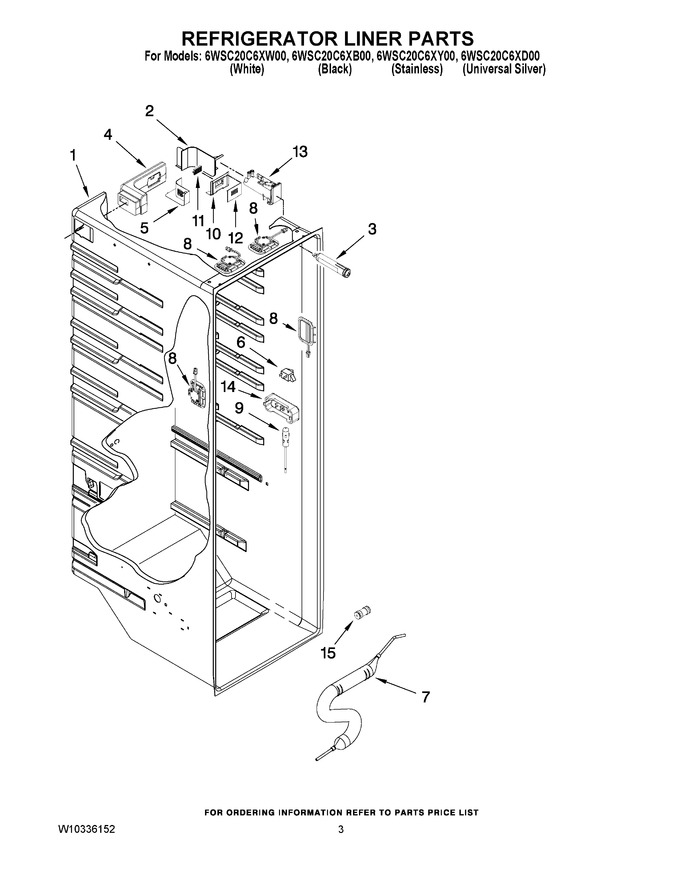

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WPW10260405 | Cover, Water Filter (Replaces: W10260403) |
|
$ 113.11 | |||||
| 3 | EDR1RXD1B | Water Filter (Replaces: W10295370) |
|
Immediately | $ 49.99 | ||||
| 4 | W11162594 | Air Diffuser Assembly (Replaces: W10281161) |
|
- | |||||
| 5 | W10260407 | Air Diffuser Cover |
|
$ 42.69 | |||||
| 6 | W11384469 | Switch Rocker Arm (Replaces: C3680314) |
|
Immediately | $ 37.23 | ||||
| 7 | W11802492 | Reservoir (Replaces: W10238085) |
|
$ 84.68 | |||||
| 8 | W11683241 | Led Light Assy (Replaces: W10279030) |
|
Immediately | $ 259.02 | ||||
| 9 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 32.00 | ||||
| 10 | W10260413 | Air Filter Housing |
|
- | |||||
| 11 | W10311524 | Air Filter (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 12 | W10251520 | Air Filter Cover |
|
- | |||||
| 13 | WPW10238123 | Housing, Water Filter (Replaces: W10238123) |
|
$ 228.39 | |||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10251510) |
|
Immediately | $ 84.17 | ||||
| 15 | WP2300868 | Connector (Replaces: W10271541) |
|
Immediately | $ 29.05 |
