Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP681414 Screw, 10-16 X 1/2   (Replaces: 687128) In-Stock Immediately $ 7.85

2 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.85

3 690236 Wire, Ground (motor) Appelez-nous -
4 238614 Bumper Special Order $ 80.76

5 W11736322 Cover, Block   (Replaces: 690893) Appelez-nous -
6 342043 Screw, 10-32 X 1/2 Appelez-nous -
7 347736 Panel, Rear Appelez-nous -
9 WP691581 Clip, Door Switch   (Replaces: 295998) In-Stock Immediately $ 8.09

10 W10820036 Switch, Door   (Replaces: 347207) In-Stock Immediately $ 30.50

11 WP98129 Screw, 6-20 X 1-3/8   (Replaces: 98129) Special Order $ 7.56

13 WP308685 Screw, 10-12 X 1/2   (Replaces: 98518) In-Stock Immediately $ 7.87

14 237979 Spring, Door (2) Appelez-nous -
15 690625 Clip, Toe Panel (2) Appelez-nous -
16 49621 Foot, Dryer (plastic) (4)   (Replaces: 688222) In-Stock Immediately $ 8.55

18 690847 Cabinet (white) Appelez-nous -
18 690851 Cabinet (golden Harvest) Appelez-nous -
18 690848 Cabinet (almond) Appelez-nous -
18 694875 Cabinet (platinum) Appelez-nous -
18 694874 Cabinet (toast) Appelez-nous -
19 WP98234 Clip, Ground (2)   (Replaces: 98234) In-Stock Immediately $ 11.39

20 WP18776 Lock, Front Top (2)   (Replaces: 688904) In-Stock Immediately $ 12.68

21 689535 Upper Front Panel Assembly (golden Harvest) Appelez-nous -
21 695027 Upper Front Panel Assembly (platinum) Appelez-nous -
21 695026 Upper Front Panel Assembly (toast) Appelez-nous -
21 689533 Upper Front Panel Assembly (almond) Appelez-nous -
21 338012 Upper Front Panel Assembly (white) Appelez-nous -
23 279220 Clip, Felt Pad (2)   (Replaces: 685203) Special Order $ 20.65

24 279570 Catch, Door   (Replaces: 690081) In-Stock Immediately $ 8.89

25 WP3390733 Seal, Door   (Replaces: 685762) In-Stock Immediately $ 115.98

26 W11252547 Clip, Hinge (2)   (Replaces: 337189) Special Order $ 21.39

27 WP694091 Screw   (Replaces: 694091) Special Order $ 7.19

28 687906 Hinge, L.h. Appelez-nous -
28 687905 Hinge, R.h. Appelez-nous -
31 WP98997 Clip, Harness   (Replaces: 98997) Special Order $ 11.09

33 279570 Strike, Panel   (Replaces: 693717) In-Stock Immediately $ 8.89

35 695004 Door, Rear (platinum) Appelez-nous -
35 346370 Door, Rear (white) Appelez-nous -
35 689258 Door, Rear (almond) Appelez-nous -
35 689261 Door, Rear (golden Harvest) Appelez-nous -
35 695003 Door, Rear (toast) Appelez-nous -
36 689330 Door, Front (almond) Appelez-nous -
36 348728 Door, Front (white) Appelez-nous -
36 695035 Door, Front (platinum) Appelez-nous -
36 695034 Door, Front (toast) Appelez-nous -
36 689333 Door, Front (golden Harvest) Appelez-nous -
37 690266 Handle, Door (almond) Appelez-nous -
37 WP348721 Handle, Door (white)   (Replaces: 690265) Special Order $ 77.89

37 695017 Handle, Door (platinum) Appelez-nous -
37 695016 Handle, Door (toast) Appelez-nous -
37 690269 Handle, Door (golden Harvest) Appelez-nous -
38 279264 Seal & Bearing Assembly   (Replaces: 349464) In-Stock Immediately $ 74.52

40 132848 Screw, 10-24 X 1 Appelez-nous -
41 22965 Clamp, Ground Appelez-nous -
45 W11222083 Cord, Power   (Replaces: 344020) Special Order $ 120.59

46 364089 Wire, Ground Appelez-nous -
48 WP297092 Clip, Hinge (2)   (Replaces: 297092) In-Stock Immediately $ 8.24

49 695000 Panel, Toe (platinum) Appelez-nous -
49 694999 Panel, Toe (toast) Appelez-nous -
49 237035 Panel, Toe (white) Appelez-nous -
49 689537 Panel, Toe (almond) Appelez-nous -
49 689539 Panel, Toe (golden Harvest) Appelez-nous -
51 WP8066217 Hinge, Top (2)   (Replaces: 238088) Special Order $ 7.82

53 WP691366 Idler & Pulley Assembly   (Replaces: 691366) In-Stock Immediately $ 22.47

56 341241 Belt, Drive In-Stock Immediately $ 18.15

57 WP348780 Base, Motor   (Replaces: 348780) In-Stock Immediately $ 121.57

58 3400500 Bolt, 5/16-18 X 3/4   (Replaces: 172455) In-Stock Immediately $ 13.37

59 W11233559 Pulley, 60 Hz. (includes Illus. 60)   (Replaces: 685011) Special Order $ 113.89

60 690046 Set Screw Appelez-nous -
61 279827 Switch (use W/690870 Motor)   (Replaces: 337351) In-Stock Immediately $ 191.95

61 279827 Switch ((use W/689788 Motor))   (Replaces: 349588) In-Stock Immediately $ 191.95

62 279827 Motor Assembly, 60 Hz. (alt.)   (Replaces: 690870) In-Stock Immediately $ 191.95

62 279827 Motor Assembly, 60 Hz.   (Replaces: 660199) In-Stock Immediately $ 191.95

62 279827 Motor Assembly 60 Hz. (alt.)   (Replaces: 689788) In-Stock Immediately $ 191.95

63 WP660658 Clamp, Motor (2) (alt.)   (Replaces: 343481) Special Order $ 7.83

63 WP660658 Clamp, Motor (2)   (Replaces: 660658) Special Order $ 7.83

63 WP660658 Clamp, Motor (2) (alt.)   (Replaces: 685441) Special Order $ 7.83

67 688637 Burner Assembly, 60 Hz. (alt.) (refer To Page 7 For Further Breakdown) Appelez-nous -
67 W10402145 Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg)   (Replaces: 239072) Special Order $ 108.77

67 279243 Kit, Conversion (type 1 To Type 3) Appelez-nous -
67 688639 Burner Assembly, 60 Hz. (alt.) (refer To Page 8 For Further Breakdown) Appelez-nous -
68 341029 Clamp, Pipe Appelez-nous -
70 688412 Clip, Retainer Appelez-nous -
83 343826 Screw, Burner Mounting Appelez-nous -
85 WP681414 Screw 10-32 X 1/2   (Replaces: 690989) In-Stock Immediately $ 7.85


    View Diagram in Separate Window     Print Icon   Print Part List

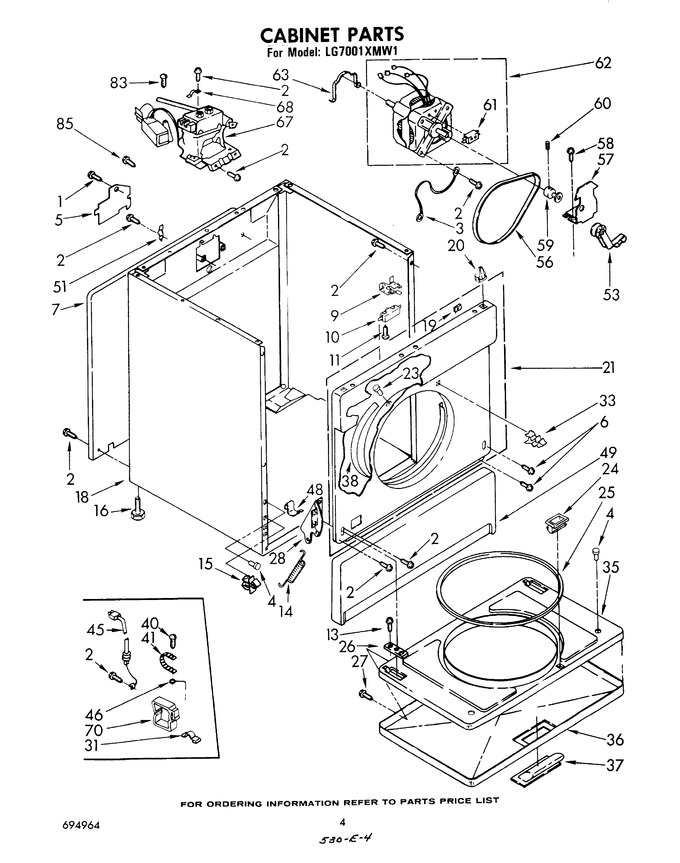

Diagram for LG7001XMW1
