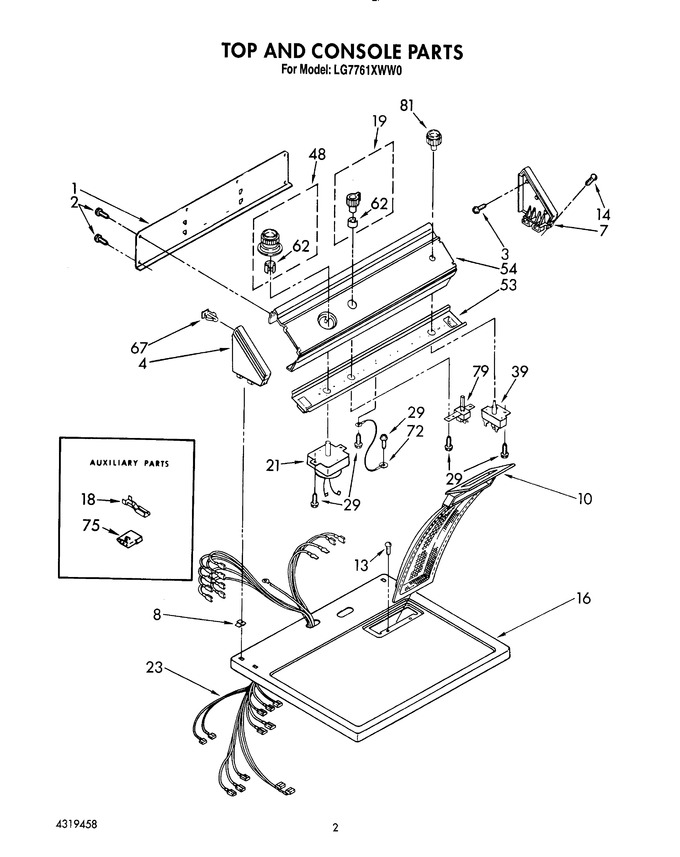

02 - Top And Console, Lit/optional
03 - Cabinet
04 - 9830479 Burner
05 - Bulkhead
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 386367 | Panel, Rear Console |
|
- | |||||
| 2 | 9830116 | Screw, 10-16 X 5/16 |
|
- | |||||
| 3 | 355326 | Screw, 13/16 X 5/8 (4) |
|
- | |||||
| 4 | 63789 | Cap, End (l.h.) |
|
- | |||||
| 7 | 63795 | Cap, End. (r.h.) |
|
$ 14.10 | |||||
| 8 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 10 | W11778253 | Screen, Lint (almond) (Replaces: 689465) |
|
Immediately | $ 52.03 | ||||
| 10 | W11778253 | Screen, Lint (white) (Replaces: 348851) |
|
Immediately | $ 52.03 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | WP388326 | Screw, End Cap To Top (Replaces: 64211) |
|
$ 8.11 | |||||
| 16 | 4319450 | Top (almond) |
|
- | |||||
| 16 | 4319449 | Top (white) |
|
- | |||||
| 18 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 19 | 386635 | Control Knob, Temperature |
|
- | |||||
| 21 | 3391650 | Timer Assembly, 60 Hz. |
|
- | |||||
| 23 | 3393992 | Harness, Wiring |
|
- | |||||
| 29 | WP681414 | Screw, (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 39 | 692021 | (alt.) |
|
- | |||||
| 39 | 660936 | Switch, Push-to-start |
|
- | |||||
| 39 | 346364 | (alt.) |
|
- | |||||
| 48 | 3387900 | Timer Knob Assembly |
|
- | |||||
| 53 | 3394060 | Bracket, Control |
|
- | |||||
| 54 | 9830439 | Panel, Control |
|
- | |||||
| 62 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 67 | 689559 | Clip, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 75 | 691707 | Receptacle, Latching (3-way) (uses Terminal 94614) |
|
- | |||||
| 79 | 694720 | Switch, Temperature |
|
- | |||||
| 81 | 3387894 | Knob, Push-to-start |
|
- | |||||
| LIT3391427 | Guide, Dryer |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | ||||||
| LIT3395320 | Instructions, Installation |
|
- | ||||||
| LIT9830442 | Use & Care Guide |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| LIT4319458 | List, Service Parts |
|
- |
