SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

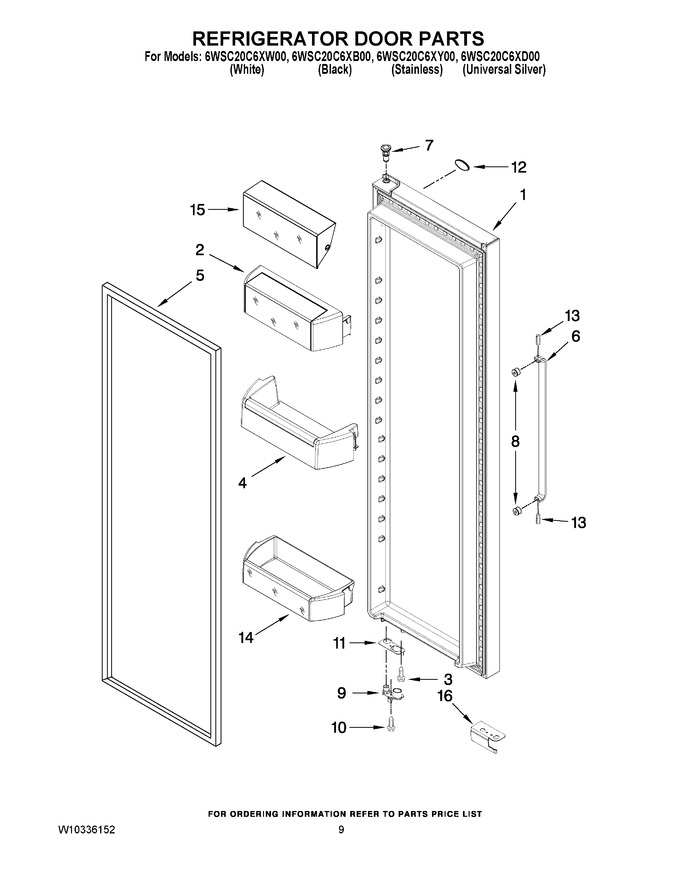

1	W10287401		Refrigerator Door (includes Item 5) (black)		Appelez-nous	-
1	LW10287403		Refrigerator Door (includes Item 5) (stainless)   (Replaces: W10287403)		Appelez-nous	-
1	LW10287413		Refrigerator Door (includes Item 5) (universal Silver)   (Replaces: W10287413)		Appelez-nous	-
1	LW10287400		Refrigerator Door (includes Item 5) (white)   (Replaces: W10287400)		Appelez-nous	-
2	WPW10324760		Door Compartment Assembly   (Replaces: W10326952)				$ 81.52
3	WPW10296816		Screw   (Replaces: W10296816)				$ 7.52
4	W10323228		Door Bin, Shallow		Appelez-nous	-
5	W10355582		Door Gasket, Magnetic (apollo Black)   (Replaces: W10249916)				$ 325.01
5	WPW10249912		Door Gasket, Magnetic (black)   (Replaces: W10249912)				$ 313.50
5	WPW10247884		Door Gasket, Magnetic (mist Beige)   (Replaces: W10247884)				$ 307.59
6	W10851029		Handle   (Replaces: W10277354)		Appelez-nous	-
7	WP2182181		Thimble-top   (Replaces: 2200087)				$ 7.76
8	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
9	WPW10257203		Door Closer, Upper Cam (apollo Grey)   (Replaces: W10257203)				$ 12.34
9	WPW10257201		Door Closer, Upper Cam (black)   (Replaces: W10257201)				$ 12.31
9	WPW10248011		Door Closer, Upper Cam (white)   (Replaces: W10248011)				$ 12.31
10	WPW10296804		Screw   (Replaces: W10296804)				$ 10.85
11	W11037957		Bracket, Door Stop (chrome)   (Replaces: W10247909)				$ 76.42
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
13	W11366418		Set Screw   (Replaces: W10223573)			Immediately	$ 15.79
14	W10323224		Door Bin, Gallon		Appelez-nous	-
15	WPW10324760		Door, Compartment   (Replaces: W10326677)				$ 81.52
16	W11661847		Cover, Door Stop (midnight Grey)   (Replaces: W10257218)			Immediately	$ 30.20
16	W10789144		Cover, Door Stop (white)   (Replaces: W10248013)				$ 18.46
16	W10257216		Cover, Door Stop (black)		Appelez-nous	-
