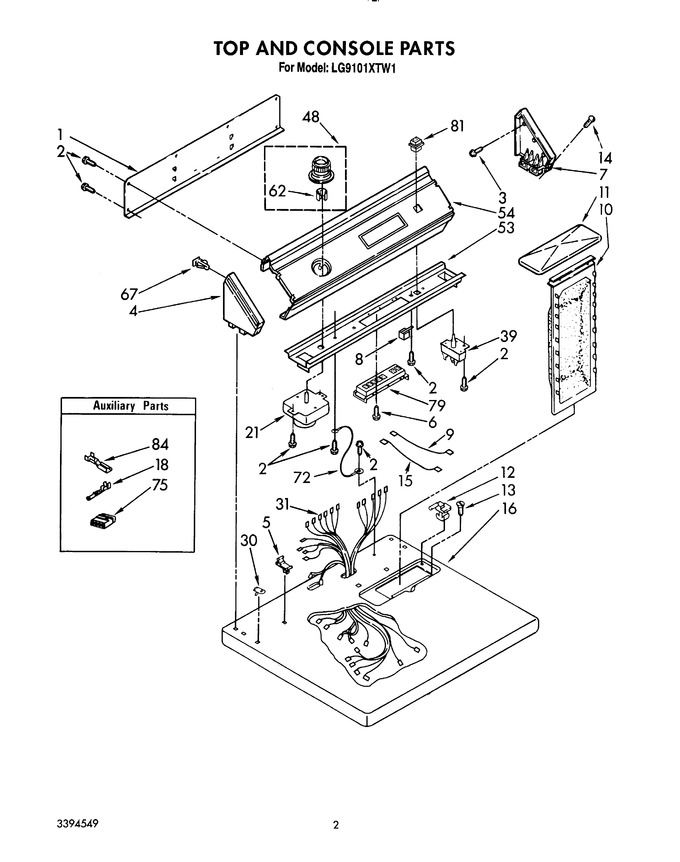

02 - Top And Console, Lit/optional
03 - Cabinet
04 - Bulkhead
05 - Burner Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 386367 | Panel, Rear Console |
|
- | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | 355326 | Screw, 13-16 X 5/8 |
|
- | |||||
| 4 | 63789 | Cap, End (l.h.) |
|
- | |||||
| 5 | 358472 | Stop, Push-in (2) |
|
- | |||||
| 6 | WP273556 | Screw (Replaces: 98881) |
|
Immediately | $ 7.82 | ||||
| 7 | 63795 | Cap, End. (r.h.) |
|
$ 14.10 | |||||
| 8 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 9 | 3393811 | Wire, Jumper (violet) |
|
- | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 7.72 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | WP388326 | Screw, 8-18 X 1 (Replaces: 64211) |
|
$ 8.11 | |||||
| 15 | 3393812 | Wire, Jumper (blue) |
|
- | |||||
| 16 | 3393385 | Top (white) |
|
- | |||||
| 16 | 3393386 | Top (almond) |
|
- | |||||
| 18 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 21 | 3394762 | Timer Assembly, 60 Hz. |
|
$ 171.23 | |||||
| 30 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 31 | 3394616 | Harness, Wiring |
|
- | |||||
| 39 | 348314 | Switch, Push To Start |
|
- | |||||
| 48 | 3387900 | Timer Knob & Dial |
|
- | |||||
| 53 | 3391255 | Bracket, Control |
|
- | |||||
| 54 | 3391305 | Panel, Control |
|
- | |||||
| 62 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 67 | 689559 | Nut, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 75 | 691707 | Receptacle, 3-way Terminal (use W/94614) |
|
- | |||||
| 79 | 3393926 | Switch, Clean Touch |
|
- | |||||
| 81 | 3391230 | Knob, Push To Start |
|
- | |||||
| 84 | 94613 | Terminal |
|
- | |||||
| LIT3391372 | Use & Care Guide |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| LIT3394549 | List, Service Parts |
|
- | ||||||
| LIT3395305 | Instructions, Installation |
|
- | ||||||
| LIT3391427 | Guide, Dryer |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| LIT677813 | Automatic Washer (belt Drive) |
|
- | ||||||
| LIT677818 | Dryer |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- |
