SELECT A DIAGRAM

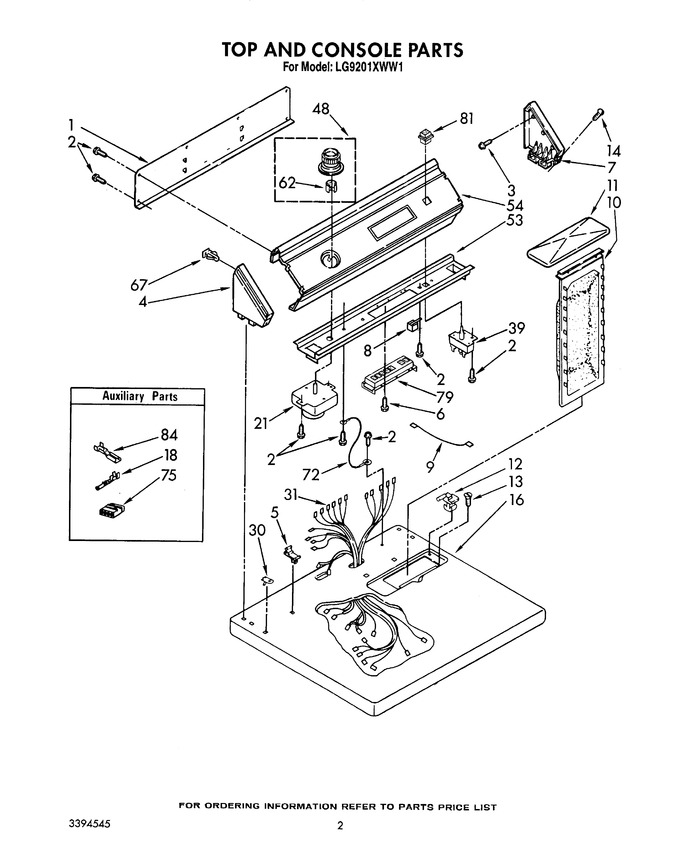

02 - Top And Console, Lit/optional


03 - Cabinet


04 - Bulkhead


05 - 694670 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	386367		Panel, Rear Console		Appelez-nous	-
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	63789		Cap, End (l.h.)		Appelez-nous	-
5	358472		Stop, Push-in (2)		Appelez-nous	-
6	WP273556		Screw   (Replaces: 98881)			Immediately	$ 7.82
7	63795		Cap, End. (r.h.)				$ 14.10
8	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
9	3393812		Wire, Jumper (blue)		Appelez-nous	-
9	3393811		Wire, Jumper (violet)		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	WP388326		Screw, 8-18 X 1   (Replaces: 64211)				$ 8.11
16	3393386		Top (almond)		Appelez-nous	-
16	3393385		Top (white)		Appelez-nous	-
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
21	3394762		Timer Assembly, 60 Hz.				$ 171.23
30	358473		Nut, Push-in (2)				$ 5.84
31	3394616		Harness, Wiring		Appelez-nous	-
39	348314		Switch, Push To Start		Appelez-nous	-
48	3387900		Timer Knob & Dial		Appelez-nous	-
53	3391255		Bracket, Control		Appelez-nous	-
54	3391306		Panel, Control		Appelez-nous	-
62	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
67	689559		Nut, Push-on (4)		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
75	691707		Receptacle, 3-way Terminal (use W/94614)		Appelez-nous	-
79	3393926		Switch, Clean Touch		Appelez-nous	-
81	3391230		Knob, Push To Start		Appelez-nous	-
84	94613		Terminal		Appelez-nous	-
	LIT3391427		Guide, Dryer		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	LIT3394545		List, Service Parts		Appelez-nous	-
	LIT3393137		Instructions, Installation		Appelez-nous	-
	LIT3391367		Use & Care Guide		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	LIT677813		Automatic Washer (belt Drive)		Appelez-nous	-
	LIT677971		Ice Maker (in Refrigerator)		Appelez-nous	-
	LIT677967		Dishwasher		Appelez-nous	-
	677821		Compactor   (Replaces: LIT677821)				$ 35.01
	LIT677818		Dryer		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
