02 - Top And Console , Literature And Optional
03 - Cabinet

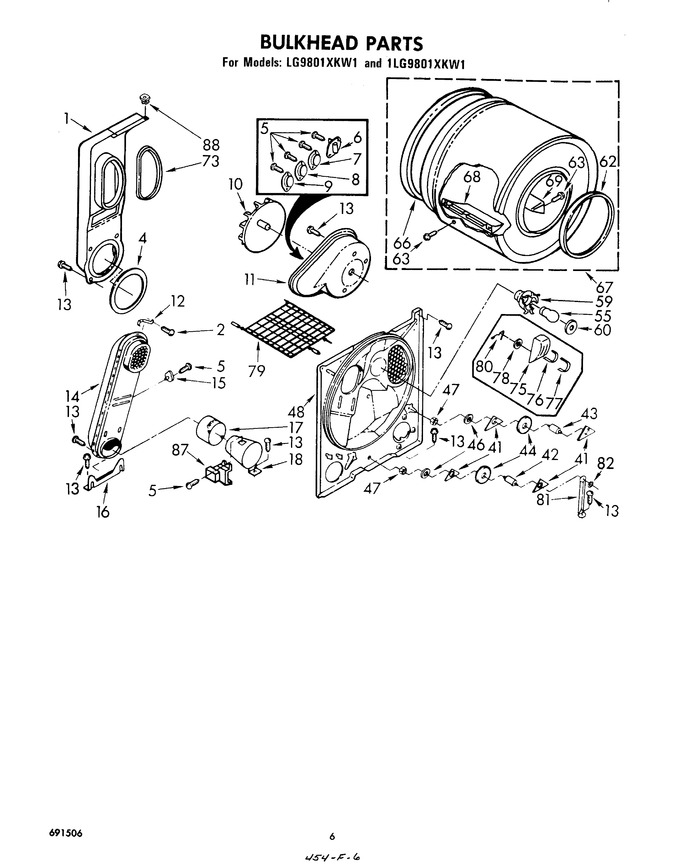

04 - Bulkhead
05 - 688637 Burner
06 - 688639 Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 348368) |
|
$ 175.01 | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.85 | ||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | WP3390719 | Fuse, Thermal (Replaces: 690198) |
|
Immediately | $ 31.57 | ||||
| 6 | WP3390719 | Fuse, Thermal (Replaces: 688841) |
|
Immediately | $ 31.57 | ||||
| 7 | WP694674 | Operating Thermostat, 155~f (68~c) (alternate) (Replaces: 299620) |
|
Immediately | $ 50.51 | ||||
| 7 | LS2-155 | Operating Thermostat, 155~f (68~c) (alternate) (Replaces: 341199) |
|
Immediately | $ 27.33 | ||||
| 8 | WP694674 | Operating Thermostat, 150~f (66~c) (Replaces: 690032) |
|
Immediately | $ 50.51 | ||||
| 9 | 690031 | Operating Thermostat, 140~f (60~c) |
|
- | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 343939) |
|
Immediately | $ 37.66 | ||||
| 11 | 348493 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 337272) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | 279900 | Box, Heater (Replaces: 685458) |
|
$ 344.36 | |||||
| 15 | 338471 | High Limit Thermostat, 205~f (96~c) (alternate) |
|
- | |||||
| 15 | 341196 | High Limit Thermostat, 205~f (96~c) (alternate) |
|
$ 33.17 | |||||
| 16 | 348484 | Support, Heater Box |
|
- | |||||
| 17 | 279900 | Collar, Funnel (Replaces: 348516) |
|
$ 344.36 | |||||
| 18 | 279900 | Funnel, Burner (Replaces: 347389) |
|
$ 344.36 | |||||
| 41 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller, Support (Replaces: 349241) |
|
Immediately | $ 29.53 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 47 | 120377 | Nut, 3/8-16 |
|
- | |||||
| 48 | 685817 | Bulkhead |
|
- | |||||
| 55 | 8009 | Lamp, Bulb (Replaces: 247591) |
|
Immediately | $ 18.67 | ||||
| 59 | 691034 | Socket Assembly |
|
- | |||||
| 60 | 341165 | Lens, Drum Light |
|
- | |||||
| 62 | WP3394509 | Ring, Bearing (Replaces: 337651) |
|
$ 125.38 | |||||
| 63 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 66 | 279408 | Seal, Rear Drum (Replaces: 347885) |
|
$ 73.58 | |||||
| 67 | 347875 | Drum Assembly |
|
- | |||||
| 68 | 347892 | Baffle, Drum (long) (2) |
|
- | |||||
| 69 | 348868 | Baffle, Drum (short) (1) |
|
- | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 75 | 279366 | Pad, Sensor (Replaces: 348861) |
|
$ 95.85 | |||||
| 76 | WP348859 | Electrode, Inside (Replaces: 348859) |
|
$ 7.98 | |||||
| 77 | WP348860 | Electrode, Outside (Replaces: 348860) |
|
$ 8.05 | |||||
| 78 | WP298877 | Washer, Insulating (Replaces: 298877) |
|
$ 22.58 | |||||
| 79 | 687834 | Dry Rack Assembly |
|
- | |||||
| 80 | WP342267 | Clip, Sensor (Replaces: 342267) |
|
$ 7.75 | |||||
| 81 | W11684613 | Bracket, Shaft (Replaces: 348944) |
|
$ 20.94 | |||||
| 82 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 87 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 88 | 98460 | Nut, Push-in (2) |
|
$ 12.07 |
