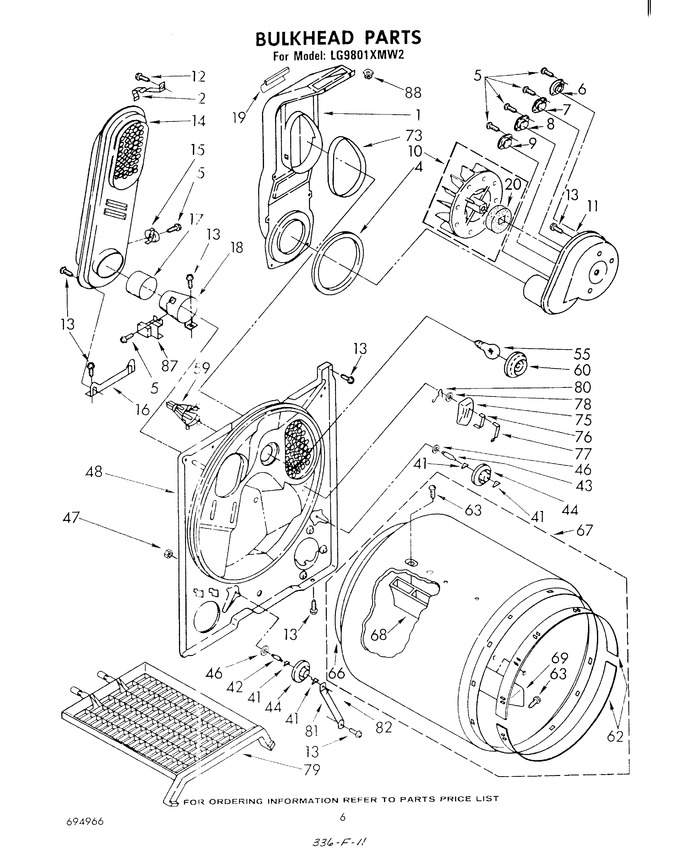

04 - Bulkhead
05 - 694670 Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 348368) |
|
$ 183.76 | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 8.47 | ||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 19.14 | ||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | WP3390719 | Fuse, Thermal (alt.) (Replaces: 690198) |
|
Immediately | $ 31.57 | ||||
| 6 | WP3390719 | Fuse, Thermal (alt.) (Replaces: 688841) |
|
Immediately | $ 31.57 | ||||
| 6 | WP3390719 | Fuse, Thermal (Replaces: 660877) |
|
Immediately | $ 31.57 | ||||
| 7 | AT022 | Thermostat, Operating 155~f (68~c) (Replaces: 660073) |
|
Immediately | $ 35.17 | ||||
| 7 | WP694674 | Thermostat, Operating 155~f (68~c) (alt.) (Replaces: 299620) |
|
Immediately | $ 50.51 | ||||
| 7 | LS2-155 | Thermostat, Operating 155~f (68~c) (alt.) (Replaces: 341199) |
|
Immediately | $ 27.33 | ||||
| 8 | WP694674 | Thermostat, Operating 150~f (60~c) (Replaces: 690032) |
|
Immediately | $ 50.51 | ||||
| 9 | 690031 | Thermostat, Operating 140~f (60~c) |
|
- | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 695499) |
|
Immediately | $ 37.66 | ||||
| 11 | 348493 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 337272) |
|
$ 15.05 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 14 | 279900 | Box, Heater (Replaces: 685458) |
|
$ 361.58 | |||||
| 15 | 660036 | Thermostat, High Limit 205~f (96~c) |
|
- | |||||
| 15 | 341196 | Thermostat, High Limit 205~f (96~c) (alt.) |
|
$ 33.17 | |||||
| 15 | 338471 | Thermostat, High Limit 205~f (96~c) (alt.) |
|
- | |||||
| 16 | 348484 | Support, Heater Box |
|
- | |||||
| 17 | 279900 | Collar, Funnel (Replaces: 348516) |
|
$ 361.58 | |||||
| 18 | 279900 | Funnel, Burner (Replaces: 347389) |
|
$ 361.58 | |||||
| 19 | 686770 | Support Protector |
|
- | |||||
| 20 | 694630 | Seal, Blower |
|
- | |||||
| 41 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller, Support (Replaces: 349241) |
|
Immediately | $ 29.53 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.55 | |||||
| 47 | 120377 | Nut, 3/8-16 |
|
- | |||||
| 48 | 685817 | Bulkhead |
|
- | |||||
| 55 | 8009 | Lamp, Bulb (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 59 | 691034 | Socket Assembly |
|
- | |||||
| 60 | 341165 | Lens, Drum Light |
|
- | |||||
| 62 | 279441 | Ring, Bearing |
|
Immediately | $ 66.22 | ||||
| 63 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 66 | 279408 | Seal, Rear Drum (Replaces: 347885) |
|
$ 73.58 | |||||
| 67 | 692492 | Drum Assembly |
|
- | |||||
| 68 | WP692490 | Baffle, Drum (long) (2) (Replaces: 692490) |
|
$ 167.23 | |||||
| 69 | WP3403636 | Baffle, Drum (short) (1) (Replaces: 692491) |
|
$ 145.59 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 9.06 | ||||
| 75 | 279366 | Pad, Sensor (Replaces: 348861) |
|
$ 100.64 | |||||
| 76 | WP348859 | Electrode, Inside (Replaces: 348859) |
|
$ 8.38 | |||||
| 77 | WP348860 | Electrode, Outside (Replaces: 348860) |
|
$ 8.45 | |||||
| 78 | WP298877 | Washer, Insulating (Replaces: 298877) |
|
$ 23.71 | |||||
| 79 | 692990 | Dry Rack Assembly |
|
- | |||||
| 80 | WP342267 | Clip, Sensor (Replaces: 342267) |
|
$ 8.14 | |||||
| 81 | W11684613 | Bracket, Shaft (Replaces: 348944) |
|
$ 21.99 | |||||
| 82 | WP90296 | Clip (Replaces: 90296) |
|
$ 8.24 | |||||
| 87 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 88 | 98460 | Nut, Push-in (2) |
|
$ 12.07 |
