SELECT A DIAGRAM

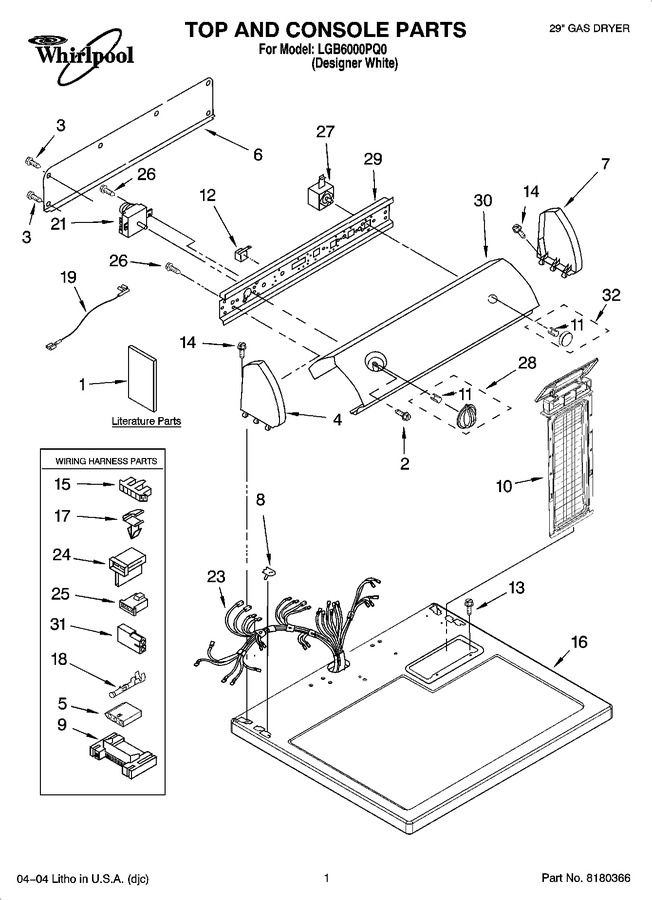

01 - Top And Console Parts


02 - Cabinet Parts


03 - 8318272 Burner Assembly


04 - Bulkhead Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8528187		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT677818		Literature Parts (dryer)		Appelez-nous	-
1	N/A		Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT8533770		Literature Parts (sheet, Cycle Feature)		Appelez-nous	-
1	LIT8522243		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8535830		Literature Parts (installation Instructions)		Appelez-nous	-
2	3400859		Screw, Grounding				$ 13.88
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3936144		Connector				$ 21.22
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	8271359		Cap, End (r.h.)		Appelez-nous	-
8	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
9	3395683		Housing, Connector (motor)			Immediately	$ 54.45
10	W10874409		Screen, Lint   (Replaces: 8557861)			Immediately	$ 67.01
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
15	3397269		Connector, Timer				$ 25.55
16	8557930		Top		Appelez-nous	-
17	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
19	3393815		Jumper Wire (light-blue)		Appelez-nous	-
19	3393814		Jumper, Wire (black)		Appelez-nous	-
21	WP3976584		Timer Assembly (60 Hz.)   (Replaces: 3976584)				$ 380.18
23	8299876		Harness, Wiring		Appelez-nous	-
24	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
25	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
26	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
27	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
28	8544955		Timer Knob Assembly				$ 41.86
29	8271418		Bracket, Control				$ 57.15
30	8545963		Panel, Control		Appelez-nous	-
31	717252		Receptacle, Latching (2-way)		Appelez-nous	-
32	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
32	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
32	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85
32	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
32	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 12.34
32	WP689790		Dry Rack   (Replaces: 689790)				$ 60.22
32	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
32	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
32	WP8544939		Knob, Push-to-start   (Replaces: 8544939)				$ 52.44
32	N/A		Accessory Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
