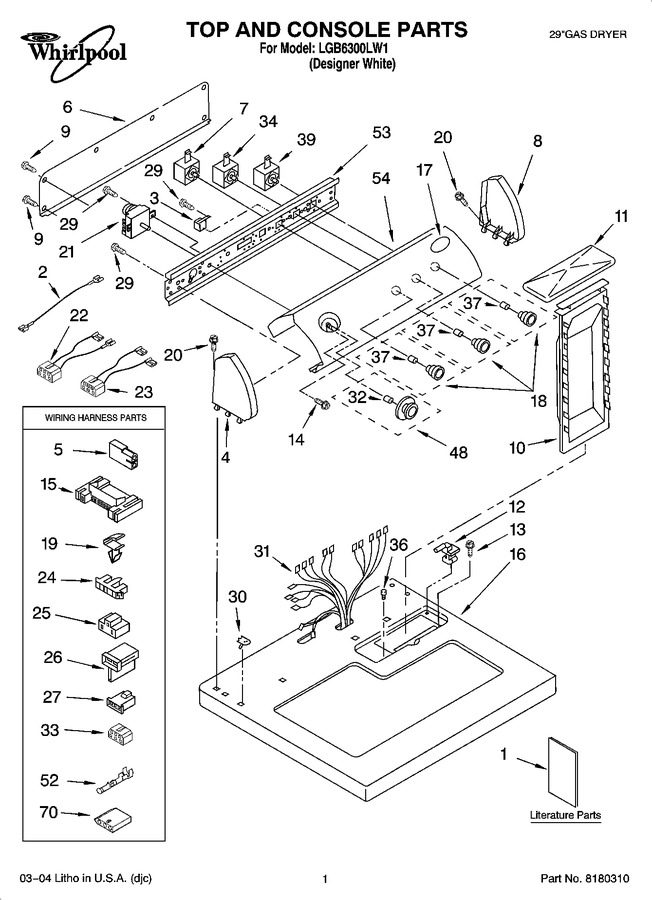

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8522243		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT677818		Literature Parts (dryer)		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT3979703		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT8535830		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8535823		Literature Parts (sheet, Cycle Feature)		Appelez-nous	-
2	3401684		Wire, Jumper (black)				$ 34.57
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 124.91
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Grounding				$ 13.22
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8271390		Top		Appelez-nous	-
17	3955775		Medallion		Appelez-nous	-
18	WP8538957		Knob, Control (3)   (Replaces: 8538957)				$ 55.74
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
20	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
21	WP8299766		Timer Assembly (60 Hz.)   (Replaces: 8299766)				$ 370.70
22	3397695		Wire, Jumper (guard On/off)				$ 86.40
23	8539893		Wire, Jumper (temperature)   (Replaces: 3396029)				$ 18.84
24	3397269		Connector, Timer				$ 25.55
25	3401144		Connector, (pts Relay)				$ 12.20
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	8299879		Harness, Wiring		Appelez-nous	-
32	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
33	3347243		Connector 6-circuit		Appelez-nous	-
34	WP3405156		Switch, Wrinkle Shield   (Replaces: 3405156)				$ 145.51
36	297535		Bumper, Lint Lid		Appelez-nous	-
37	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
39	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
48	WP8557455		Timer Knob Assembly   (Replaces: 8538953)				$ 56.77
52	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
53	8271418		Bracket, Control				$ 57.15
54	8532609		Panel, Control (includes Illus. 17)		Appelez-nous	-
70	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
70	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
70	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
70	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
70	3936144		Connector				$ 20.21
70	N/A		Accessory Parts		Appelez-nous	-
70	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85
70	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
70	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 11.75
70	3406839		Dry Rack			Immediately	$ 65.68
