SELECT A DIAGRAM
01 - Top And Console, Lit/optional
02 - Cabinet
03 - 694670 Burner Assembly

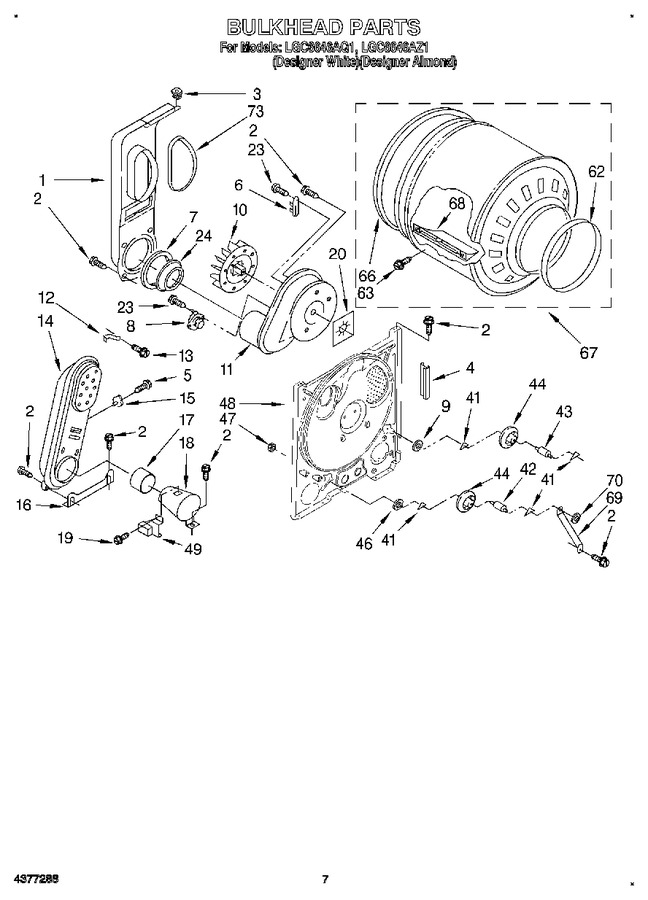

04 - Bulkhead
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 3396352) |
|
$ 175.01 | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 3 | 98460 | Nut, Push-in |
|
$ 12.07 | |||||
| 4 | 686889 | Pad, Cabinet |
|
- | |||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 7 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 8 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387139) |
|
Immediately | $ 35.90 | ||||
| 9 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.47 | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | 695081 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 14.33 | |||||
| 13 | WP489463 | Screw, 8-18 X 3/4 (Replaces: 3400800) |
|
$ 7.82 | |||||
| 14 | 279900 | Box, Heater (Replaces: 685458) |
|
$ 344.36 | |||||
| 15 | 660036 | Thermostat, 205 F (96 C) |
|
- | |||||
| 15 | 338471 | (alt.) |
|
- | |||||
| 15 | 341196 | (alt.) |
|
$ 33.17 | |||||
| 16 | 348484 | Support, Heater Box |
|
- | |||||
| 17 | 279900 | Collar, Funnel (Replaces: 348516) |
|
$ 344.36 | |||||
| 18 | 279900 | Funnel, Burner (Replaces: 347389) |
|
$ 344.36 | |||||
| 19 | WP3390631 | Screw (Replaces: 339554) |
|
$ 7.82 | |||||
| 20 | 3392123 | Seal, Blower |
|
- | |||||
| 23 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 695239) |
|
Immediately | $ 10.72 | ||||
| 24 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 22.29 | |||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller, Support (Replaces: 3397588) |
|
Immediately | $ 29.53 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 47 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 48 | 3399664 | Bulkhead |
|
- | |||||
| 49 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 62 | WP3394509 | Ring, Bearing (Replaces: 3394509) |
|
$ 125.38 | |||||
| 63 | WPW10109200 | Screw, 11-16 X 7/8 (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 66 | 3397509 | Seal, Rear Drum |
|
- | |||||
| 67 | 3396778 | Drum Assembly |
|
- | |||||
| 68 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 146.98 | |||||
| 69 | 348945 | Bracket, Support |
|
- | |||||
| 70 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 73 | 3398160 | Seal |
|
- |
