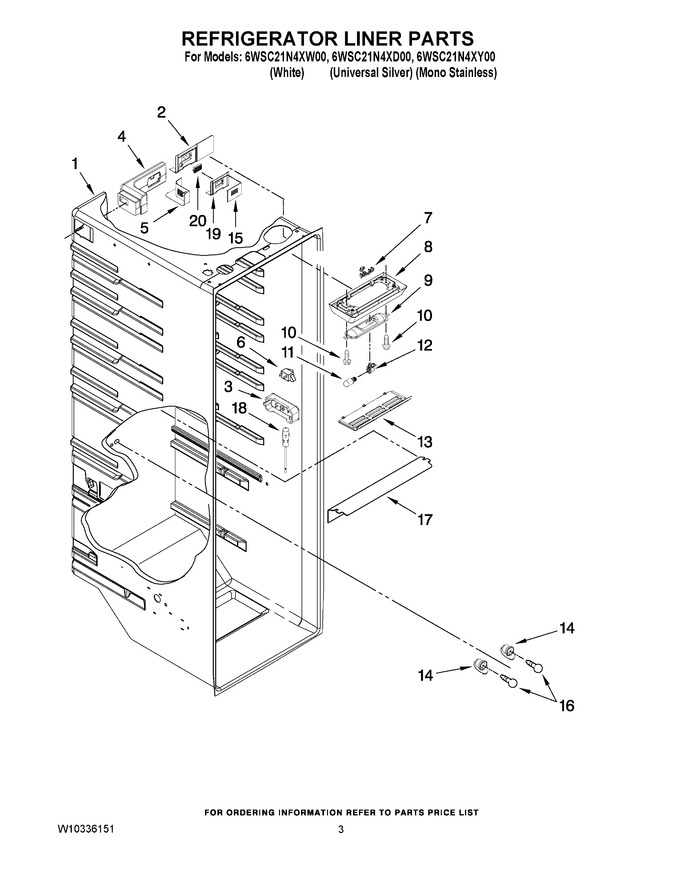

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10300455		Support, Air Filter		Appelez-nous	-
3	WPW10425252		Cover, Thermistor   (Replaces: W10260399)			Immediately	$ 84.17
4	W11162594		Air Diffuser Assembly   (Replaces: W10281161)		Appelez-nous	-
5	WPW10260409		Air Diffuser Cover   (Replaces: W10260409)				$ 81.28
6	W11384469		Switch Rocker Arm   (Replaces: C3680314)			Immediately	$ 37.23
7	W10279406		Wire Assy, Top Light		Appelez-nous	-
8	W10280178		Trim, Light		Appelez-nous	-
9	2223680		Shield, Heat				$ 89.07
10	WP3400906		Screw   (Replaces: W10141632)				$ 7.84
11	W11618980		Light Bulb   (Replaces: W10173035)				$ 21.35
12	W11661565		Socket, Light   (Replaces: W10130033)			Immediately	$ 34.11
13	W10280420		Lens, Top Light				$ 102.04
14	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 13.21
15	W10251520		Air Filter Cover		Appelez-nous	-
16	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
17	WPW10269099		Lens, Light   (Replaces: W10295024)				$ 121.91
18	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 32.00
19	W10342986		Air Filter Housing		Appelez-nous	-
20	W10311524		Air Filter   (Replaces: W10315189)			Immediately	$ 14.34
