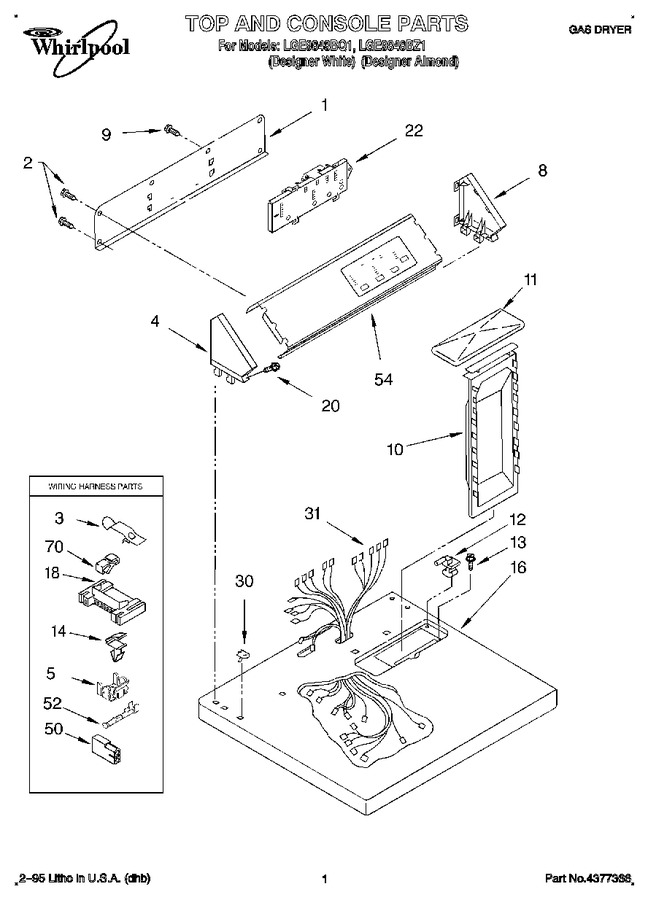

01 - Top And Console, Lit/optional
02 - Cabinet
03 - Bulkhead
04 - 694670 Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3401176 | Panel, Rear Console |
|
- | |||||
| 2 | WP489069 | Screw, 10-16 X 1/2 (Replaces: 693994) |
|
Immediately | $ 8.40 | ||||
| 3 | 357144 | Clip, Wire |
|
- | |||||
| 4 | 3358531 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 3358532 | Cap, End (l.h.) (almond) |
|
- | |||||
| 5 | 3397658 | Clip, Ground |
|
- | |||||
| 8 | 3358516 | Cap, End (r.h.) (white) |
|
- | |||||
| 8 | 3358517 | Cap, End (r.h.) (almond) |
|
- | |||||
| 9 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 10 | WP349639 | Handle & Lint Screen Assembly (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 16 | 3396022 | Top (white) |
|
- | |||||
| 16 | 3396023 | Top (almond) |
|
- | |||||
| 18 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 20 | WP388326 | Screw, Console (Replaces: 3353145) |
|
$ 9.29 | |||||
| 22 | 3398015 | Electronic Control Board |
|
- | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 31 | 3398180 | Harness, Wiring |
|
- | |||||
| 50 | 696669 | Receptacle, 2-way |
|
- | |||||
| 52 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 54 | 3403638 | Panel, Control Bracket Assembly (almond) |
|
- | |||||
| 54 | 3403637 | Panel, Control Bracket Assembly (white) |
|
- | |||||
| 70 | 689180 | Clip, Retainer |
|
- | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| LIT677818 | Dryer |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| LIT3395332 | Instructions, Installation |
|
- | ||||||
| LIT3396304 | Guide, Use & Care |
|
- | ||||||
| LIT3398176 | Label, Wiring Diagram |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Almond (uncut) |
|
- |
