SELECT A DIAGRAM

01 - Cabinet

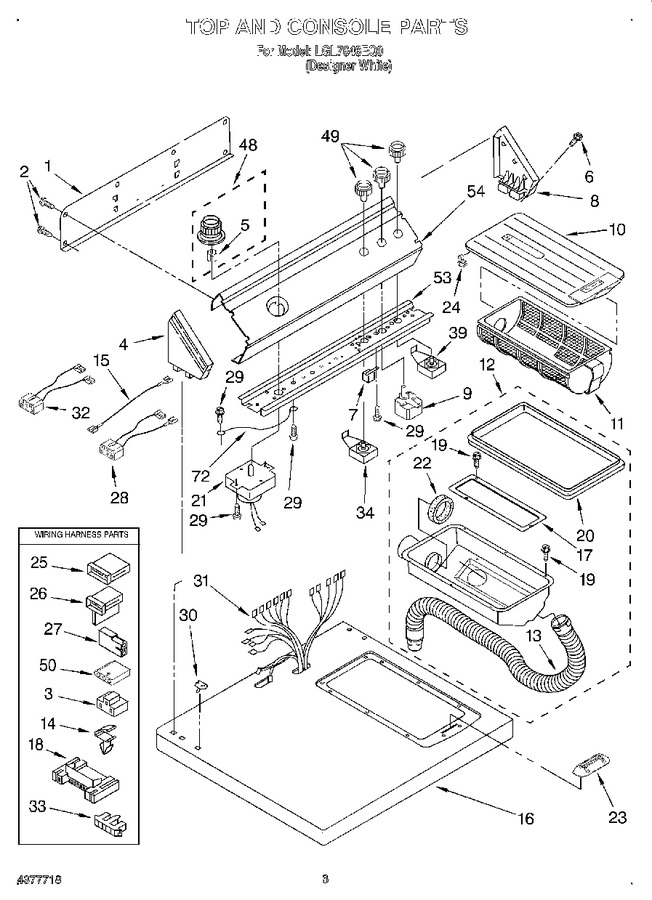

02 - Top And Console, Lit/optional


03 - Bulkhead


04 - 3401771 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
3	3401144		Connector (relay/buzzer)				$ 12.81
4	3358528		Cap, End (l.h.) (white)		Appelez-nous	-
5	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	3358513		Cap, End (r.h.) (white)		Appelez-nous	-
9	WP3405156		Switch, Finish Guard   (Replaces: 3354285)				$ 152.79
10	3403621		Lid Assembly (white)		Appelez-nous	-
11	3399994		Basket, Collector		Appelez-nous	-
12	3405477		Tray Assembly (complete) (also Includes Transport Tube)		Appelez-nous	-
13	3399992		Tube, Recirculation		Appelez-nous	-
14	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
15	3401684		Wire, Jumper (black)				$ 34.57
16	3403611		Top (white)		Appelez-nous	-
17	3403615		Plate, Bottom Tray		Appelez-nous	-
18	3395683		Connector (motor)			Immediately	$ 54.45
19	3400809		Screw, 8-18 X 1/2		Appelez-nous	-
20	3402261		Seal, Lid		Appelez-nous	-
21	WP3976580		Timer, 60 Hz.   (Replaces: 3406048)				$ 333.22
22	3402260		Seal (tray To Basket)		Appelez-nous	-
23	3404451		Magnetic Latch Assembly (white)		Appelez-nous	-
24	3402247		Hinge, Lid (2)		Appelez-nous	-
25	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
27	717252		Plug, 2-way		Appelez-nous	-
28	3397695		Wire, Jumper (guard On/off)				$ 90.72
29	WPW10139210		Screw, Mounting (8-18 X 5/16)   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	3405129		Harness, Wiring		Appelez-nous	-
32	8539893		Wire-jumper Assembly (temperature)   (Replaces: 3396029)				$ 19.78
33	3397269		Connector, Timer				$ 25.55
34	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
39	WP3398095		Relay, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
48	WP3957752		Timer Knob Assembly (white)   (Replaces: 3396146)				$ 56.66
49	WP3957796		Knob, Control (3) (white)   (Replaces: 3358435)			Immediately	$ 57.57
50	353425		Connector (door Switch)		Appelez-nous	-
53	3396293		Bracket, Control		Appelez-nous	-
54	3399053		Panel, Control (white)		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
	LIT3401735		Label, Wiring Diagram		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	LIT3405341		Instructions, Installation		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	LIT3405520		Guide, Use & Care		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
