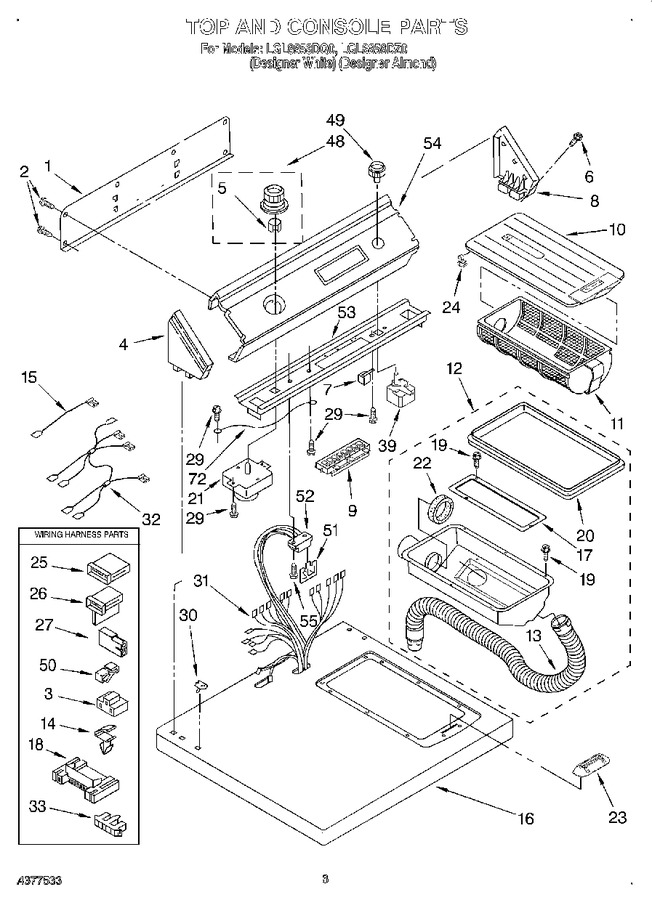

02 - Top And Console, Lit/optional


03 - Bulkhead


04 - 3401771 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
3	3401144		Connector (relay/buzzer)				$ 12.20
4	3358529		Cap, End (l.h.) (almond)		Appelez-nous	-
4	3358528		Cap, End (l.h.) (white)		Appelez-nous	-
5	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
8	3358513		Cap, End (r.h.) (white)		Appelez-nous	-
8	3358514		Cap, End (r.h.) (almond)		Appelez-nous	-
9	3403969		Switch, Clean Touch (white)		Appelez-nous	-
9	3403970		Switch, Clean-touch (almond)		Appelez-nous	-
10	3403622		Lid Assembly (almond)		Appelez-nous	-
10	3403621		Lid Assembly (white)		Appelez-nous	-
11	3399994		Basket, Collector		Appelez-nous	-
12	3402306		Tray Assembly (complete)		Appelez-nous	-
13	3399992		Tube, Recirculation		Appelez-nous	-
14	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
15	3393811		Wire, Jumper (violet)		Appelez-nous	-
15	3393812		Wire, Jumper (blue)		Appelez-nous	-
16	3403611		Top (white)		Appelez-nous	-
16	3403612		Top (almond)		Appelez-nous	-
17	3403615		Plate, Bottom Tray		Appelez-nous	-
18	3395683		Connector (motor)			Immediately	$ 51.86
19	3400809		Screw, 8-18 X 1/2		Appelez-nous	-
20	3402261		Seal, Lid		Appelez-nous	-
21	WP3397273		Timer, 60 Hz.   (Replaces: 3397273)				$ 305.18
22	3402260		Seal (tray To Basket)		Appelez-nous	-
23	3404452		Magnetic Latch Assembly (almond)		Appelez-nous	-
23	3404451		Magnetic Latch Assembly (white)		Appelez-nous	-
24	3402247		Hinge, Lid (2)		Appelez-nous	-
25	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
27	717252		Plug, 2-way		Appelez-nous	-
29	WPW10139210		Screw, Mounting (8-18 X 5/16)   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	3403725		Harness, Wiring		Appelez-nous	-
32	3396032		Wire, Jumper (signal Bypass)		Appelez-nous	-
33	3397269		Connector, Timer				$ 25.55
39	WP3398094		Relay, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
48	WP3957752		Timer Knob Assembly (white)   (Replaces: 3396146)				$ 53.96
48	3957753		Timer Knob Assembly (almond)   (Replaces: 3396149)		Appelez-nous	-
49	WP3957800		Knob, Push To Start (white)   (Replaces: 3396161)				$ 50.40
49	WP3957800		Knob, Push-to-start (almond)   (Replaces: 3396164)				$ 50.40
50	689180		Clip, Retainer		Appelez-nous	-
51	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
52	3391885		Connector, Edge				$ 86.40
53	3396295		Bracket, Control		Appelez-nous	-
54	3398537		Panel, Control (white)		Appelez-nous	-
54	3398538		Panel, Control (almond)		Appelez-nous	-
55	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
72	690853		Wire, Ground		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	LIT677818		Dryer		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
	LIT3403153		Instructions, Installation		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	LIT3401725		Label, Wiring Diagram		Appelez-nous	-
	LIT3401091		Guide, Use & Care		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
