SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Top And Console, Optional

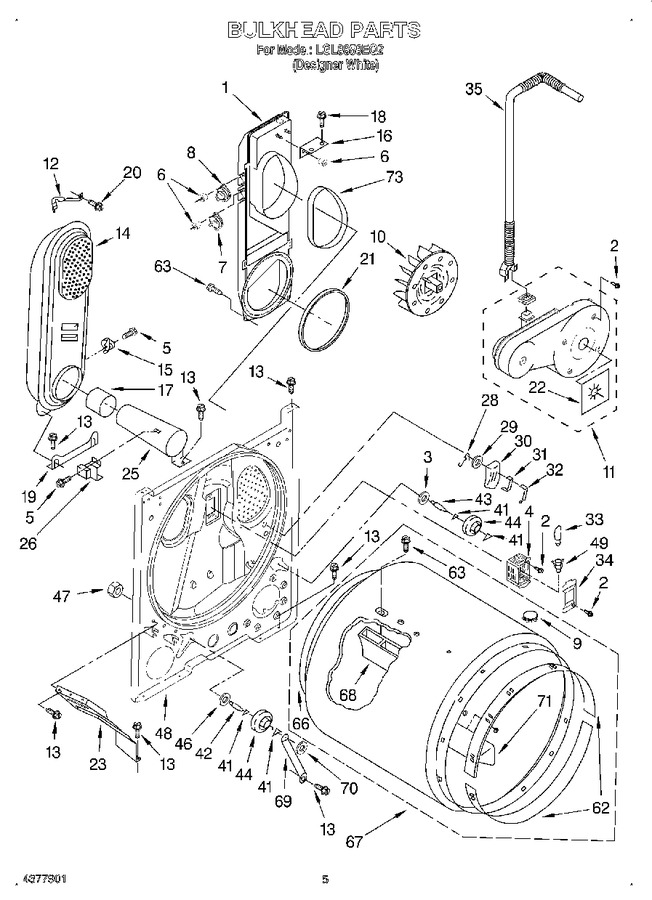

03 - Bulkhead


04 - 3402844 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3403618		Lint Chute Assembly (includes Illus. Nos. 6, 16 & 21)		Appelez-nous	-
2	WP488729		Screw, 10-18 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
3	WP3388703		Washer-support   (Replaces: 3388703)				$ 7.85
4	3977373		Bracket, Drum Light   (Replaces: 3404232)				$ 111.08
5	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
6	WP488130		Nut, 8-32 Hex   (Replaces: 3403606)				$ 7.32
7	WP3392519		Fuse, Thermal   (Replaces: 3392519)			Immediately	$ 24.95
8	WP3398128		Thermostat, Internal Bias   (Replaces: 3398128)			Immediately	$ 139.29
9	8066086		Drum, Hole Plug   (Replaces: 3977358)				$ 11.29
10	WP694089		Wheel, Blower (includes Illus. No. 22)   (Replaces: 694089)			Immediately	$ 37.66
11	3405469		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 3398161)				$ 15.05
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
14	279900		Box, Heater   (Replaces: 685458)				$ 361.58
15	W11050897		Thermostat, 205~f (96.1~c)   (Replaces: 3403140)			Immediately	$ 15.30
16	3403568		Bracket, Lint Chute		Appelez-nous	-
17	279900		Collar, Funnel   (Replaces: 348516)				$ 361.58
18	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
19	348484		Support, Heater Box		Appelez-nous	-
20	WP489463		Screw, 8-18 X 5/8   (Replaces: 489463)				$ 8.25
21	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 19.14
22	3392123		Seal, Blower		Appelez-nous	-
23	W11398682		Bracket, Bulkhead   (Replaces: 3406022)				$ 58.88
25	279900		Funnel, Burner   (Replaces: 347389)				$ 361.58
26	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
28	3394231		Clip, Sensor		Appelez-nous	-
29	WP298877		Washer, Insulating   (Replaces: 298877)				$ 23.71
30	279366		Pad, Sensor   (Replaces: 348861)				$ 100.64
31	WP348859		Electrode, Inside   (Replaces: 348859)				$ 8.38
32	WP348860		Electrode, Outside   (Replaces: 348860)				$ 8.45
33	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 14.85
34	W11226088		Lens, Drum Light   (Replaces: 3403635)				$ 32.64
35	3405475		Transport Tube Assembly		Appelez-nous	-
41	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
42	WPW10359270		Shaft, L.h.   (Replaces: 3399506)			Immediately	$ 72.71
43	WPW10359269		Shaft, R.h.   (Replaces: 3399507)			Immediately	$ 47.30
44	349241T		Roller, Support   (Replaces: 3397588)			Immediately	$ 29.53
46	WP348197		Washer, Support   (Replaces: 348197)				$ 7.55
47	WP3359452		Nut, 3/8-16   (Replaces: 3359452)			Immediately	$ 7.55
48	W10828905		Bulkhead   (Replaces: 3403414)			Immediately	$ 377.27
49	W11700522		Socket Assembly   (Replaces: 3403634)				$ 76.81
62	279441		Ring, Bearing   (Replaces: 692526)			Immediately	$ 66.22
63	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.80
66	W10612022		Seal, Rear Drum   (Replaces: 3406130)			Immediately	$ 57.15
67	W10899578		Drum Assembly   (Replaces: 695587)				$ 375.53
68	WP692490		Baffle, Drum (2)   (Replaces: 692490)				$ 167.23
69	W11684613		Bracket, Support   (Replaces: 3976434)				$ 21.99
70	WP90296		Clip   (Replaces: 90296)				$ 8.24
71	WP3403636		Baffle, Drum (1)   (Replaces: 3403636)				$ 145.59
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 9.06
