SELECT A DIAGRAM

01 - Cabinet, Literature

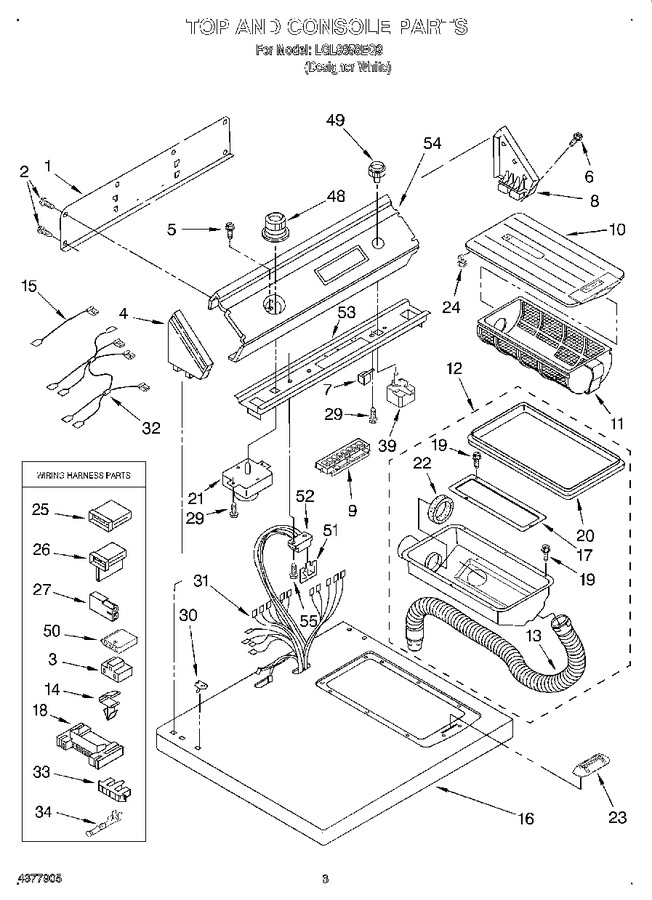

02 - Top And Console, Optional


03 - Bulkhead


04 - 3402844 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
3	3401144		Connector (relay/buzzer)				$ 12.20
4	3358528		Cap, End (l.h.)		Appelez-nous	-
5	3400859		Screw, Grounding (8-18 X 7/32)				$ 13.22
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
8	3358513		Cap, End (r.h.)		Appelez-nous	-
9	3403969		Switch, Clean Touch		Appelez-nous	-
10	3403621		Lid Assembly		Appelez-nous	-
11	3399994		Basket, Collector		Appelez-nous	-
12	3405477		Tray Assembly (complete) (also Includes Transport Tube) (bulkhead Parts Page, Item.35)		Appelez-nous	-
13	3399992		Tube, Recirculation		Appelez-nous	-
14	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
15	3393812		Wire, Jumper (blue)		Appelez-nous	-
15	3393811		Wire, Jumper (violet)		Appelez-nous	-
16	3403611		Top		Appelez-nous	-
17	3403615		Plate, Bottom Tray		Appelez-nous	-
18	3395683		Connector (motor)			Immediately	$ 51.86
19	WP488729		Screw, 8-18 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
20	3402261		Seal, Lid		Appelez-nous	-
21	WP3976570		Timer, 60 Hz.   (Replaces: 3976570)				$ 368.17
22	3402260		Seal (tray To Basket)		Appelez-nous	-
23	3404451		Magnetic Latch Assembly		Appelez-nous	-
24	3402247		Hinge, Lid (2)		Appelez-nous	-
25	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
27	717252		Plug, 2-way		Appelez-nous	-
29	WPW10139210		Screw, Mounting (8-18 X 5/16)   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	3394311		Harness, Wiring		Appelez-nous	-
32	3396032		Wire, Jumper (signal Bypass)		Appelez-nous	-
33	3397269		Connector, Timer				$ 25.55
34	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
39	WP3398094		Relay, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
48	WP3957752		Timer Knob Assembly   (Replaces: 3406143)				$ 53.96
49	WP3957800		Knob, Push-to-start   (Replaces: 3406133)				$ 50.40
50	3936144		Connector				$ 20.21
51	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
52	3391885		Connector, Edge				$ 86.40
53	8054300		Bracket, Control		Appelez-nous	-
54	3976764		Panel, Control		Appelez-nous	-
55	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
55	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
55	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
55	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
55	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
55	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
55	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
55	978883		Almond (uncut)		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
