SELECT A DIAGRAM

01 - Top And Console, Lit/optional


02 - Cabinet


03 - Bulkhead


04 - 3402844 Burner Assembly

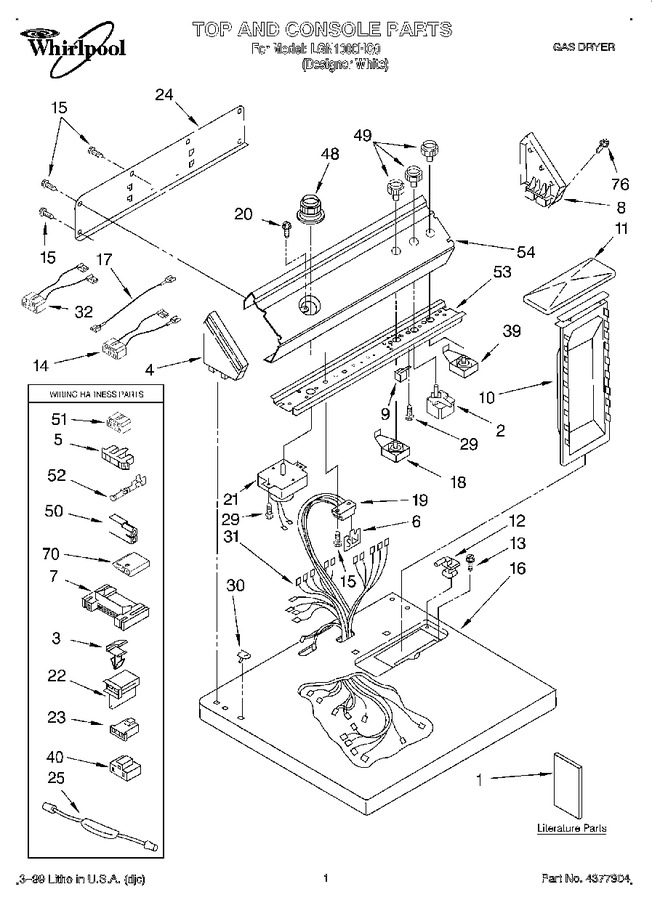

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3405338		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3977704		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
1	LIT3406080		Literature Parts (use & Care Guide)		Appelez-nous	-
2	WP3405156		Switch, Finish Guard   (Replaces: 3405156)				$ 152.79
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
4	3358528		Cap, End (l.h.)		Appelez-nous	-
5	3397269		Connector, Timer				$ 25.55
6	3977407		Control, Electronic		Appelez-nous	-
7	3395683		Housing, Connector (motor)			Immediately	$ 54.45
8	3358513		Cap, End (r.h.)		Appelez-nous	-
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	688150		Cover, Lint Screen		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 8.11
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3397695		Wire, Jumper (guard On/off)				$ 90.72
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
16	3396022		Top		Appelez-nous	-
17	3401684		Wire, Jumper (black)				$ 34.57
18	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
19	3391885		Connector, Edge				$ 90.72
20	3400859		Screw, Grounding				$ 13.88
21	WP3976570		Timer Assembly (60 Hz.)   (Replaces: 3976570)				$ 386.58
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
24	3397545		Panel, Rear Console		Appelez-nous	-
25	8283127		Resistor Assembly		Appelez-nous	-
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	8283129		Harness, Wiring		Appelez-nous	-
32	3977409		Wire-jumper Assembly (temperature)		Appelez-nous	-
39	WP3398095		Relay, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
40	3401144		Connector, (pts Relay)				$ 12.81
48	WP3957752		Timer Knob Assembly   (Replaces: 3406143)				$ 56.66
49	WP3957796		Knob, Push To Start   (Replaces: 3950759)			Immediately	$ 57.57
50	717252		Receptacle, 2 Way		Appelez-nous	-
51	3347243		Connector 6-circuit		Appelez-nous	-
52	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
53	8054298		Bracket, Control		Appelez-nous	-
54	3976768		Panel, Control		Appelez-nous	-
70	3936144		Connector				$ 21.22
76	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
76	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
76	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
76	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
76	978883		Almond (uncut)		Appelez-nous	-
76	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
76	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
76	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
