SELECT A DIAGRAM

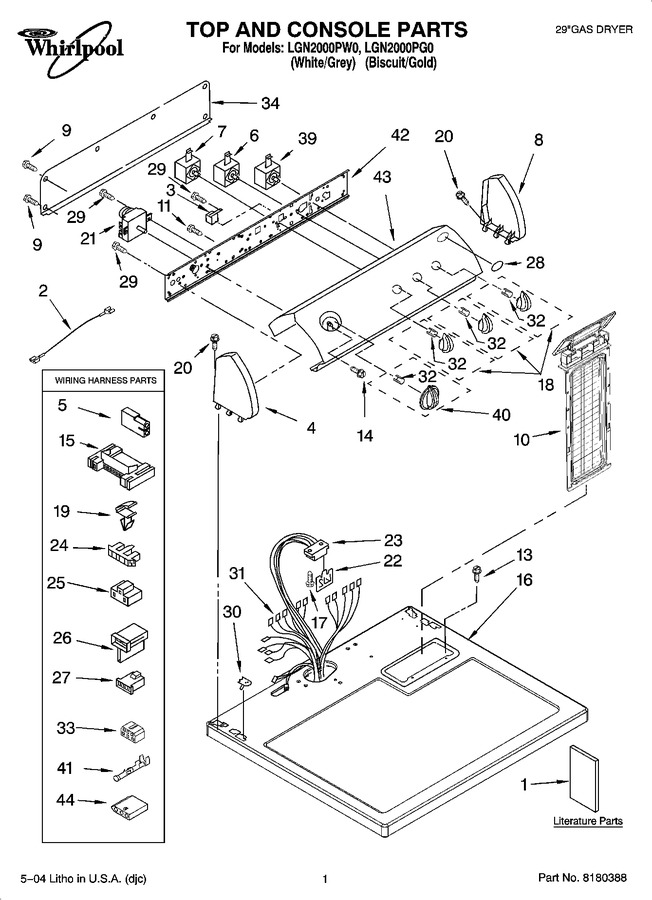

01 - Top And Console Parts Optional Parts (not Included)


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8535832		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT677818		Literature Parts (dryer)		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	LIT3406668		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT3979614		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8533770		Literature Parts (sheet, Cycle Feature)		Appelez-nous	-
2	3401684		Wire, Jumper (black)				$ 34.57
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	3405154		Switch, Wrinkle Guard				$ 160.52
7	8530169		Switch, Temperature				$ 147.06
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	8557858		Screen, Lint (biscuit)		Appelez-nous	-
10	W11778253		Screen, Lint (white)   (Replaces: 8557857)			Immediately	$ 52.03
11	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8557930		Top (white)		Appelez-nous	-
16	8557931		Top (biscuit)		Appelez-nous	-
17	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.06
18	8544938		Knob, Control (3) (biscuit)				$ 22.73
18	8544937		Knob, Control (3) (grey)				$ 24.98
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
20	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
21	WP3406725		Timer Assembly 60 Hz.   (Replaces: 3406725)				$ 368.58
22	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
23	3391885		Connector, Edge				$ 90.72
24	3397269		Connector, Timer				$ 25.55
25	3401144		Connector, (pts Relay)				$ 12.81
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
28	3400985		Medallion		Appelez-nous	-
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	8299890		Harness, Wiring		Appelez-nous	-
32	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
33	3347243		Connector 6-circuit		Appelez-nous	-
34	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
39	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
40	8544958		Timer Knob Assembly (biscuit)		Appelez-nous	-
40	8544957		Timer Knob Assembly (grey)				$ 41.86
41	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
42	8544895		Bracket, Control		Appelez-nous	-
43	8545988		Panel, Control (includes Illus. 28) (grey)		Appelez-nous	-
43	8545989		Panel, Control (includes Illus. 28) (gold)		Appelez-nous	-
44	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
44	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
44	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
44	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
44	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 11.75
44	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
44	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
44	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
44	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
44	3936144		Connector				$ 21.22
44	N/A		Accessory Parts		Appelez-nous	-
44	3406839		Dry Rack			Immediately	$ 65.68
44	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85

    View Diagram in Separate Window       Print Part List
