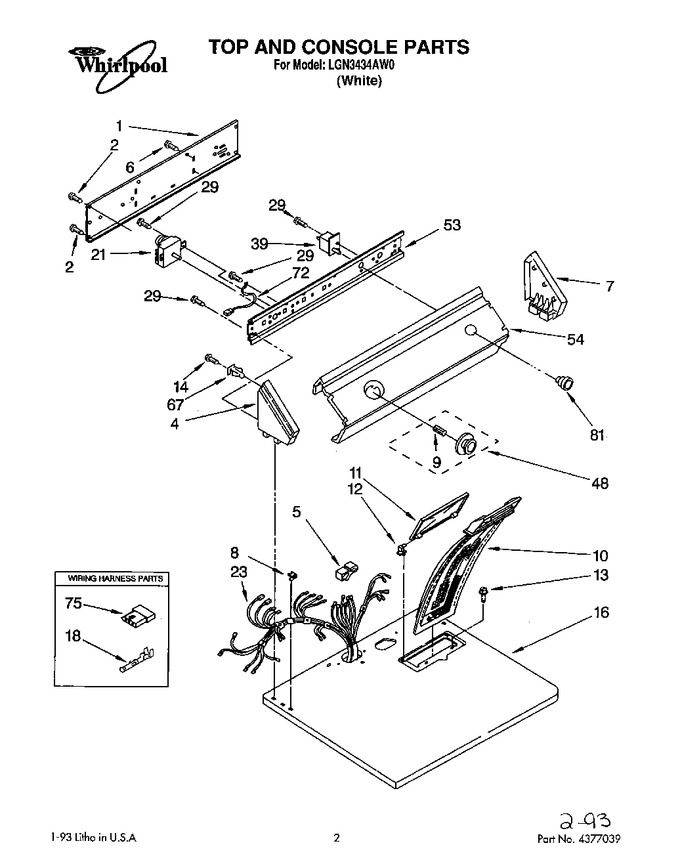

01 - Top And Console, Lit/optional
02 - Cabinet
03 - 694670 Burner
04 - Bulkhead
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3397545 | Panel, Rear Console |
|
- | |||||
| 2 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 7.86 | ||||
| 4 | 3358533 | Cap, End (l.h.) |
|
- | |||||
| 5 | 689180 | Clip, Retainer |
|
- | |||||
| 6 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 7 | 3358518 | Cap, End (r.h.) |
|
- | |||||
| 8 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 9 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 7.72 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | WP388326 | Screw, Console (Replaces: 3353145) |
|
$ 8.11 | |||||
| 16 | 3396022 | Top (white) |
|
- | |||||
| 18 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 21 | 3396216 | Timer Assembly, 60 Hz. |
|
- | |||||
| 23 | 3396220 | Harness, Wiring |
|
- | |||||
| 29 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.50 | |||||
| 39 | 692021 | (alt.) |
|
- | |||||
| 39 | 660936 | Switch, Push-to-start |
|
- | |||||
| 39 | 346364 | (alt.) |
|
- | |||||
| 48 | WP3957752 | Timer Knob & Dial (Replaces: 3396145) |
|
$ 53.96 | |||||
| 53 | 3396293 | Bracket, Control |
|
- | |||||
| 54 | 3397144 | Panel, Control |
|
- | |||||
| 67 | 689559 | Nut, Push-on (4) |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 75 | 691707 | Receptacle, Latching (3-way) (uses Terminal 94614) |
|
- | |||||
| 81 | 3396160 | Knob, Push To Start |
|
- | |||||
| LIT3395325 | Instructions, Installation |
|
- | ||||||
| LIT677818 | Dryer |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| LIT4377039 | List, Service Parts |
|
- | ||||||
| LIT3396296 | Use & Care Guide |
|
- |
