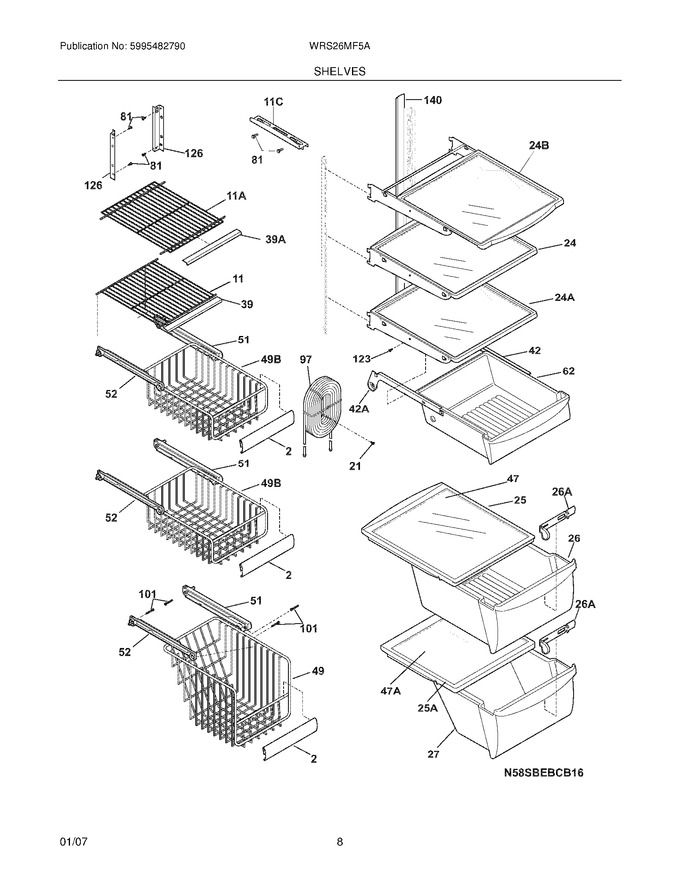

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241510604 | Trim-basket |
|
$ 74.08 | |||||
| 11 | 241657602 | Shelf,flip Up ,wire |
|
$ 96.06 | |||||
| 21 | 218843801 | Screw,hx Wshr Hd Sems ,8-15a X 0.625 ,21 (Replaces: 5304455658) |
|
$ 16.01 | |||||
| 24 | 240355236 | Shelf-``spill-safe``,fixed |
|
- | |||||
| 25 | 240350702 | Cover-crisper Pan,upper |
|
Immediately | $ 46.58 | ||||
| 26 | 240351061 | Pan-crisper,upper (Replaces: 240351016) |
|
Immediately | $ 122.23 | ||||
| 27 | 240351212 | Pan-crisper,lower |
|
- | |||||
| 39 | 240430706 | Trim-shelf,11.21`` ,front |
|
$ 81.85 | |||||
| 42 | 240356501 | Track,meat Pan Hanger ,rh |
|
Immediately | $ 63.00 | ||||
| 47 | 240443328 | Insert-pan Cover,glass |
|
- | |||||
| 49 | 240530402 | Basket-sliding |
|
$ 232.16 | |||||
| 51 | 240343002 | Hanger-basket,rh |
|
$ 72.47 | |||||
| 52 | 240343102 | Hanger-basket,lh |
|
$ 77.52 | |||||
| 62 | 240342811 | Pan-meat |
|
- | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 15.75 | |||||
| 97 | 240545302 | Water Tank Assy,coiled Tubing ,front Filter (Replaces: 240545303) |
|
$ 311.85 | |||||
| 101 | 218493101 | Screw,hex Washer Head ,8-18ab X 1-3/4 |
|
$ 14.96 | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 7/16 |
|
$ 16.54 | |||||
| 126 | 241674401 | Channel,auger Mtg ,lh |
|
$ 52.76 | |||||
| 126 | 241674402 | Channel,auger Mtg ,rh |
|
$ 48.04 | |||||
| 140 | 240430501 | Channel,wtr Tube Cover |
|
$ 108.68 | |||||
| 11A | 241657514 | Shelf,fixed ,upper ,freezer (Replaces: 241657504) |
|
- | |||||
| 11C | 240324101 | Shelf-pizza |
|
$ 66.57 | |||||
| 24A | 240355235 | Shelf-``spill-safe``,fixed |
|
- | |||||
| 24B | 240350122 | Shelf-``spill-safe``,sliding ,(3) |
|
- | |||||
| 25A | 240350903 | Cover-crisper Pan,lower (Replaces: 240350902) |
|
$ 102.21 | |||||
| 26A | 240362204 | Control-humidity |
|
- | |||||
| 39A | 240430702 | Trim-shelf,12.39`` ,front |
|
$ 21.89 | |||||
| 42A | 240349701 | Hanger-meat Pan,lh |
|
Immediately | $ 64.58 | ||||
| 42A | 240349901 | Block-meat Pan Rail,lh |
|
$ 67.01 | |||||
| 42A | 240350001 | ยท Spring-meat Pan Rail |
|
$ 76.55 | |||||
| 47A | 240350603 | Insert-pan Cover,glass |
|
Immediately | $ 128.36 | ||||
| 49B | 240530502 | Basket-sliding,upper ,half |
|
$ 201.08 | |||||
| NI | 240349801 | Clip-slide,pan-crisper |
|
$ 22.75 | |||||
| NI | 240362101 | Clip-slide,cover-crisper |
|
$ 52.25 | |||||
| NI | 241619905 | Energy Guide |
|
- |
